I N S T A L L A T I O N I N S T R U C T I O N S
Universal Large Interface Bracket
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
PSBU
PSBU Installation Instructions
2
DISCLAIMER
Milestone AV Technologies, and its affiliated corporations and
subsidiaries (collectively, “Milestone”), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
®Chief is a registered trademark of Milestone AV Technologies.
All rights reserved.
DEFINITIONS
MOUNTING SYSTEM: A MOUNTING SYSTEM is the
primary Chief product to which an accessory and/or component
is attached.
ACCESSORY: AN ACCESSORY is the secondary Chief
product which is attached to a primary Chief product, and may
have a component attached or setting on it.
COMPONENT: A COMPONENT is an audiovisual item
designed to be attached or resting on an accessory or mounting
system such as a video camera, CPU, screen, display,
projector, etc.
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
IMPORTANT SAFETY INSTRUCTIONS!
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all accessories are
properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this accessory can result in serious personal injury or
damage to equipment! It is the installer’s responsibility to
make sure the structure to which this accessory is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
accessory.
WARNING:
Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components attached to the PSBU does not exceed 200 lbs
(90.7 kg).
WARNING: Use this accessory only for its intended use as
described in these instructions. Do not use attachments not
recommended by the manufacturer.
WARNING: Never operate this accessory if it is damaged.
Return the accessory to a service center for examination and
repair.
WARNING: Do not use this product outdoors.
IMPORTANT ! : The PSBU interface brackets are designed
to be mounted to a UL-Listed Chief large flat panel mount:
• PCM2000 large single ceiling mount with angled
column
• PCS2000 large single ceiling mount
• PDC2000 large dual ceiling mount
•PNRIW Series large in-wall swing arm wall mount
--SAVE THESE INSTRUCTIONS--
PSBU Installation Instructions
4

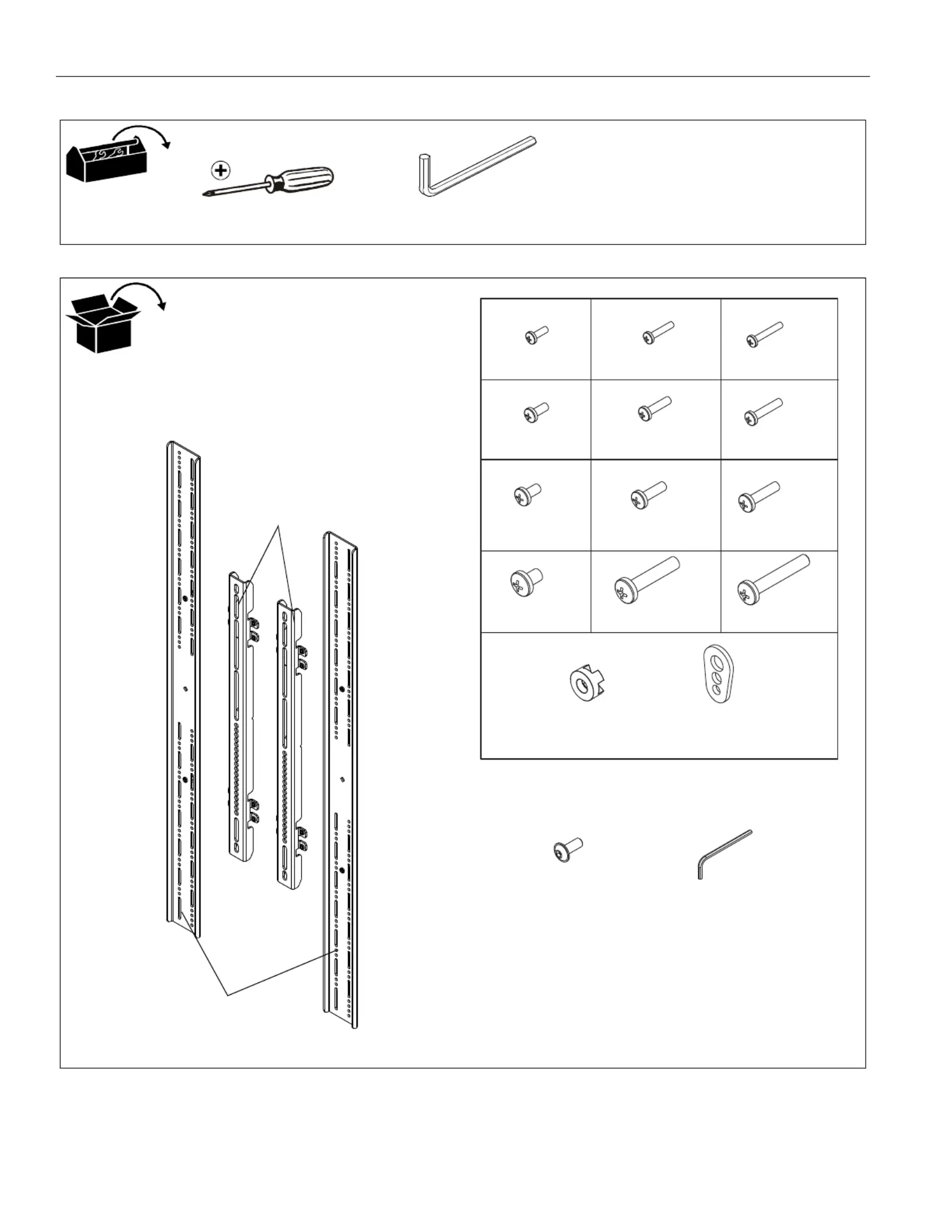

TOOLS REQUIRED FOR INSTALLATION
PARTS
1/8”
(included)
R (2)
J (4)
I (4)
C (4)
G (4)
F (4)
E (4)
D (4)
A (4)
Q (2)
K (4)
H (4)
L (4)
P (1)
1/8”
Hardware Kit
Bag A Bag B Bag C
Bag D Bag E Bag F
Bag G Bag H Bag I
Bag J Bag K Bag L
Bag M
B (4)
M4 x 20mm
#10-24 x 1/2"
M4 x 25mm
M5 x 12mm M5 x 20mm M5 x 25mm
M6 x 12mm M6 x 20mm M6 x 25mm
M8 x 12mm M8 x 20mm M8 x 30mm
[Vertical bracket]
[Horizontal bracket]
M4 x 12mm
MA (8)
[Nesting spacer]
MB (4)
[Universal spacer]
N (8)
