Sivu 1/9
Studio Force II Plus Plus 72TM, 48TM, 12TM QSG V1.0 QSG P/N: 1641-0903

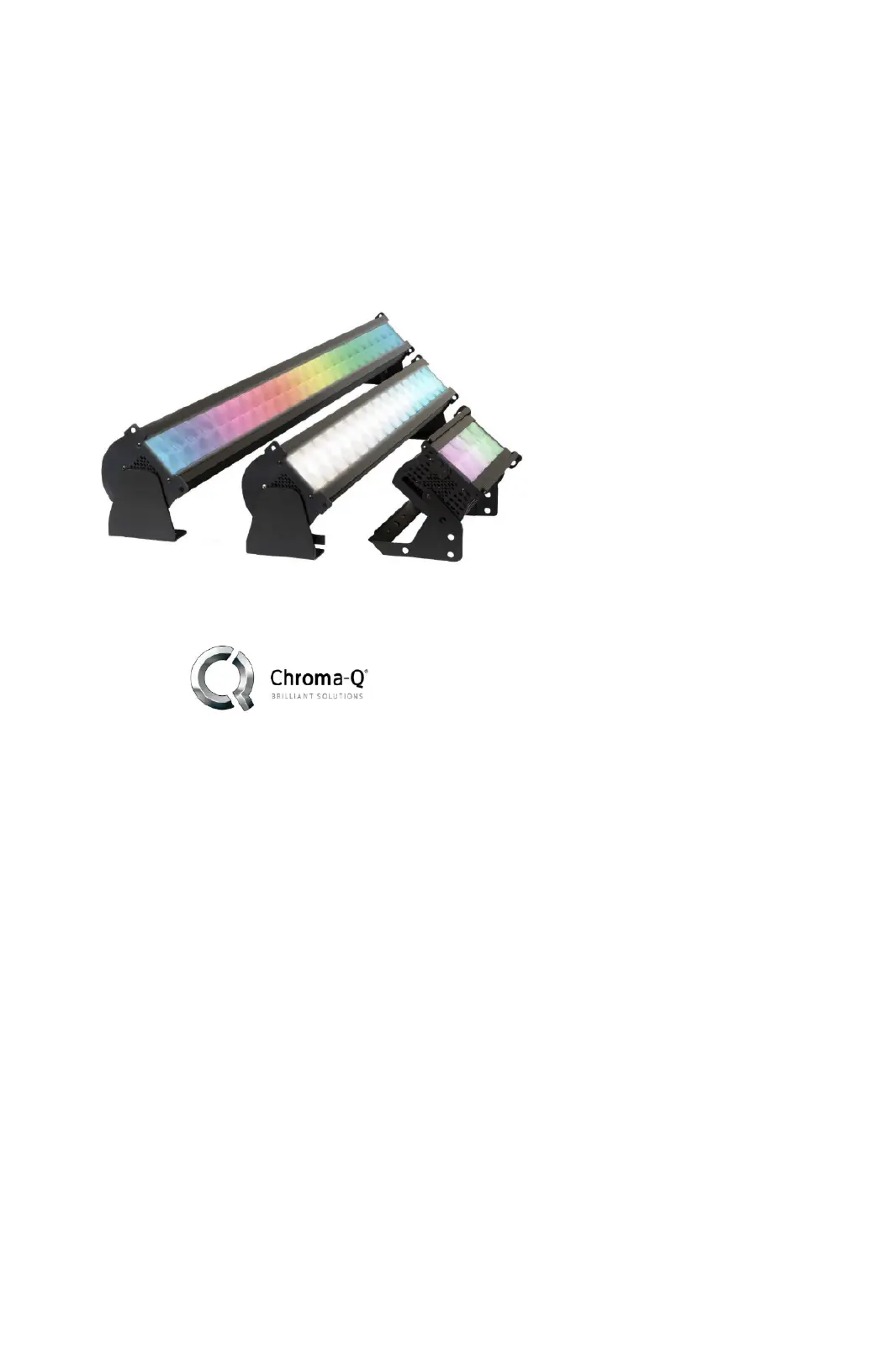

Quick Start Guide
Chroma-Q®
Studio Force II Plus 72™,
Studio Force II Plus 48™,
Studio Force II Plus 12™
For a full product manual please visit www.chroma-q.com
Part Number: CQ1 -5000, CQ1 -5100, CQ1 - 641 641 641 5500
CQ1 -4000, CQ1 -4100, CQ1 -4500, 641 641 641
CQ1 -1150, CQ1 -1650, CQ1 -1250/ 652 652 652
Model: 1 -5000, 1 -5100, 1 - 641 641 641 5500
1 -4000, 1 -4100, 1 -4500, 641 641 641
1 -1150, 1 -1650, 1 -1250/ 652 652 652
Software Version: Addressing 4.0, Engine 4.0
Studio Force II Plus Plus 72TM, 48TM, 12TM QSG V1.0 QSG P/N: 1641-0903
1. Overview
The Chroma-Q® Studio Force II Plus LED batten range is a powerful lineup for professional ™
lighting industry, specically designed for TV Broadcast and lm applications but also performs
particularly well in other situations demanding high quality tunable white light such as touring key
lights, exhibitions, corporate events and theatre lighting.
In addition, the advanced control management technologies to evenly washing large areas, units
are suitable for a wide range of, lighting applications, including key-lighting, up-lighting,
backlighting and wash applications, together give you a radically increased color palette, a high
CRI and theatrical grade dimming, all in the same xture. Available in 6 ft/1.8m, 4 ft./1.2m, 1
ft./0.3m versions.
The Studio Force II Plus features built-in power supplies which can operate as a standalone ™
unit or remotely controlled through ANSI E1.11 USITT DMX 512-A protocol. via a cable or a Lumen
Radio wireless connection, when using the optional radio module.
2. Safety
Caution
1. This product is for professional use only. It is NOT intended for domestic or
outdoor use.
2. The bright ash of light during power-up and continuous strobe eect may
cause epileptic seizure.
3. This product must be used with safety cable.
3. Cabling
The Studio Force II Plus use Neutrik powerCon TRUE1 connectors for power input and through. ™
The DMX control data input and through connections from an external control console are via XLR
5-pin connectors. The chassis are ground bonded.
Note: The maximum number of Studio Force II Plus xtures running o a single power input 72™
cable is 2 at 120V AC or 4 at 240V AC. The maximum number of Studio Force II Plus 48™ xtures
running o a single power input cable is 3 at 120V AC or 6 at 240V AC. The maximum number of
Studio Force II Plus xtures running o a single power input cable is 12 at 120V AC or 22 at 12™
240V AC. Please refer to ANSI and AWG standards for the maximum data and power cable
lengths.
4. Mounting
The Studio Force II Plus are equipped with built-in adjustable mounting brackets for oor, wall ™
and truss mounting applications. Use the pair of quick release levers for easy tilt adjustment.
Secure the xture with a safety bond through the xing hold that is built into the end plates of the
xture.
5. Orientation
The Studio Force II PlusTM has symmetrical lenses and can be used in any orientation.
6. Optics
“Cyc Lens Border Lens” and “ ” are slide-in optical accessories available to adjust the light
output. Two accessory slots are available for locking. Spring Plungers are pre-installed at the far
ends of both accessory slots to lock in-place the slide-in panels. The height of the spring
plungers, is preset and xed with no need for further adjustment.
7. Control
The control functions, of the Studio Force 72, 48 and 12, are accessed through the touchscreen ™
display on the rear of the xture. For more details on all of the settings, please refer to the user
manual located on the Chroma-Q® website: www.chroma-q.com.
A Focus button is provided on the back of the xture to turn the xture on full for focusing. Press
the button a second time to return to normal operation.
From the Home/Main Menu, press one of the four buttons located at the bottom of the screen to
adjust the user settings
DMX
1. To set the DMX start address, press DMX from the home screen.
2. Enter the DMX start address using the numeric buttons.
3. Press Apply to save.
Studio Force II Plus Plus 72TM, 48TM, 12TM QSG V1.0 QSG P/N: 1641-0903
Mode
There are 5 DMX control modes featuring and 12 grouping options to maximize your
creative control. Access and select control modes and grouping by pressing the Mode
button from the Main Menu. Press Apply once you have selected the settings for your
show.
1. Press the Mode button on the Main Menu.
2. Select your control mode: RGBW, RGB, KHI, HIS, Cine Q.
3. Select your Grouping: (X1, X4, All, od/ev).
4. Press Apply to save the settings.
Setup
Press Setup to access the technical settings for the xture. From the Setup screen,
you can set and/or view the following parameters:
ETC Compatibility: The xture can be set for compatibility with the ETC Color Picker
when using ETC consoles.
DMX Data: View the DMX data being received relevant to the xture.
Fan Speed: Set the fan mode to Quiet, Studio, Live or Live Quiet
Rotate Display: Rotates the display.
Frequency: Allows setting of the PWM frequency from 750Hz to 24kHz. Note that
lower PWMs result in smoother fades
DMX Lost: Selects what happens when the control signal is lost; Hold last look, O,
or plays back a prerecorded Look.
Lock: Locks the screen.
Reset: Provides for xture processor reset to factory, or user recorded settings.
Upload Engine: Provides access to upload software revisions for the light engines.
Fw Version: Displays installed versions of processor and light engine rmware.
DMX Source: Select whether DMX data is being read from a wired or wireless
source.
Eng Temp: Displays the light engine temperatures.
Always remember to press Apply to store the setting **Note:
Looks
From the Looks screen you can record and playback looks
Factory Default Setting
SFII 72
SFII 48
DMX Address
1
1
Foot Print
4ch (1- 4)
4ch (1- 4)
Mode
RGBW x
RGBW x
Lock
Disabled
Disabled
Group
x24
X16
DMX Lost
Last data
Last data
Fan Speed
Live-Quiet
Live-Quiet
Frequency
750Hz
750Hz
Reset
Default
Default
ETC
Disabled
Disabled
8. Grouping Options
Studio Force II PlusTM
oers a powerful, wide variety of grouping options for the individual cells (or
pixels) within each xture Please refer to the manual for more detailed information. A copy of .
the manual can be found at the Chroma-Q® website www.chroma-q.com/support/downloads –
