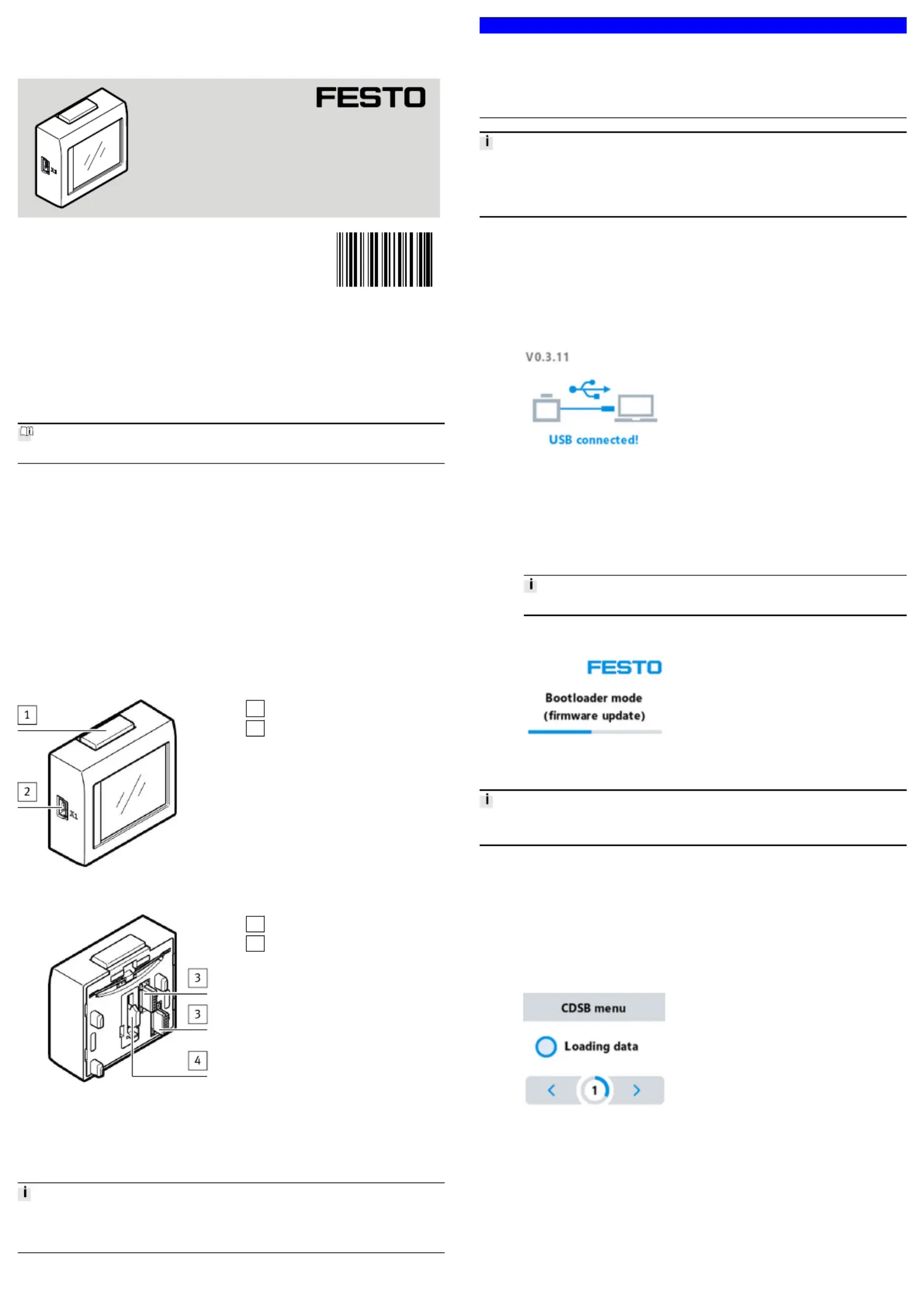

Translation of the original instructions
1 Further applicable documents
All available documents for the product www.festo.com/pk.è
2 Safety
2.1 Safety instructions
– Observe the handling specifications for electrostatically sensitive devices.
2.2 Intended use
The CDSB is used as an operating and display device for the terminals CMMT-AS
and CPX-E-CEC. In combination with the terminal, the touch screen can be used to
set various parameters, to display diagnostic messages and to carry out updates.
3 Service
Contact your regional Festo contact person if you have technical questions
èwww.festo.com.
4 Product overview
1Release button
2USB port (Mini-B)
Fig. 1 Front side
3Terminal-specific interface
4Interlock
Fig. 2 Rear side
5 Operation
5.1 Operation in combination with a PC
The CDSB is detected at the USB port of a PC as a mass storage device.
Depending on the PC operating system, it is only possible to use USB media if the
USB port is enabled.
• Enable USB port.
NOTICE!
Encryption enabled when writing to USB media.
Depending on the PC operating system, encryption is enabled when writing to
USB media. If encryption is enabled during writing, all data on the product is des-
troyed and the product can no longer be used.
• Disable encryption when writing to USB media.
Restoring an encrypted data storage device:
After deactivating encryption, the data storage device can be restored as follows:
• Format the data storage device as FAT32.
• Create a folder with the name Update .
It is possible to update the firmware of the CDSB using the USB port of a PC.
When connected to the PC, there is no menu that can be operated using the touch
screen.
CDSB firmware update
1. Connect the operator unit to the USB port of the PC.
ÄIf the connection is successful, the following display appears.
The firmware version for the CDSB is shown at the top left of the display.
Fig. 3 USB connection
2. Download the latest firmware for the CDSB www.festo.com/sp.è
3. Unzip the downloaded file and copy the *.bin update file to the Update folder.
4. Disconnect the CDSB from the USB port.
5. Reconnect the CDSB to the USB port.
ÄThe firmware update will start automatically.
The firmware update may take up to 2 minutes.
Fig. 4 Firmware update
If the connection is interrupted, the update will restart automatically when the
connection is re-established.
6. When the update is complete, the CDSB will automatically restart.
ÄThe CDSB is now ready for use with the updated firmware.
5.2 Operation in combination with a terminal
Connecting to a terminal
1. Remove the blind plate from the terminal.
2. Hold down the release button on the top of the CDSB.
3. Connect the CDSB to the terminal interface and let go of the release button.
ÄData is loaded from the terminal.
Fig. 5 Connecting to a terminal
4. If the connection is successful, the device-specific start screen appears, and
the available menus can be selected.
General operating steps
Touch the corresponding areas to scroll through the menu or modify settings. The
following settings can be modified, or information read out for all terminals:
– Display brightness
– Display alignment
– Display calibration
– Information on the hardware and firmware version of the product
8088693
CDSB-A1
Operator unit
8088693
2018-06
[8088695]
Instructions|Operating, Installation
Festo SE & Co. KG
Ruiter Straße 82
73734 Esslingen
Germany
+49 711 347-0
www.festo.com

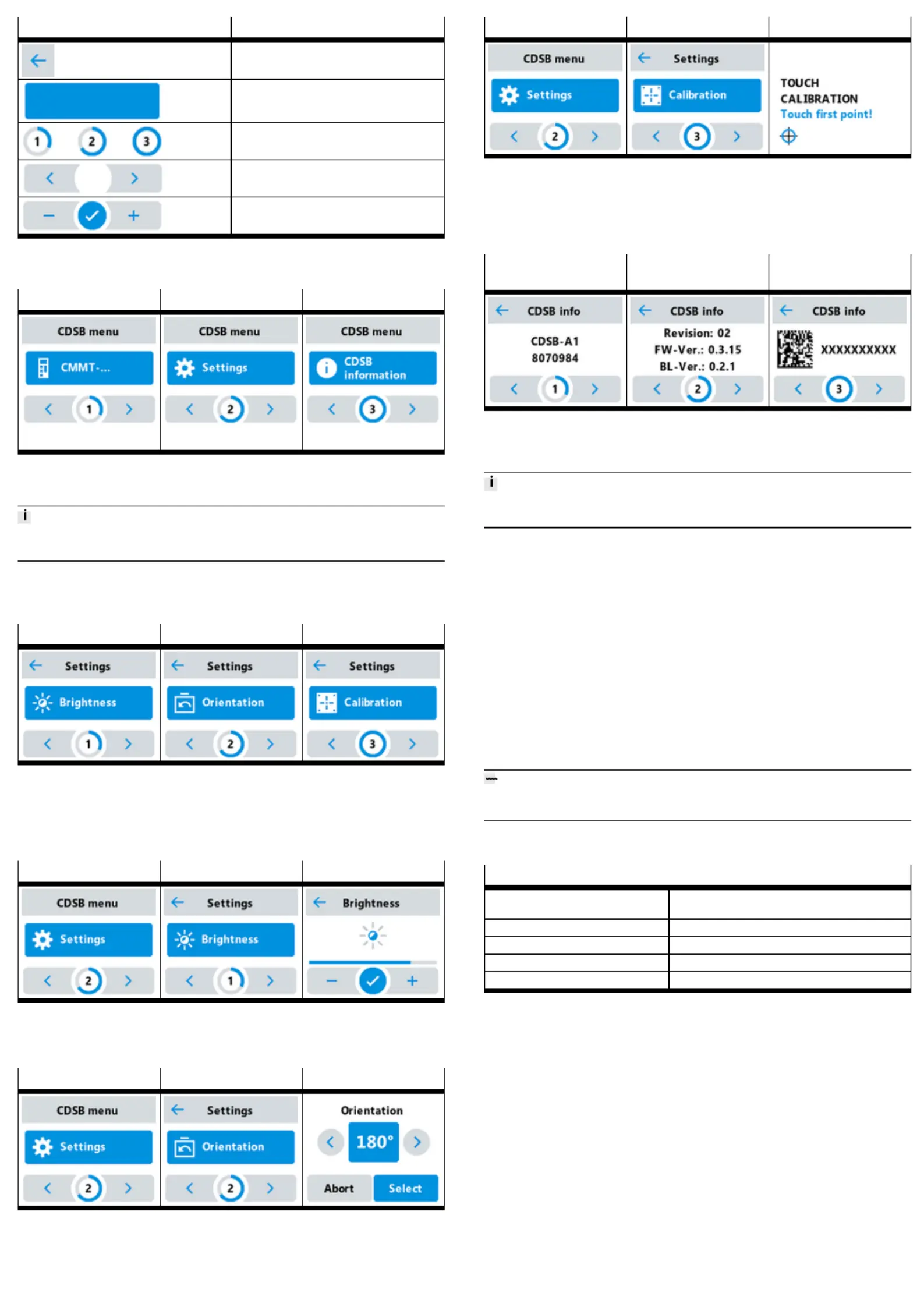

Symbol Function/description
Return one menu level up.
Select the displayed main menu or submenu.
Display the menu level for the current menu
item.
Switch between available screens within a menu
level.
Change and confirm settings.
Tab. 1 Control elements
Overview of main menu
Main menu 1 Main menu 2 Main menu 3
Device-specific start screen
(e.g.CMMT)
Tab. 2 Overview of main menu
Device-specific menu items
The device-specific menus are described in the relevant document for the termin-
al.
Overview of menu Settings
The options in the Settings menu relate to the CDSB and do not affect the basic
device.
Menu Settings 1 Menu Settings 2 Menu Settings 3
Tab. 3 Overview of menu Settings
Setting the brightness
This menu is used to set and save the brightness of the background illumination.
If no input is made for over a minute, the screen brightness dims automatically.
On touching the screen, it will return to the set brightness.
Main menu 2 Menu Settings 1 Submenu Brightnessè è
Tab. 4 Setting the brightness
Setting the alignment
This menu can be used to rotate the display through 180º.
Main menu 2 Menu Settings 2 Submenu Orientationè è
Tab. 5 Setting the alignment
Calibrating the display
This menu can be used to recalibrate the screen if the input areas have moved.
Main menu 2 Menu Settings 3 Submenu Calibrationè è
Tab. 6 Calibrating the display
Displaying the device information
Information specific to the CDSB can be retrieved using this menu. Further inform-
ation about the device can be obtained from the Festo Support Portal using the
Product Key.
Submenu
Device information 1
Submenu
Device information 2
Submenu
Device information 3
Tab. 7 Displaying the device information
6 Cleaning
To prevent accidental operation, disconnect the CDSB from the terminal before
cleaning.
Clean the CDSB with a soft cloth. If necessary, using a suitable flat-screen clean-
ing agent.
7 Malfunctions
7.1 Fault clearance
If it is no longer possible to operate the CDSB using the display:
1. Unplug the CDSB from the terminal.
2. Reconnect the CDSB to the terminal.
ÄThe CDSB is functional again.
If it still does not work: 3 Serviceè
7.2 Repair
Repair or maintenance of the product is not envisaged. If necessary, replace the
complete product.
8 Disposal
ENVIRONMENT!
Send the packaging and product for environmentally sound recycling in accord-
ance with the current regulations www.festo.com/sp.è
9 Technical data
CDSB-A1
USB port USB 2.0 Mini-B; Full Speed; 1MB/s
Permissible cable length max. 3m
CE marking See declaration of conformity www.festo.com/spè
Ambient temperature [°C] 0…60
Degree of protection IP20
Dimensions [mm] 50 x 45 x 19.6
Tab. 8 Technical data
