Sivu 1/29

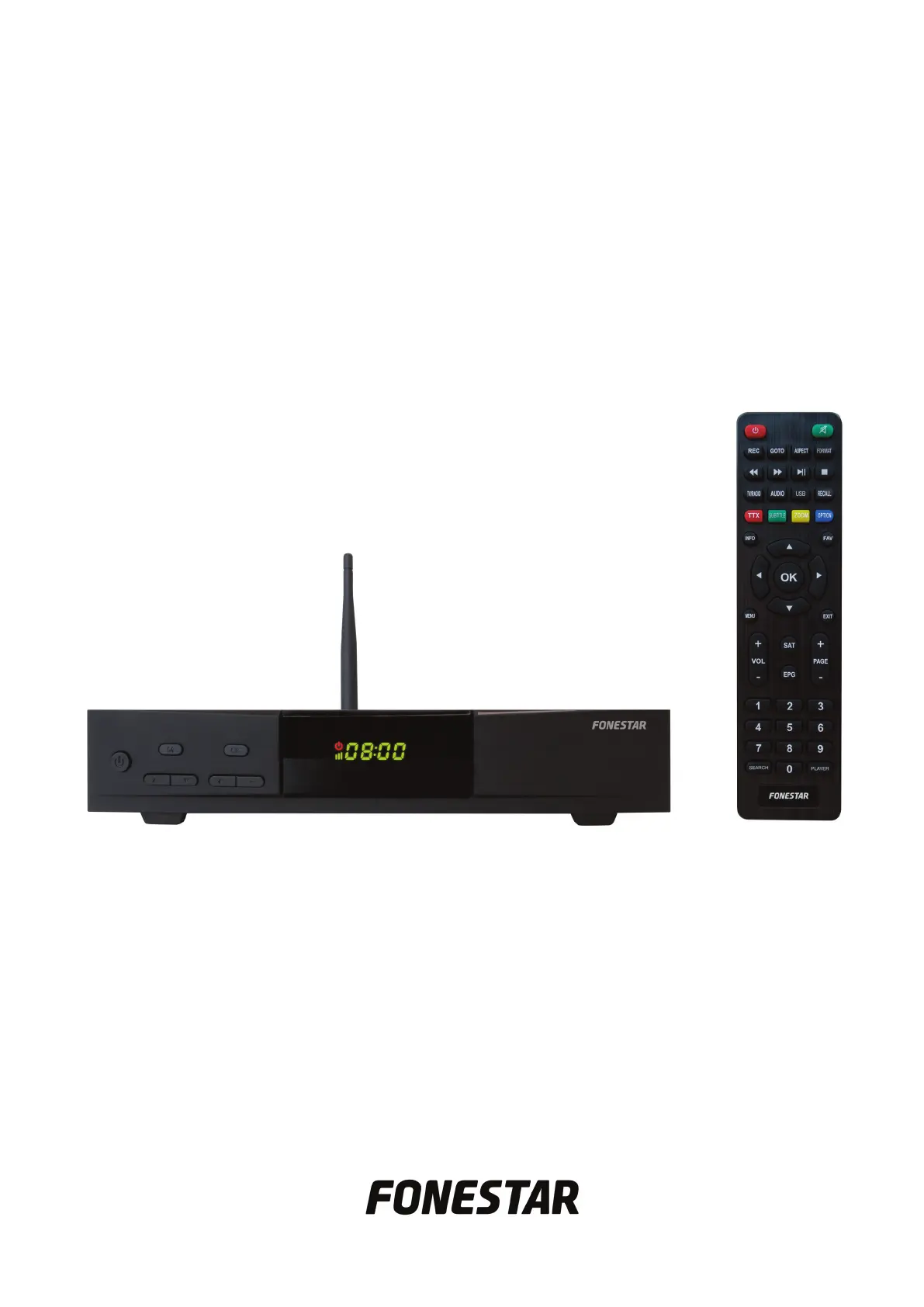

RDS-585WHD
HD SATELLITE RECEIVER
RECEPTOR SATÉLITE HD
RECEPTEUR SATÉLLITE HD
RECETOR SATÉLITE HD
INSTRUCTION MANUAL/MANUAL DE INSTRUCCIONES/
MODE D’EMPLOI/MANUAL DE INSTRUÇOES
DESCRIPTION
- HD satellite receiver.
- DVB-S2/MPEG-4/MPEG-2.
- HD output formats: 1080p,1080i, 720p, 576p and 480p.
- Personal video recorder (PVR with time shift function).
- Multimedia player.
- USB port 2.0.
- Wi-Fi and ethernet.
- Web applications.
- DiSEqC 1.0/1.1/1.2/1.3 (USALS).
- Multilingual menu.
- 4:3 and 16:9 screen format
- Eectronic programme guide (EPG)..
- Automatic and manual scan.
- Software upgrading through USB.
- Remote control.
CONTROLS AND FUNCTIONS
FRONT PANEL
1.- : button to switch the receiver on/off.q
2.- : displays the main menu on the screen. M
3.- confirmation key. OK:
4.- / : buttons to change channel. w s
5.- : volume adjustment buttons. +/-
REAR PANEL
6.- : composite video output, RCA connector.VIDEO
7.- stereo audio output, 2 x RCA connectors. AUDIO L/R:
8.- :parabolic aerial signal tuner input (LNB). Female F connector. LNB IN
9.- : local area network connection, RJ-45 connector. ETHERNET
10.- Wi-Fi aerial. ANT:
11.- HDMI: high definition audio and video output (HD) to connect to a television with digital input.Output
resolution selectable by menu.
12.- : USB port for connection of USB storage devices and for updating of software. USB
13.- Power supply for mains adapter provided.
NOTE: disconnect and put away the mains adapter when the device is not going to be used for a prolonged
period of time.
- 2 -
EN

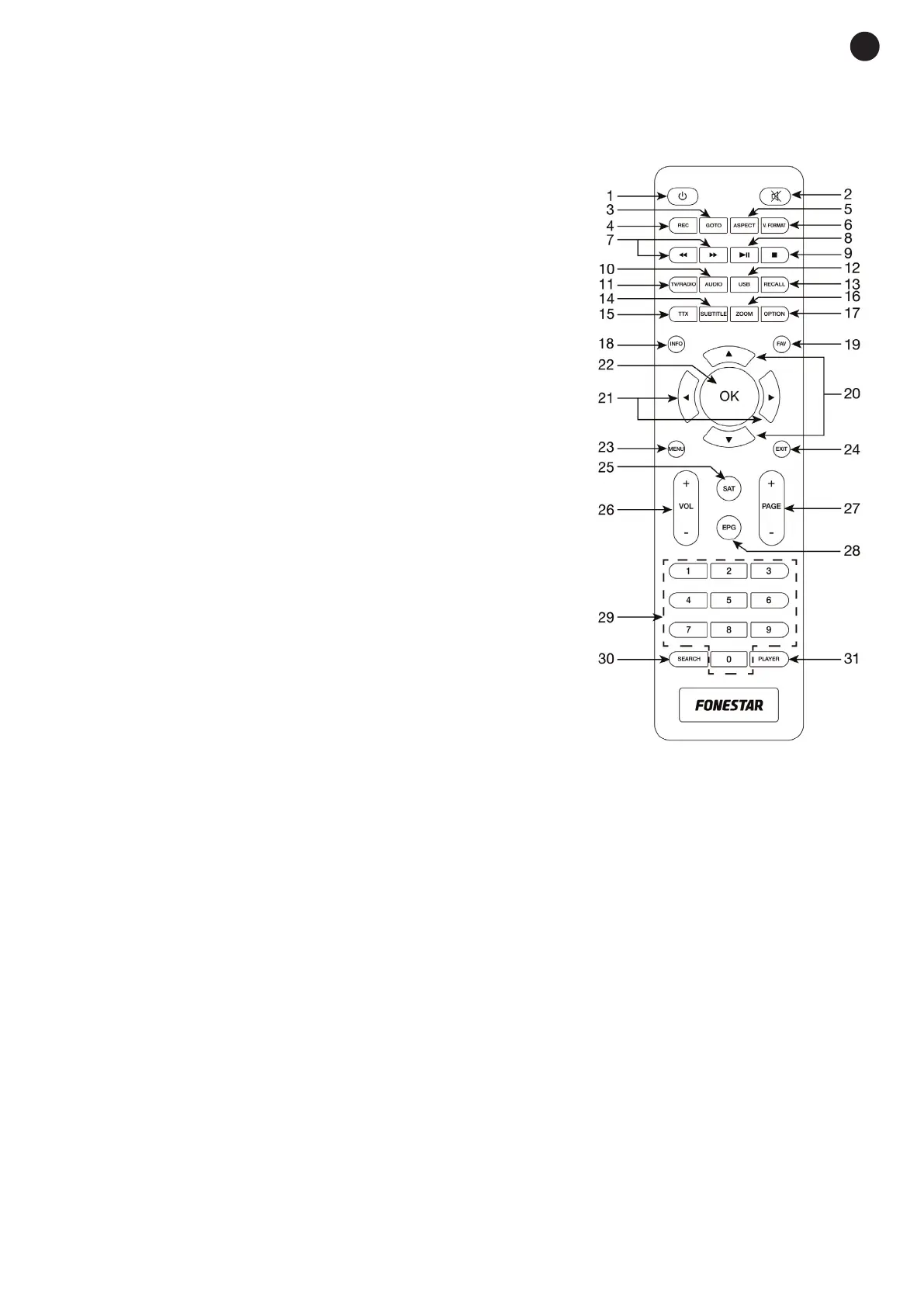

REMOTE CONTROL
1.- on/standby mode. POWER:
2.- : activates/deactivates the audio output. MUTE
3.- GOTO: to go to an exact point in playback. Use the number
buttons to enter the exact time.
4.- REC: allows recording to start of the channel being watched
at that moment.
5.- : allows the aspect relationship to be changed. ASPECT
6.- : allows you select the screen resolution.V.FORMAT
7.- / : forwards and rewinds playback.5 6
8.- : cstarts and pauses playback.12
9.- : stops playback or recording.3
10.- AUDIO: allows audio language to be selected among those
available in the channel.
11.- TV/RADIO: allows selection between tuned TV or radio
channels.
12.- USB: allows you to operate the connected external hard drive.
13.- : returns to the last seen channel. RECALL
14.- : displays the subtitles(when they are available). SUBTITLE
15.- displays teletext. TTX:
16.- ZOOM: increases/decreases the zoom of the selected image.
17.- : accesses the options menu. OPTION
18.- : displays current channel information. INFO
19.- : displays favourite channel list. FAV
20.- / w s: changes to the next or previous channel, move up and
down the menu options.
21.- : volume control, move left and right in the menu options. a d/
22.- OK: confirms the action selected in the menus. When a TV
channel is being watched, it displays a window with a list of
channels to select a channel.
23.- : displays the main menu on the screen. MENU
24.- : exits the menu on the screen saving the configuration. EXIT
25.- : displays the list of satellites on the screen. SAT
26.- : adjusts the volume. +VOL-
27.- : forwards/rewinds pages when the list of channels is displayed on the screen. -PAGE+
28.- displays the Electronic Programme Guide. EPG:
29.- : number buttons. 0-9
30.- : allows you to search among the satellite channels. SEARCH
31.- : accesses the media player menu. PLAYER
ACCESSORIES:
- Batteries for the remote control.
- 3 -
