Sivu 1/16

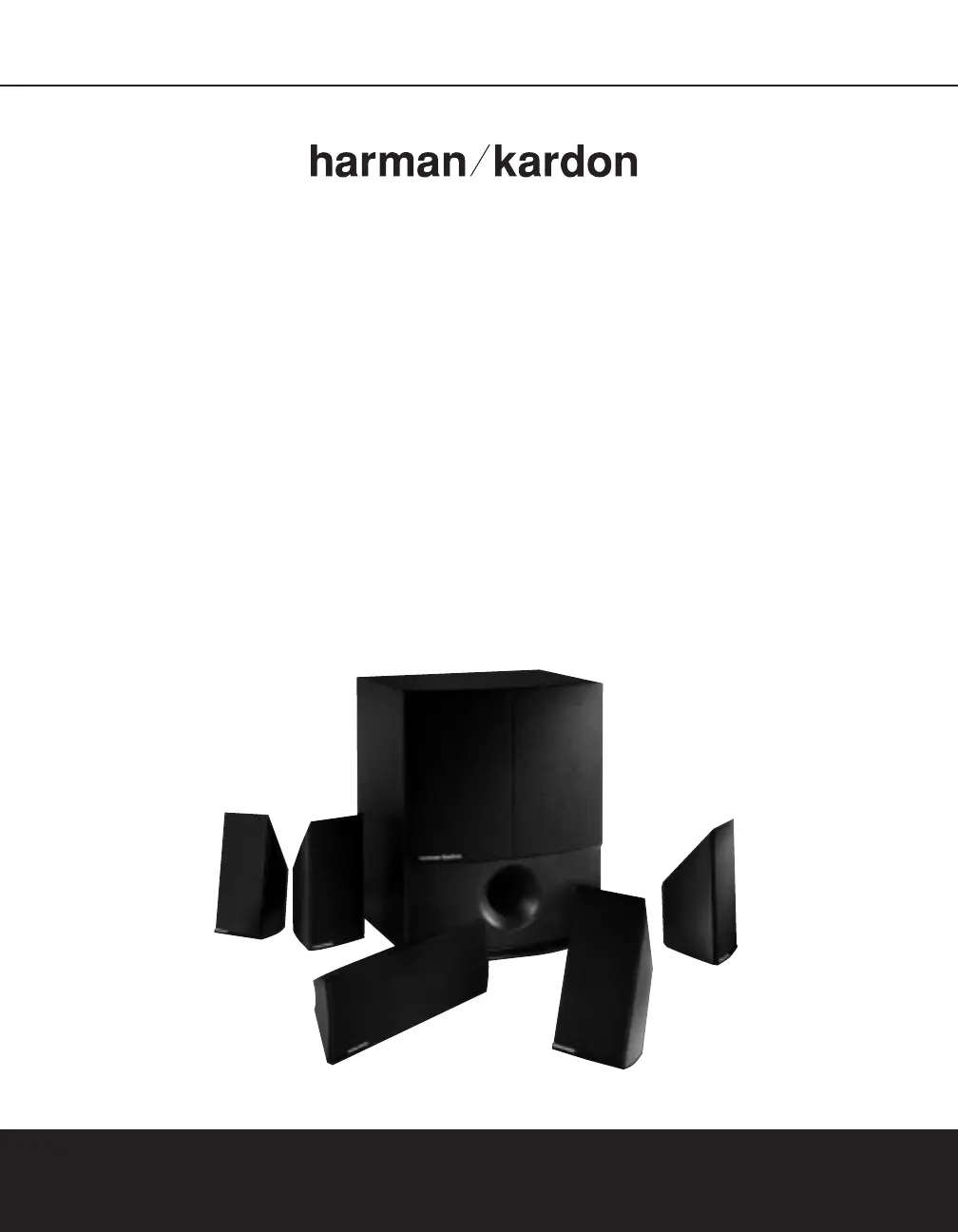

HKTS 12
HOME THEATER SPEAKER SYSTEM
OWNER’S MANUAL
Power for the Digital Revolution.
®
®
2 TABLE OF CONTENTS
HKTS 12 HOME THEATER SPEAKER SYSTEM
3Safety Information
4Introduction
4Included
5SUB-TS12 Subwoofer Amplifier Panel Controls and Connections
7Speaker Placement
7Color-Coding System
8Mounting Options
9Speaker Connections
9Speaker-Level Connection Guide
10 Dolby Digital or DTS (or Other Digital Surround Mode) Connection
11 Dolby Pro Logic (Non-Digital) – Line Level
12 Dolby Pro Logic (Non-Digital) – Speaker Level
13 Operation
13 Volume
13 Additional Bass Adjustments
14 Troubleshooting
15 Specifications
Typographical Conventions
In order to help you use this manual, certain conventions have been used.
EXAMPLE – (bold type) indicates a specific control or rear-panel connection on the SUB-TS12 subwoofer
EXAMPLE – (OCR type) indicates a control or switch position on the SUB-TS12 subwoofer
¡– (number in a circle) indicates a rear-panel control or connection on the SUB-TS12 subwoofer
SAFETY INFORMATION 3
SAFETY INFORMATION
Read First! Important Safety Precautions!
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accor-
dance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves or other apparatus (including ampli-
fiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades with
one wider than the other. A grounding-type plug has two
blades and a third grounding prong. The wide blade or
the third prong is provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched, particularly at plugs, convenience receptacles
and the point where they exit from the apparatus.
11. Only use attachments/accessories
specified by the manufacturer.
12. Use only with the cart, stand, tripod,
bracket or table specified by the manufacturer or sold
with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid
injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been dam-
aged in any way, such as when the power-supply cord or
plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed
to rain or moisture, does not operate normally or has
been dropped.
15. Do not use attachments not recommended by the
product manufacturer, as they may cause hazards.
16. This product should be operated only from the type
of power source indicated on the marking label. If you are
not sure of the type of power supply to your home, con-
sult your product dealer or local power company. For
products intended to operate from battery power or other
sources, refer to the operating instructions.
17. If an outside antenna or cable system is connected to
the product, be sure the antenna or cable system is
grounded so as to provide some protection against volt-
age surges and built-up static charges. Article 810 of the
National Electrical Code, ANSI/NFPA 70, provides infor-
mation with regard to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an
antenna discharge unit, size of grounding conductors,
location of antenna-discharge unit, connection to ground-
ing electrodes, and requirements for the grounding elec-
trode. See Figure A.
18. An outside antenna system should not be located in
the vicinity of overhead power lines or other electric light
or power circuits, or where it can fall into such power
lines or circuits. When installing an outside antenna sys-
tem, extreme care should be taken to keep from touching
such power lines or circuits, as contact with them might
be fatal.
19. Do not overload wall outlets, extension cords or inte-
gral convenience receptacles, as this can result in a risk
of fire or electric shock.
20. Never push objects of any kind into this product
through openings, as they may touch dangerous voltage
points or short-out parts that could result in a fire or elec-
tric shock. Never spill liquid of any kind on the product.
21. Do not attempt to service this product yourself, as
opening or removing covers may expose you to danger-
ous voltage or other hazards. Refer all servicing to quali-
fied service personnel.
22. When replacement parts are required, be sure the
service technician has used replacement parts specified
by the manufacturer or that have the same characteristics
as the original part. Unauthorized substitutions may result
in fire, electric shock or other hazards.
23. Upon completion of any service or repairs to this
product, ask the service technician to perform safety
checks to determine that the product is in proper operat-
ing condition.
24. The product should be mounted to a wall or ceiling
only as recommended by the manufacturer.
Antenna Lead-In Wire
Ground Clamp
Antenna Discharge Unit (NEC Section 810-20)
Grounding Conductors (NEC Section 810-21)
Electric Service Equipment
Ground Clamps
Power Service Grounding Electrode System
(NEC Art 250, Part H)
Figure A.
Example of Antenna Grounding as per
National ElectricalCode ANSI/NFPA 70
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: To prevent electric shock,
do not use this (polarized)
plug with an extension cord,
receptacle or other outlet
unless the blades can
be fully inserted to
prevent blade exposure.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
dangerous voltage within the product s
enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
