Sivu 1/8
CASCADE™
I CNFINITY ASCADE™S SPEAKER YSTEMS
Owner’s Guide
Model Five
Model Seven
Model Nine
Model Three V
Model Three C
I CNFINITY ASCADE™SERIES
The Infinity Cascade Series of loudspeakers continues Infinity’s long-
standing commitment to accurate sound reproduction. Our patent-pending
Maximum Radiating Surface™(MRS™
) technology, patented Ceramic Metal
Matrix Diaphragm (CMMD®) drivers, precision dividing networks and rigid,
well-braced enclosures, along with our newly developed, patent-pending
Constant Acoustic Impedance™(CAI™) waveguide, combine to deliver
uncompromised performance in any stereo or multichannel home theater
system. In addition, Cascade Series speakers are magnetically shielded for
safe placement adjacent to a television.
UNPACKING THE SPEAKERS
If you suspect damage from transit, report it immediately to your dealer.
Keep the shipping carton and packing materials for future use.
WHAT’S NCLUDEDI
Model Nine
Model Seven
Model Five
Model Three V
Model Three C
Grille
Foot
Cleats
1/4"-20 Screws
Wall
Bracket
1/4"-20 Screws
Grille Pedestal
Wall
Bracket
Cleats
Grille Pedestal
Wall
Bracket
Cleats
1/4"-20 Screws
Grille Base
Spike Kit
#8 Screw
Grille Base
Spike Kit
#8 Screw
2CASCADE SPEAKER SYSTEMS
3
CASCADE SPEAKER SYSTEMS
PLACEMENT
Stereo
Before deciding where to place your Cascade speakers, survey your room
and think about placement, keeping the following points in mind and
using Figure 1 as a guide:
• For best results, place the speakers 6' – 8' (1.5m – 2.5m) apart.
• Position each speaker so that the tweeter is approximately at ear level.
• Generally, bass output will increase as the speaker is moved closer to a
wall or corner.
• Refer to “Home Theater”if you also plan to use the speakers for home
theater reproduction.

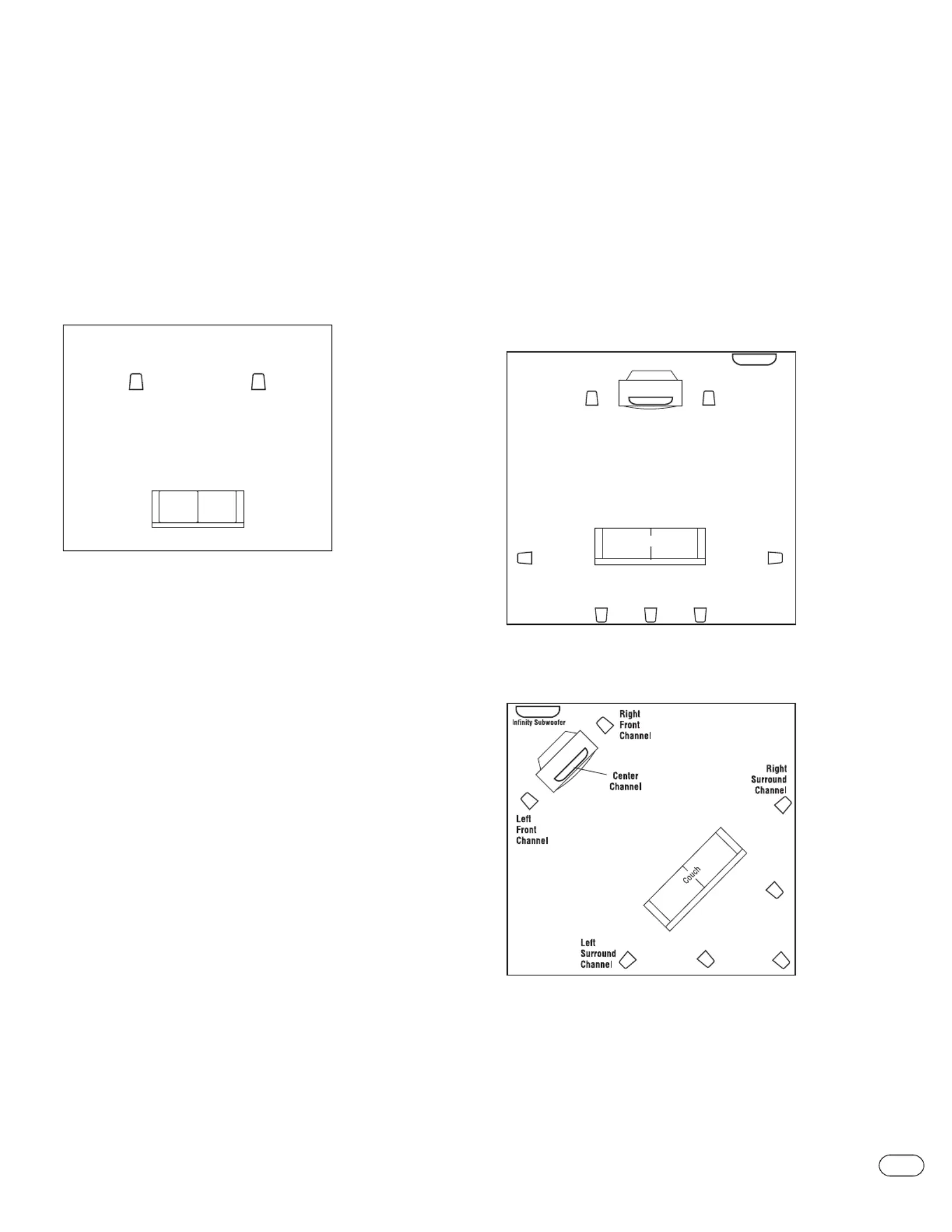

Figure 1. Experiment with speaker placement to obtain the best
bass level and stereo imaging in your room.
Home Theater
For front-channel use, place one speaker on the left and another on the
right, along either side of the television monitor. Since the speakers are
magnetically shielded, you can place them near the TV without worrying
about the magnetic field distorting the TV picture.
For surround-channel use, place speakers on bookshelves or stands
alongside the listening position. Final placement depends on room
acoustics, availability of space and your listening preference
(Figures 2 and 3).
In 6- or 7-channel configurations, place the rear channel(s) behind the
listening position, as shown in Figures 2 and 3.
NOTE: An Infinity powered subwoofer will add impact and realism to both
music and film soundtracks. Contact your Infinity dealer for recommenda-
tions on subwoofer models for your application.
Figure 2.This overhead view shows a typical home theater plan.
Left/right rear channels are for a 7-channel system. Center
rear channel is for a 6-channel system.
Figure 3.This figure shows an alternate layout, which may be
more suitable for some rooms. Left/right rear channels are for a
7-channel system. Center rear channel is for a 6-channel system.
Left Rear
Channel
(optional)
Right Rear
Channel
Center Rear
Channel
Couch
Left
Front
Channel
Left
Surround
Channel
Left Rear
Channel
Right Rear
Channel
Center Rear
Channel
Right
Surround
Channel
Right
Front
Channel
Center
Channel
Infinity Subwoofer
(optional)
Listening Position
Left
Channel
Right
Channel
