INFINITY CLASSIA
™SPEAKER
OWNER’SGUIDE
C255ES
2 INFINITY CLASSIA C255ES
INFINITY CLASSIA™SERIES
The Infinity Classia™series of loudspeakers continues the
longstanding Infinity®commitment to accurate sound reproduction.
Our patented Ceramic Metal Matrix Diaphragm (CMMD®) drivers,
precision dividing networks and rigid, heavily braced enclosures
combine to deliver uncompromised performance in any stereo or
multichannel home theater system.The C255ES is the perfect
surround loudspeaker to complete any home theater system.
UNPACKING THE SPEAKER
If you suspect damage from transit, report it immediately to
your dealer. Keep the shipping carton and packing materials
for future use.
PLANNING YOUR SYSTEM
Choosing Proper Placement and Setup
The Infinity C255ES surround speaker can be used in side-
or rear-channel applications and can be used with the included
shelf stand or can be wall-mounted. Please refer to the placement
and setup method for your application.The first step is to determine
the application for which your C255ES surround speaker will be used.
If you are using the C255ES for surround channels in a
5-channel home theater system or for side channels in
a 6- or 7-channel home theater system (Application 1),
please follow the directions below.
If you are using the C255ES as a rear speaker in a 6- or
7-channel home theater system (Application 2), please follow
the directions on page 3.
The C255ES also possesses the unique capacity to behave as
two distinct loudspeakers from one enclosure.This allows you to
use a single C255ES for both the left and right rear speakers in
a 7-channel system. If you are using the C255ES this way, please
follow the instructions on page 3 (Application 3).
Placement (Application 1)
When using the C255ES for the surround channels in a
5-channel home theater system or for side channels in a 6- or
7-channel home theater system, refer to Figures 1 and 2.
The speakers should be placed perpendicular to or slightly
behind the primary listening location, as shown.
Setting the Surround Mode Configuration Switch
It is generally recommended that the selectable Surround Mode
Configuration switch be set to “Bipole.”This will provide a
large ambient surround-sound field while allowing for precise
localization of sound effects that the filmmaker has placed
in the surround tracks.
If the side walls on which the speaker will be mounted are more
than about 14' (4.3m) from the listening position, setting the
Surround Mode Configuration switch to “Monopole” may offer
improved performance. It is also recommended that the “Monopole”
position be selected if the speakers will be mounted close to a
corner, as shown in Figure 2.
If you are using a receiver/processor with a THX®surround mode
and have selected the THX surround mode, it may be beneficial to
use the “Dipole” setting. This is a matter of personal preference
and may change depending on the individual film soundtrack.
It is also recommended that the “Dipole” setting be used with
older recordings that are only recorded with a Dolby®Pro Logic®
(not the newer Dolby Digital) soundtrack.
Couch
Left
Front
Channel
Left
Surround
Channel
Right
Surround
Channel
Right
Front
Channel
Center
Channel Infinity
Subwoofer
(optional)
Couch
Left
Front
Channel
Left
Surround
Channel
Right
Surround
Channel
Right
Front
Channel
Center
Channel Infinity
Subwoofer
(optional)

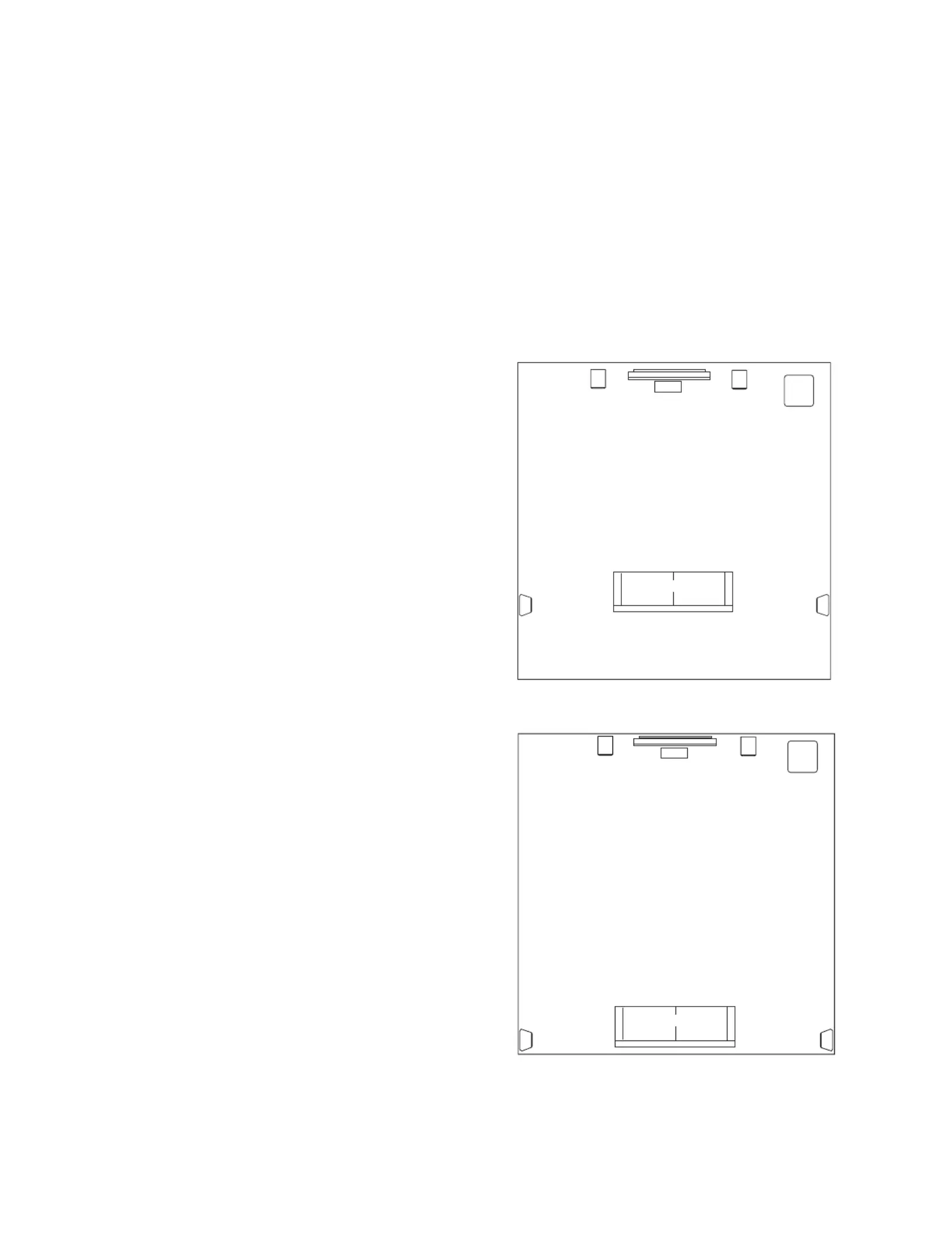

Figure 2.
Figures 1 and 2. These overhead views show
typical home theater plans.
Figure 1.
INFINITY CLASSIA C255ES 3
IMPORTANT NOTE: The set of drivers that share a panel with the
Surround Mode Configuration switch in Figure 3 should be installed
toward the front of the room. It does not matter whether the tweeter
is positioned above or below the woofer. (The Infinity logo can be
removed and inverted for proper orientation.) This will ensure
proper operation and performance, should the Monopole or Dipole
position on the Surround Mode Configuration switch be selected.

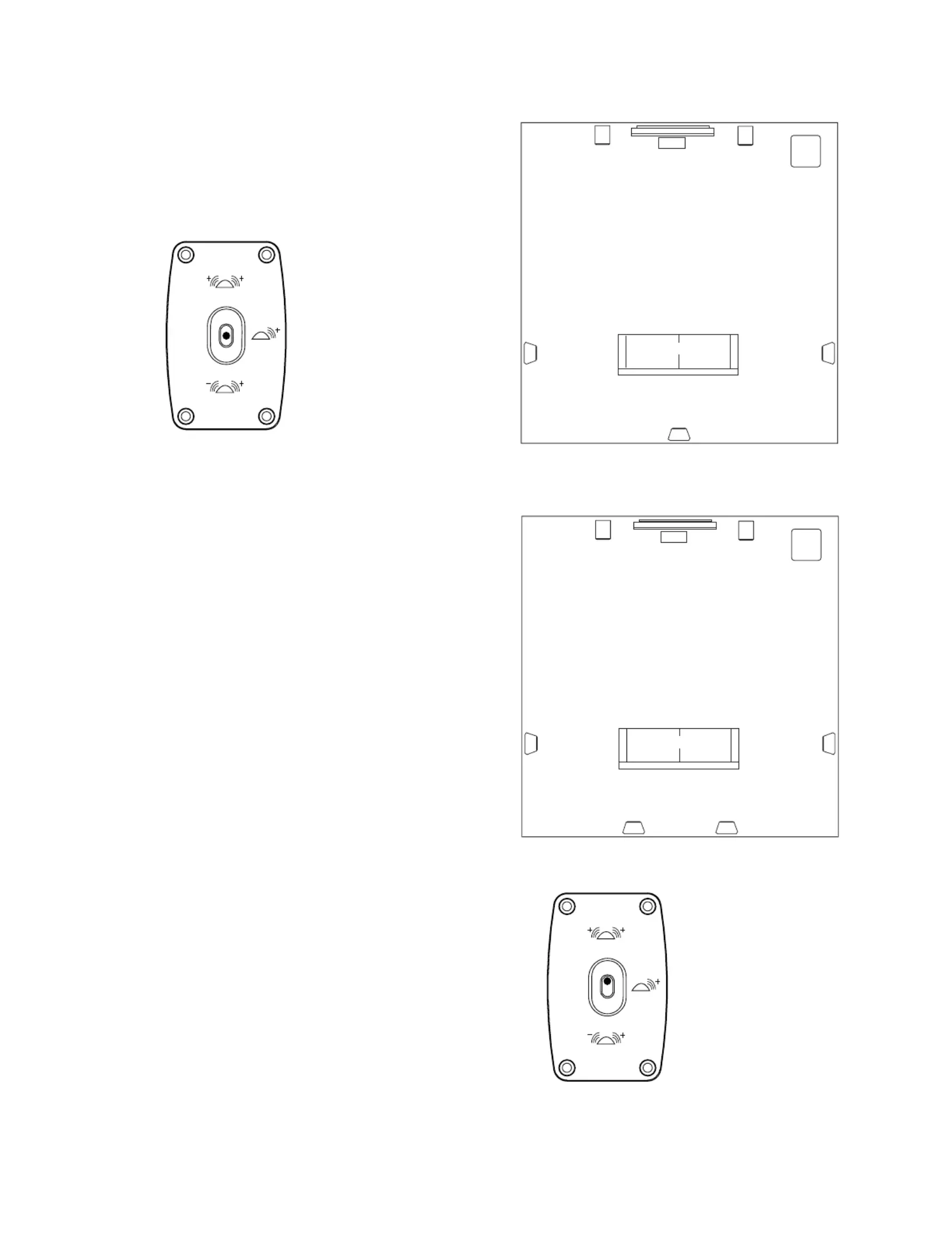

Figure 3. Surround Mode Configuration switch.
(BIPOLE)
(DIPOLE)
(MONOPOLE)
Placement (Application 2)
When using the C255ES as a rear speaker(s) in a 6- or
7-channel home theater system, refer to Figures 4 and 5.
The speaker(s) should be mounted on the rear wall facing the
listening area, between the side channel speakers. If you are
using one rear speaker, it should be mounted as close as
possible to the center of the listening area.When using two
rear speakers, they should be spaced evenly within the width
of the listening area.
Setting the Surround Mode Configuration Switch
When used as a rear channel speaker in a 6- or 7-channel
system, it is recommended that the Surround Mode Configuration
switch be set to “Bipole,”as shown in Figure 6.
Placement (Application 3)
The C255ES also possesses the unique capacity to behave as
two distinct loudspeakers from one enclosure.This allows you to
use a single C255ES for both the left and right rear speakers in
a 7-channel system.
To utilize the C255ES in this application, follow these simple steps:
1. Decide where you want to mount the speaker. Ideally, it should
be mounted in the center of the rear wall, similar to how it
would be mounted in a 6-channel system (Figure 4).
2. Loosen the terminals and remove the strapping bars that
connect the two sets of terminals (Figure 9).
3.To ensure proper left/right connections, make sure that the
speaker is in the “upright” position.The label on the back of
the speaker should be readable, not upside down.
4. Connect the speaker wire for the right rear speaker to
the bottom set of terminals (Figure10).
5. Connect the speaker wire for the left rear speaker to
the top set of terminals (Figure 10).
6. Set the Surround Mode Configuration switch to the “Bipole”
position (Figure 6).
Couch
Left
Front
Channel
Left
Side
Channel
Right
Side
Channel
Rear Center Channel
Right
Front
Channel
Center
Channel Infinity
Subwoofer
(optional)
Figure 4.This overhead view shows a typical home theater plan
with a single rear-center surround channel.
Couch
Left
Front
Channel
Left
Side
Channel
Left Rear Channel Right Rear Channel
Right
Side
Channel
Right
Front
Channel
Center
Channel Infinity
Subwoofer
(optional)
Figure 5.This overhead view shows a typical home theater plan
when using two rear channel speakers.
Figure 6. Surround Mode
Configuration switch.
(BIPOLE)
(DIPOLE)
(MONOPOLE)
