Instruction Manual
E N G L I S H
SURROUND
Required space to lift speaker
DK: Mindsteafstand for at løfte højttaleren
SP: Espacio necesario para elevar el altavoz
D: Erforderlicher Platz, um den Lautsprecher anzuheben
I: Spazio necessario per alzare il diffusore
F: Espace requis pour lever l'enceinte
NL: Benodigde ruimte om de luidspreker op te tillen
Top of the speaker
Drill holes Here
WALL BRACKETS
NL: Boor hie r de gaat je s
DK: Huller bores he r
SP: T aladre aquì los orificios
D: bohren Sie hie r die er forderlichen Löc he r
I: Eseguire i Fori qui
F: Pe rc er le s trous iç i
NL: Bovenzijde luidspreker
DK: Højtta lerens overside
SP: Parte superior del altavo z
D: Lautsprechero berseite
I: Sommità del diffuso re
F: Sommet de l'ence inte
NL: Muurbeugels
DK: Vo egbesla g
SP: Sopo rtes murales
D: Befe stigungsklammern für die Wandmonta ge
I: Staffe da Pa rete
F: Supports muraux
Couch
Left
Front
Channel
Left
Surround
Channel
Right
Surround
Channel
Right
Front
Channel
Center
Channel
Infinity
Subwoofer
(optional)
KAPPA SERIES INSTRUCTION MANUAL P Y SLANNING OUR YSTEM
Choosing Proper Placement and Setup
The Infinity Kappa Surround speaker can be used in side or rear
channel applications. Please refer to the placement and setup
method for your application. The first step is to determine the
application for which your Infinity Kappa Surround speaker will
be used.
If you are using the Infinity Kappa Surround for surround
channels in a 5-channel home theater system or for side
channels in a 6- or 7-channel home theater system, please
follow the directions in the section “Placement (Application 1)”.
If you are using the Infinity Kappa Surround as a rear speaker in
a 6- or 7-channel home theater system, please follow the
directions in the section “Placement (Application 2)”.
Placement ( )Application 1
When using the Infinity Kappa Surround for surround channels
in a 5-channel home theater system or for side channels in a 6-
or 7 channel home theater system, refer to Figure 1. The speakers
should be placed perpendicular to or slightly behind the
primary listening location, as shown.
Setting the Surround Configuration Selector
The Surround Configuration Selector switch is located under
the right-hand grille. (Refer to Figure 2)
It is generally recommended that the Surround Configuration
Selector be set to BIPOLE. This will provide a large ambient
surround sound field while allowing for precise localization of
sound effects that the film maker has placed in the surround
tracks.
If you are using a receiver/processor with a THX® surround
mode and have selected the THX surround mode, it may be
beneficial to set the Surround Configuration Selector to DIPOLE.
This is a matter of personal preference and may change
depending on the individual film soundtrack. It is also recom-
mended that the Dipole setting be used with older recordings
that are only recorded with a Dolby* Pro Logic* (not the newer
Dolby Digital) soundtrack.
2
TABLE OF CONTENT
2 Table of contents
2 This box contains
2 Planning your system
3 Wall mounting
4 Wiring the system
5 Final adjustments
5 Care of your speaker system
5 Specifications
X 8
X 4
X 1

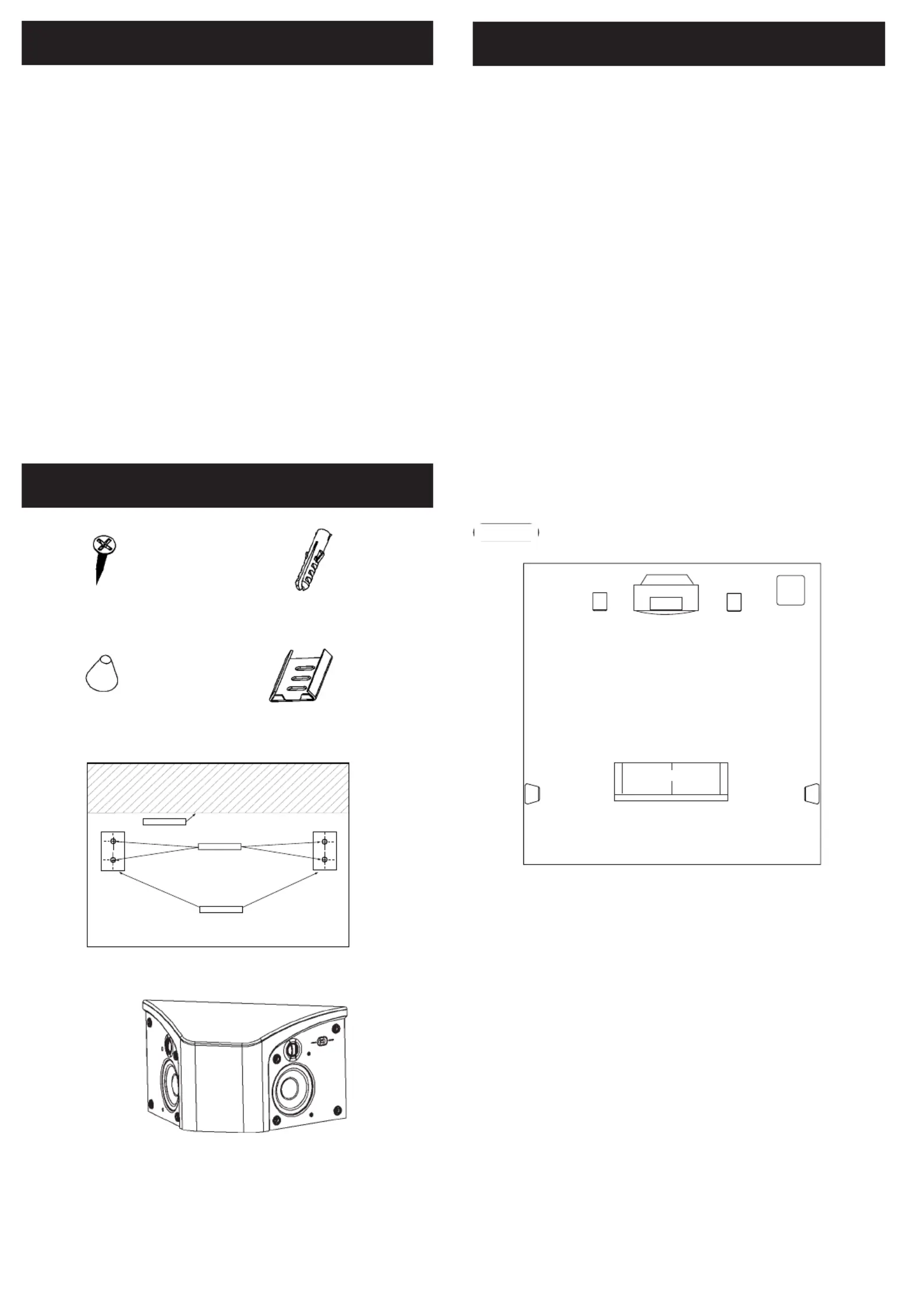

UNPACKING
The packing materials of your KAPPA Series speakers are
designed to protect the loudspeakers from any damage due
to rough handling during shipment. We strongly suggest that
you keep the packing material for future purposes, in case you
move or if your loudspeakers should require service.
Congratulations on choosing Infinity KAPPA Series
Loudspeakers. The instructions in this manual will help you
realize the full potential of your loudspeakers.
X 8
X 2
T B CHIS OX ONTAINS
- This overhead view shows a typical home theater plan.
Figure 1
X 4
- This overhead view shows a typical home theater
plan when using two rear-channel speakers.

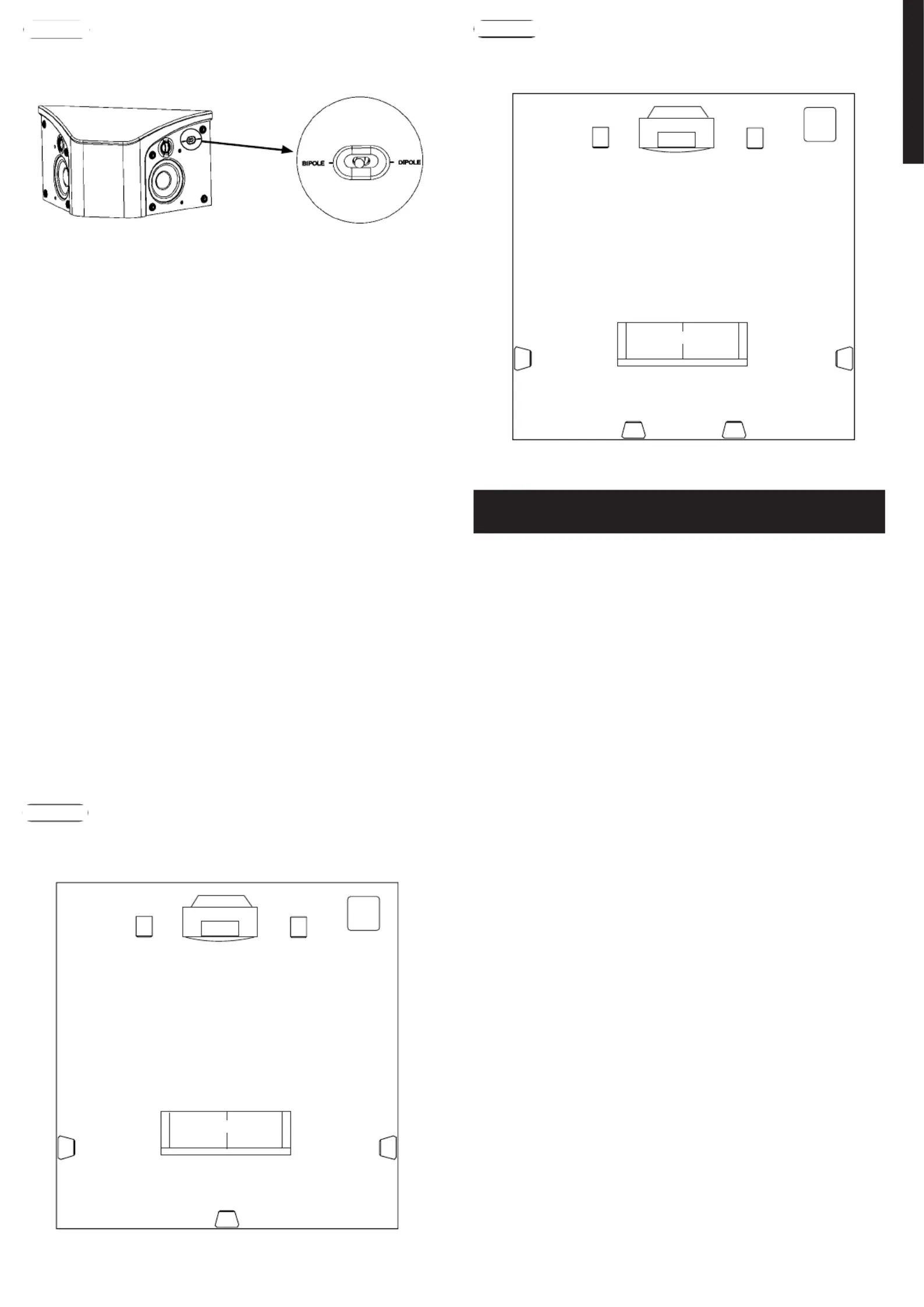

- Surround configuration selector switch location.
KAPPA SURROUND
W MALL OUNTING
3
Couch
Left
Front
Channel
Left
Side
Channel
Right
Side
Channel
Rear Center Channel
Right
Front
Channel
Center
Channel
Infinity
Subwoofer
(optional)
Couch
Left
Front
Channel
Left
Side
Channel
Left Rear Channel Right Rear Channel
Right
Side
Channel
Right
Front
Channel
Center
Channel
Infinity
Subwoofer
(optional)
The Kappa Surround speaker is designed to mount directly to a
wall. Each speaker has two mounting brackets. These bracket
have two parts. One part is attached at the factory to the
speaker and the second part must be attached by the user to the
wall.
Use the supplied template to mark the position of the brackets
on the wall. This must be done accurately to ensure that the
speaker can be hung without difficulty.
If the wall is constructed from brick or concrete, you may use the
supplied screws and wall plugs to attach the brackets.
A 7 mm drill will be required to make suitable holes.
If the wall is of cavity construction using plasterboard
(or similar dry lining material) you should use purpose-designed
cavity fixing toggles which are available from most do-it-yourself
stores.
IMPORTANT:
Ensure that the fixing toggles are specifically marked as being
suitable for loads greater than 8 kg.
IMPORTANT NOTE :
The user is responsible for correct fixing of the wall brackets to
the wall. The supplied screws and plugs are generally suitable in
the case of well-constructed brick or concrete walls, but the user
must assure himself that they are suitable for his particular
application. In the case of walls of cavity construction, or walls
using materials other than brick or concrete, the user should
seek specialist advice to help select the most appropriate fixing
method.
Step 1. Position the supplied template ( ) on theRefer to Figure 5
wall in the desired speaker location. Mark the required holes
(two for each bracket).
E N G L I S H
Figure 2 Figure 4
IMPORTANT NOTE:
Your Kappa surround speakers are marked “LEFT” and
“RIGHT”. Please observe the correct positions to ensure
optimum performance.
Placement ( )Application 2
When using the Infinity Kappa Surround as a rear speaker in a
6- or 7-channel home theater system. (Refer to Figures 3 and 4)
The speaker(s) should be mounted on the rear wall facing the
listening area, between the side channel speakers. If you are
using one rear speaker, it should be mounted as close as
possible to the center of the listening area. When using two rear
speakers, they should be spaced evenly within the width of the
listening area.
Setting the Surround Configuration Selector
The Surround Configuration Selector switch is located under
the right-hand grille. (Refer to Figure 2)
When used as a rear channel speaker in a 6- or 7-channel
system is r, it ecommended that the Surround Mode
Configuration Selector be set to BIPOLE.
- This overhead view shows a typical home theater
plan with a single rear-center surround channel.
Figure 3
