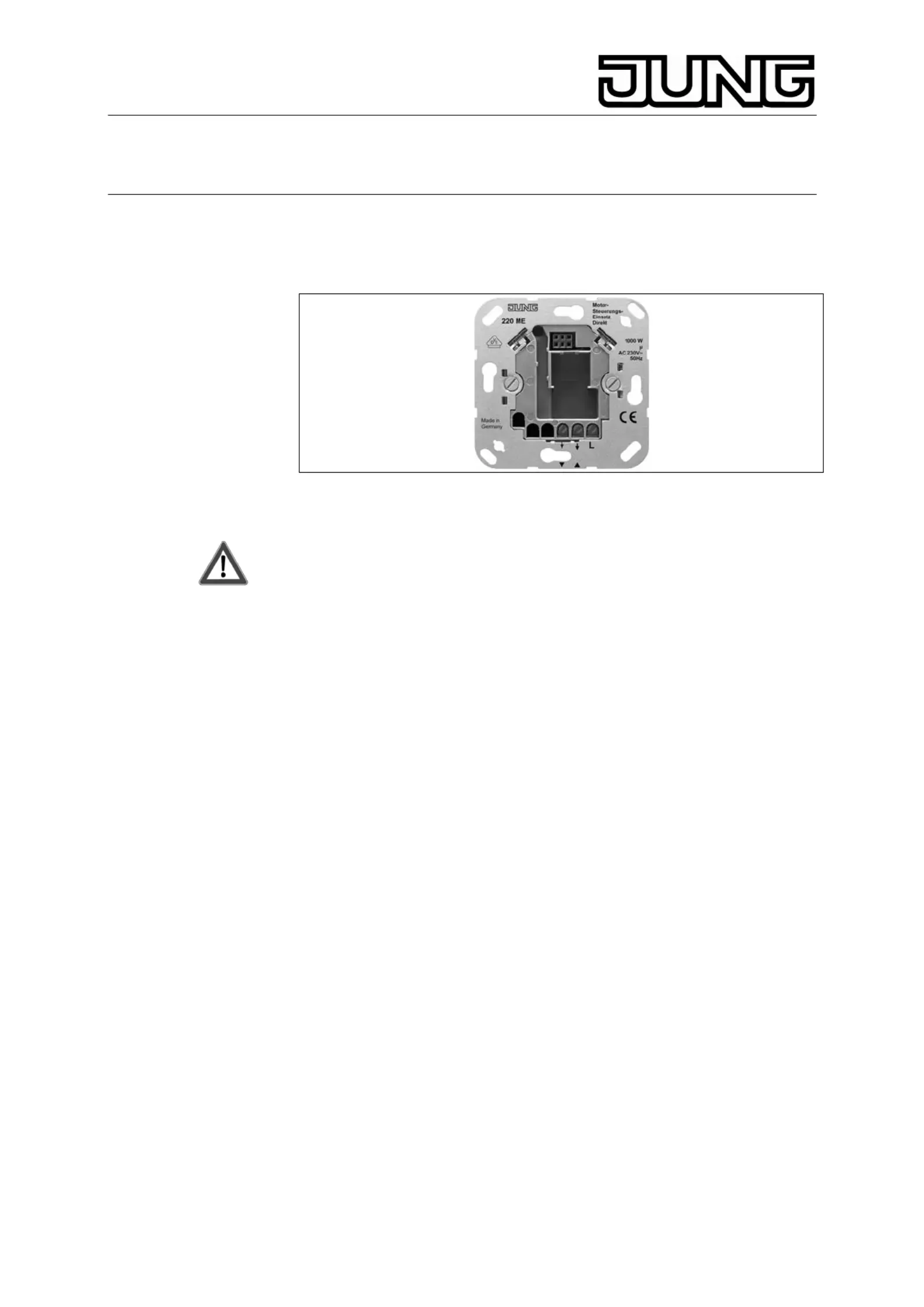

Jalousie Management JM Motor Control Insert Direkt
Ref.-no.: 220 ME
Operating Instructions
JM Motor Control Insert „Direkt“
1. Safety instructions
Attention: Electrical equipment must be installed and fitted by
qualified electricians only.
Only for connection of a motor with limit switches and a power
consumption of max. 1000 W. Non-observance of the fitting
instructions may damage the device and cause fire or other
hazards.
The blind/shutter control is designed for the automatic operation of
window blinds and shutters. Any other use as, for instance, the
operation of roller-shutter gates may involve hazards. These risks
must be excluded by the user by providing supplementary and
suitable safety devices (e.g. light barriers).
2. Function
The motor control insert ‘Direkt’ is used in electrical installations without
neutral conductor (N).
The existing mechanical shutter switch can therefore be replaced directly
by a comfortable control unit with the motor control insert ‘Direkt’. The
motor control insert ‘Direkt’ is a component of the Jalousie Management
and is used in conjunction with attachments of the Jalousie Management
in a mounting box acc. to DIN 49073 (deep box recommended).
By replacing the attachment it is therefore possible to realize systems
with manual operation, comfortable operation by radio remote control or
timercontrolled fully automatic operation.
The insert is equipped with two mechanically interlocked relay power
contacts. The simultaneous activation of both moving directions of the
shutter motor connected is thus excluded. connected is thus excluded.
Attention: Connect only one motor with limit switches and a power
consumption of 1000 W max. to each insert. Do not use isolating
relays. It is absolutely necessary to check the motor for suitability
as described in chapter 4.
Stand: Jun-08 325 307 03
Jalousie Management JM Motor Control Insert Direkt
Ref.-no.: 220 ME
The insert has 3 connecting terminals (1) and a 6-pole interface
connector (2) for connection of the attachment. In addition, a 3-pole
terminal block (3) can be placed into the insert (supplied with inserts with
sensor input).
d
c
e
This terminal block can be used to connect different sensors to the insert
when attachments with sensor input are installed:
• Sun protection / twilight sensor (art. no. 32 SD)
• Glass breakage sensor (art. no. 32 G)

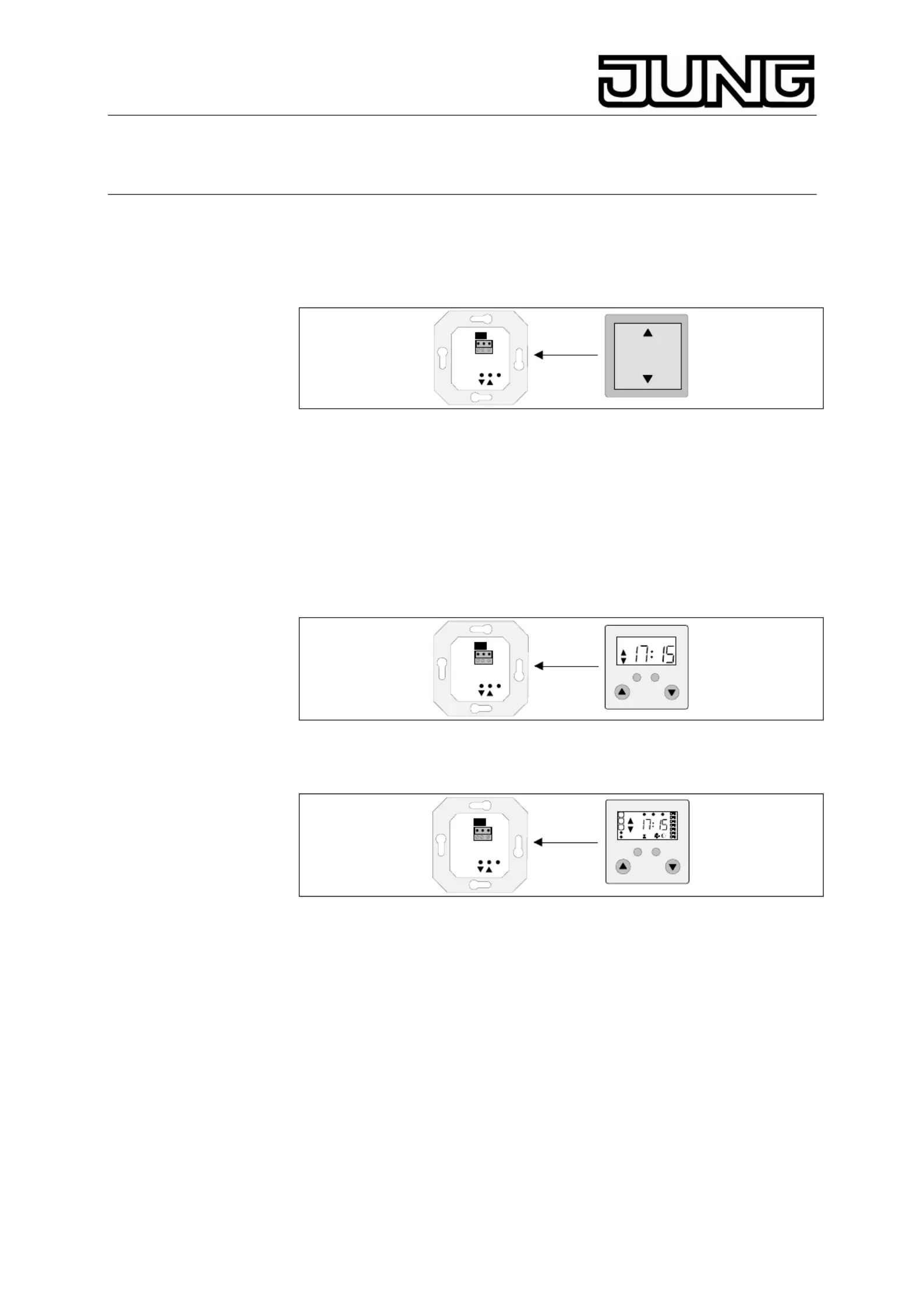

2.1. Equipment combinations
Depending on the attachment used, the following functions can be
implemented:
JM push-button attachment, (Art. no. ..5232 .., ..5252 S..)
Pushbutton for manual operation.
(see ‘JM push-button attachment’ operating instructions).
L
JM radio receiver attachment, (Art. no. ..5232 F.., ..5252 FS..)
Pushbutton for manual and radio remote-control operation (see ‘JM radio
receiver attachment’ operating instructions).
L
JM push-button attachment with memory function,
(Art. no. ..5232 M.., ..5252 MS..)
2
