System control unit, System sensor 180
System control unit
Art. No. : WL 2200 WW
System sensor 180
Art. No. : WS 180 WW
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end
customer.

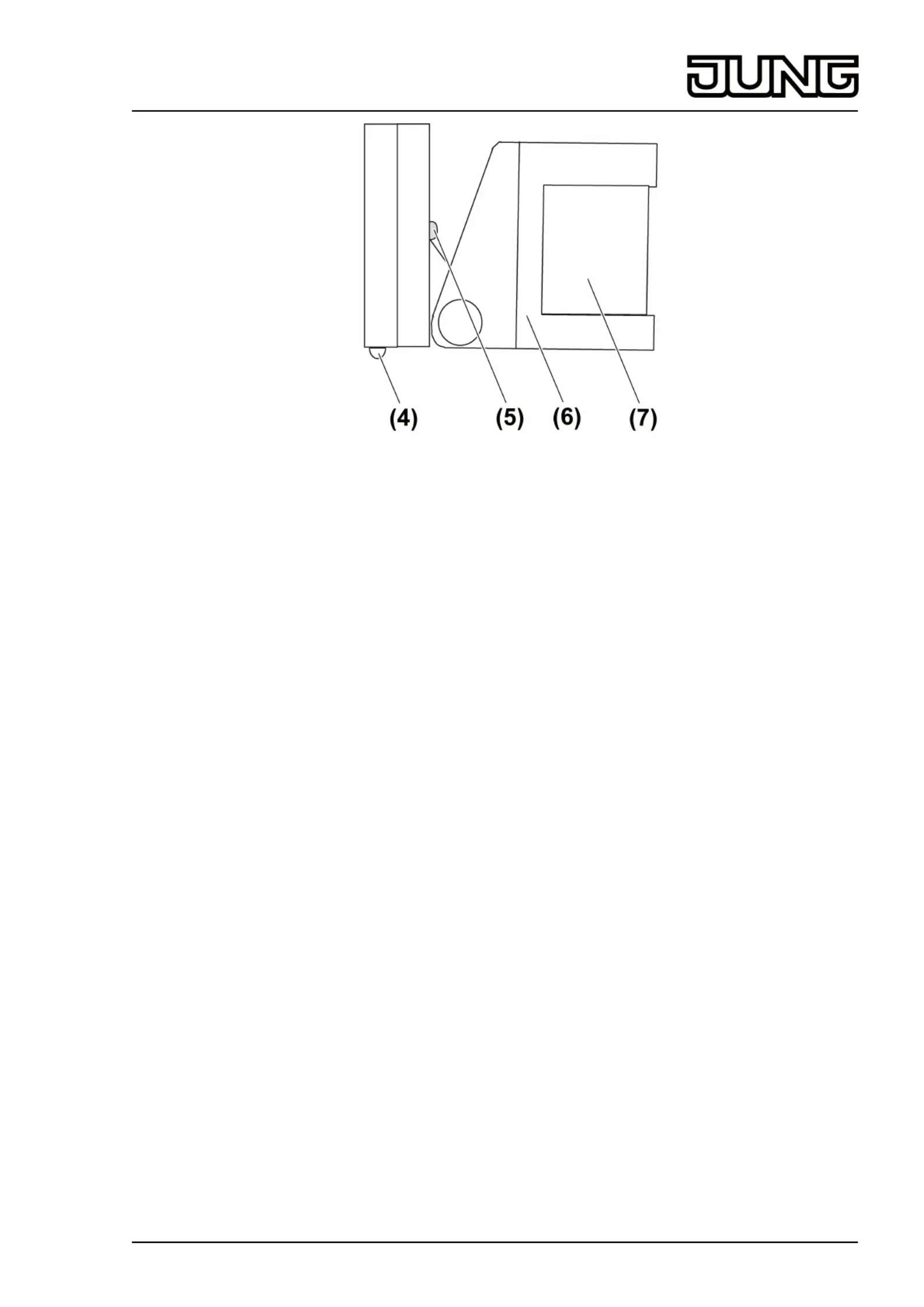

2 Device components
Motion detector system

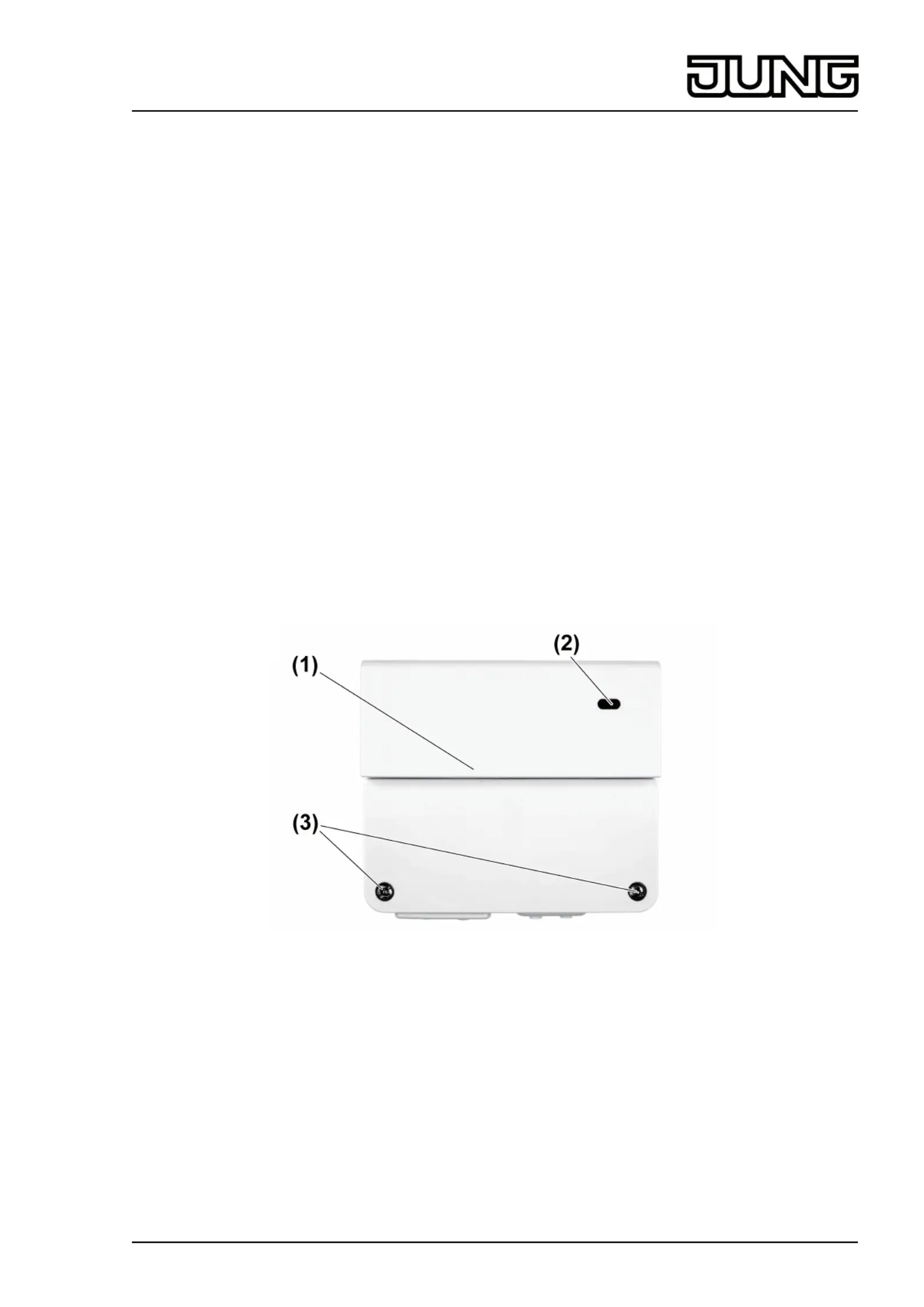

Figure 1: Surface-Mounted System Power Pack
1/13
32529513
J:0082529513 17.04.2014

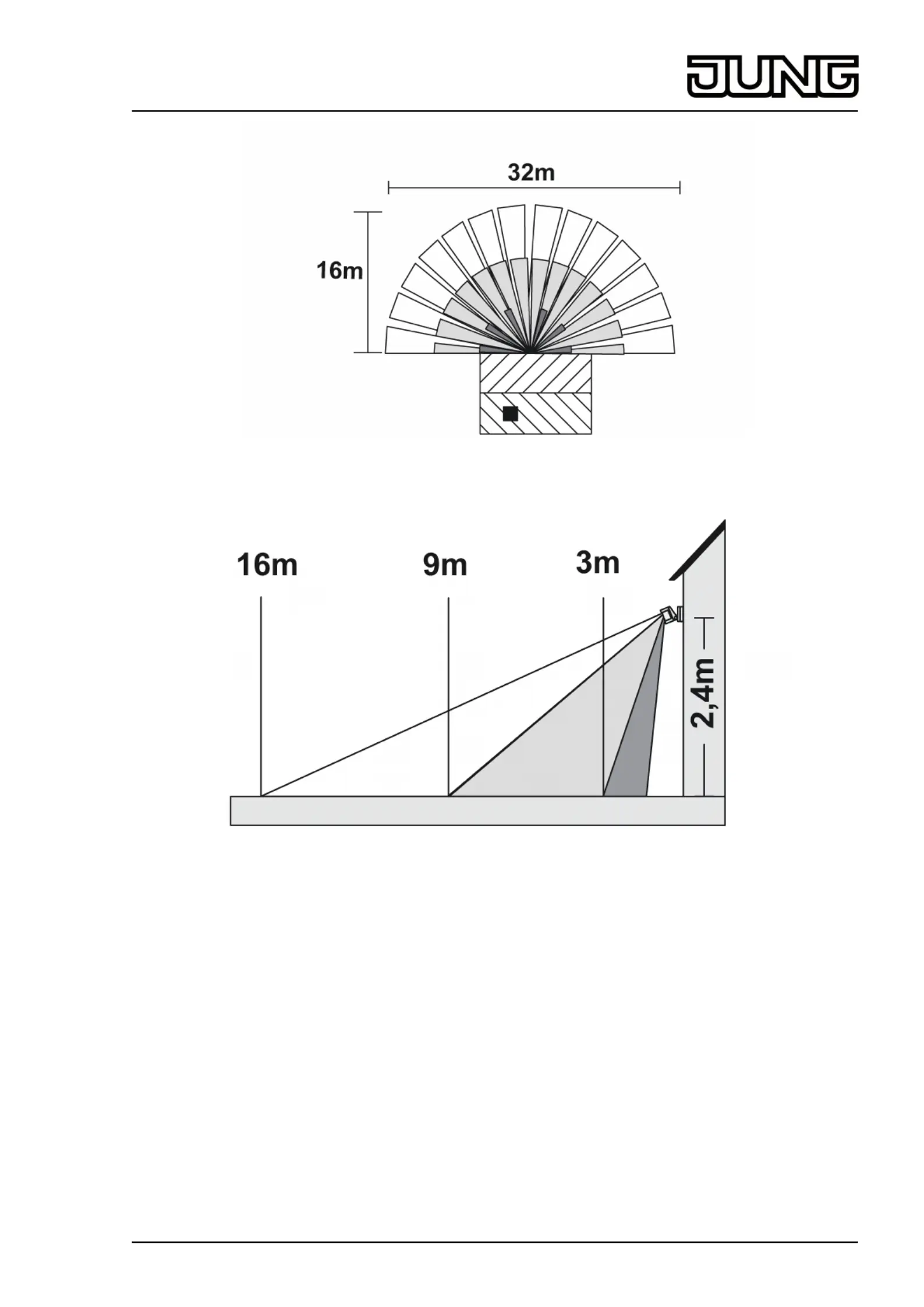

Figure 3: Detection area of 180° System Sensor
Figure 4: Range of 180° System Sensor
Automatic operation
System sensors detect heat movements or people, animals or objects and report them to the
power pack. The current brightness value is transmitted to the power pack by only one system
sensor.
- The light is switched on if a person enters the monitored detection area and the brightness
is below the set threshold.
- The light is switched off if no more movement is detected in the detection area and the
follow-up time has elapsed.
In order to avoid light oscillations due to the cooling of a bulb, the power pack does not evaluate
any signals for approx. 3 seconds after switch-off.
Switching on the mains voltage of the power pack triggers a switching operation on the power
pack.
The status LED of the power pack (2) lights up when the load is switched on. The status LED of
a system sensor (4) lights up when a motion signal is forwarded to the power pack.
3/13
32529513
J:0082529513 17.04.2014
System control unit, System sensor 180
