WP-211X Quick Start

P/N:

2900- 301398QS

Rev:

Scan for full manual

WP-211X Quick Start Guide

This guide helps you install and use your WP-211X for the rst time.

Go to www.kramerav.com/downloads/WP-211X to download the latest user manual and check if rmware

upgrades are available.

Step 1: Check in the b what’s ox

WP-211X 4K HDR HDMI Auto Switcher Wall Plate

1 Quick start guide

Installation accessories

Frame (or frame set) and faceplate

1 Power adapter and cord

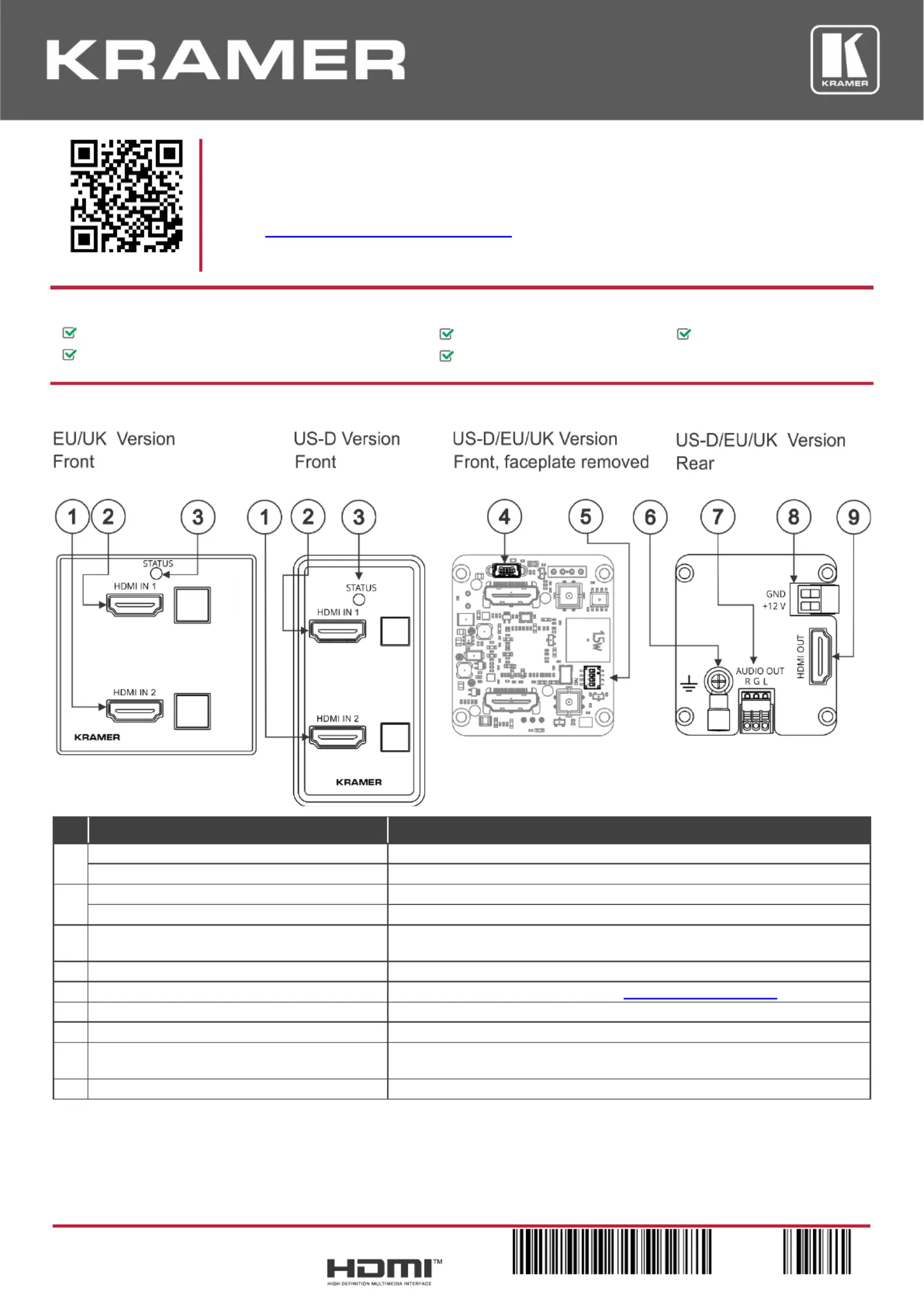

Step 2: Get to know your -211X WP

Feature

Function

HDMI IN 2 Connector

Connects to an HDMI source.

HDMI IN 2 Button

Press to select the HDMI 2 input (button lights orange).

HDMI IN 1 Connector

Connects to an HDMI source.

HDMI IN 1 Button

Press to select the HDMI 1 input (button lights orange).

STATUS LED

Lights green when the device is powered and blue when an HDMI output is

connected.

PROG Mi USB Connector ni

Connect to upgrade the firmware.

SETUP 4-way DIP-Switches

Set the operation DIP-switches (see Setting the DIP-Switches).

Ring Tongue Terminal Grounding Screw

Connect to grounding wire (optional).

AUDIO OUT 3-pin Terminal Block Connector

Connect to an unbalanced analog audio acceptor.

Power Supply 2-pin Terminal Block

Connector

Connect to the power supply. Connect GND to GND, + V to + 12 12V.

HDMI OUT Connector

Connect to an HDMI acceptor.

The terms HDMI, HDMI High-Denition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.

Step 3: Install the -211X WP

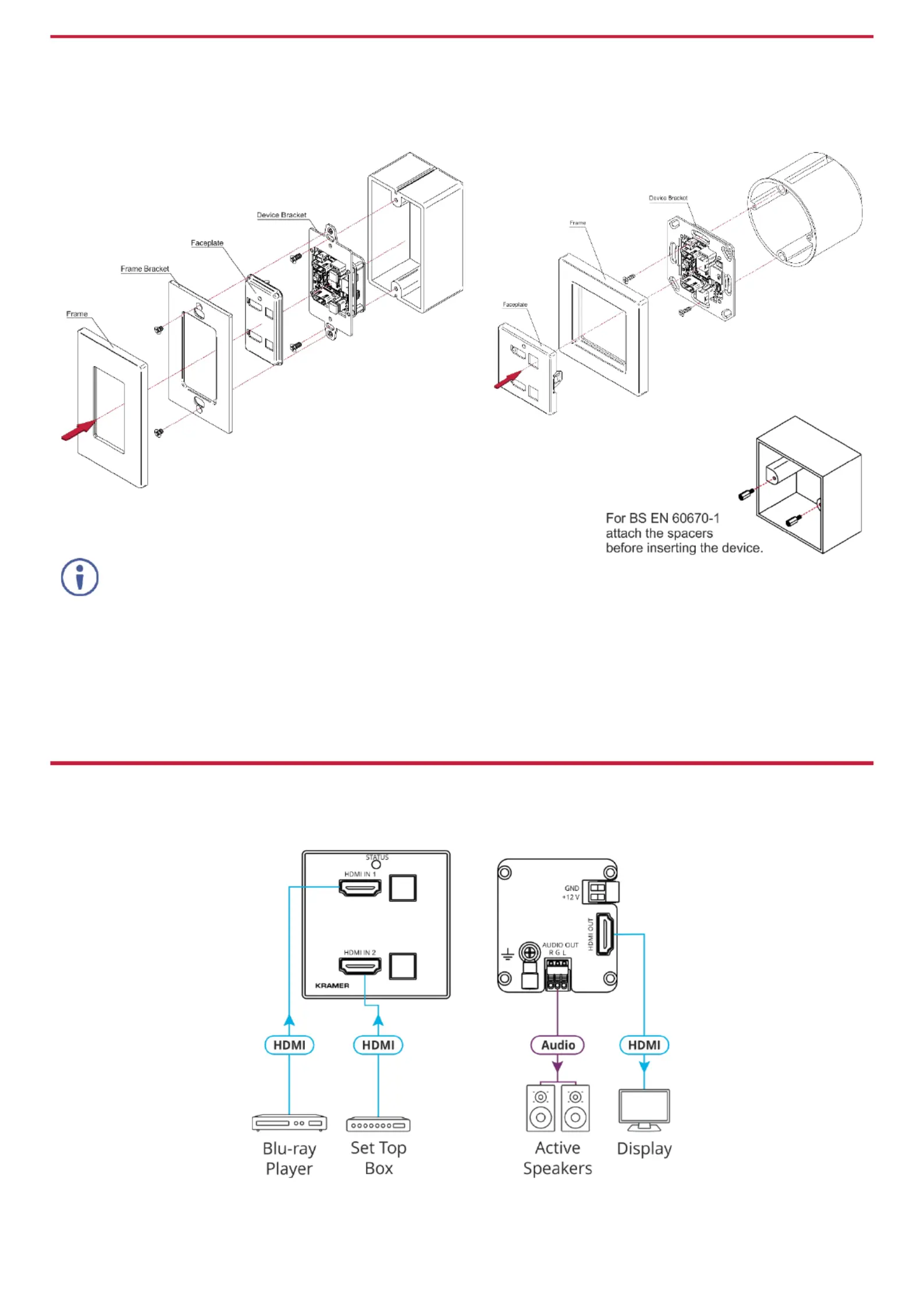

Insert the device into the in-wall box (note that rst you need to connect the HDBT cable and power) and connect the parts as

shown in the illustrations below:

US D - Version

EU/UK Version

DECORA® design or similar frames are included in US-D models. DECORA® is a registered

trademark of Leviton Manufacturing Co., Inc.

We recommend that you use any of the following standard 1 Gang in-wall junction boxes (or their equivalent):

• : 1 Gang US electrical junction boxes. US-D

• : 1 Gang in-wall junction box, with a cut-hole diameter of 68mm and depth that can fit in both the device and the EU

connected cables (DIN 49073).

• : 1 Gang in-wall junction box, 75x75mm (W, H) and depth that can t in both the device and the connected cables UK

(BS 4662 or BS EN 60670-1 used with supplied spacers and screws).

Step 4: Connect the inputs and outputs

Always switch OFF the power on each device before connecting it to your WP-211X. For best results, we recommend that you

always use Kramer high-performance cables to connect AV equipment to the WP-211X.

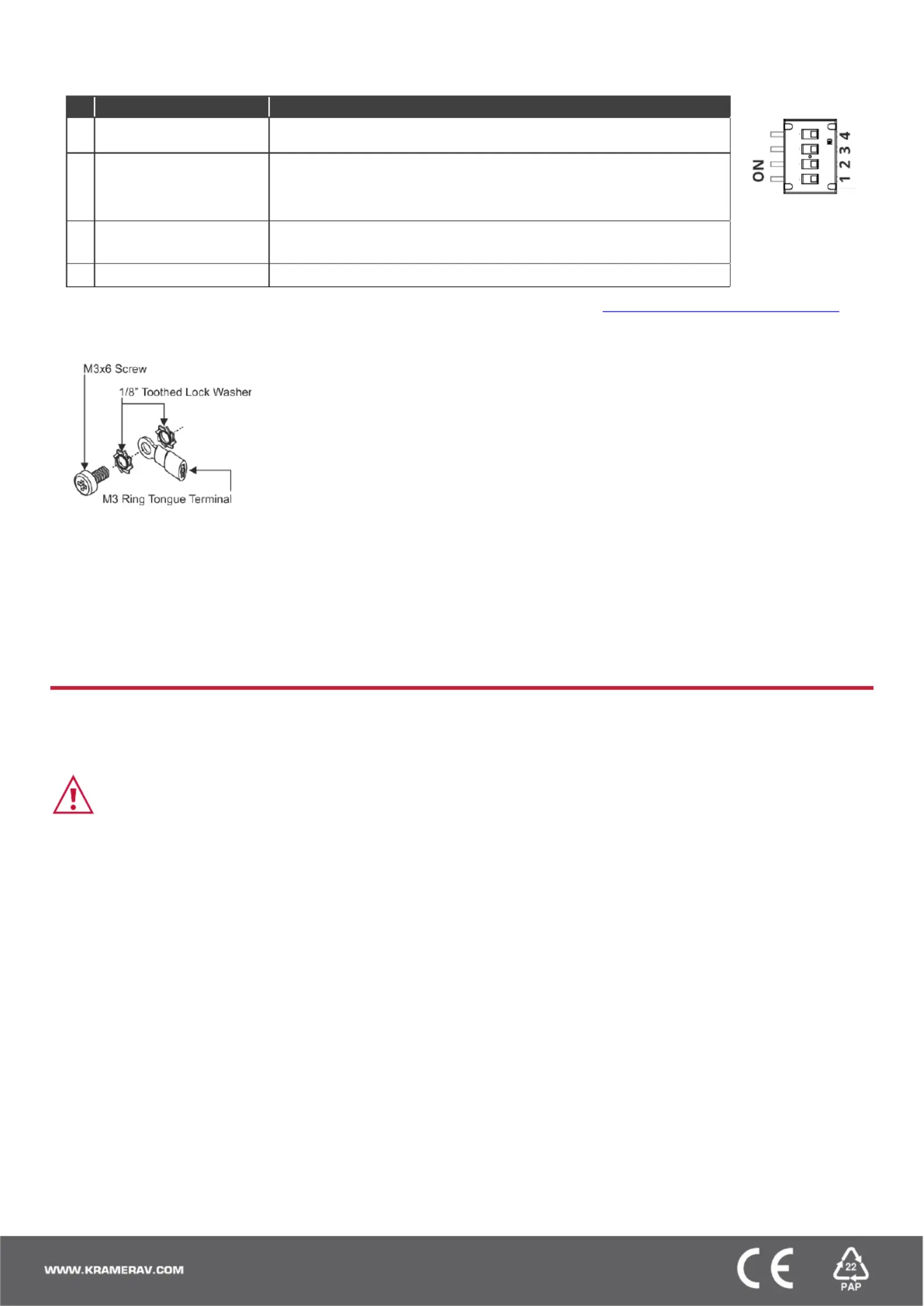

Setting the DIP-Switches

DIP-switches 1, 2 and 3 are set to ON by default and DIP-switch 4 is always set to OFF.

DIP-switch changes take eect immediately.

Feature

Dip-Switch Settings

Switching Mode

OFF Manual mode. –

ON Auto-switching mode. –

Auto-switching Mode

OFF Priority switching mode: the device– switches the source with the

highest priority to the output.

ON Last connected switching mode: the last detected active source is –

auto-switched to the output.

EDID lock

O EDID Locked. –

On EDID parameters are pass–ed-through.

Reserved for Factory Use

It is mandatory to keep set to OFF.

For optimum range and performance use the recommended Kramer cables available at www.kramerav.com/product/WP-211X

Grounding the (Optional) WP-211X

1. Connect the ring tongue terminal to the building grounding point wire (a green-yellow, AWG#18 (0.82mm2) wire,

crimped with a proper hand-tool is recommended).

2. Insert the M3x6 screw through the toothed lock washers and the tongue terminal in the order shown above.

3. Insert the M3x6 screw (with the two toothed lock washers and ring tongue terminal) into the grounding screw hole

and tighten the screw.

Step 5: Connect the power

Connect the V power adapter to the device and plug the power supply into the mains electricity. 12

Safety Instructions

Caution:

• For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.

• There are no operator serviceable parts inside the unit.

Warning:

• Use only the power cord that is supplied with the unit.

• Disconnect the power and unplug the unit from the wall before installing.

• Do not open the unit. High voltages can cause electrical shock! Servicing by qualied personnel only.

• To ensure continuous risk protection, replace fuses only according to the rating specied on the product label which located on the bottom of the unit.
