ASSEMBLING & INSTALLATION INSTRUCTIONS
The drawing shown may not exactly match the product enclosed.
However, the installation instructions do apply to this product.
65501 65502 65503 7390 7391 7392 7393
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER.
ATTENTION! COUPER LE COURANT AU FUSIBLE OU UN DISJONCTEUR.

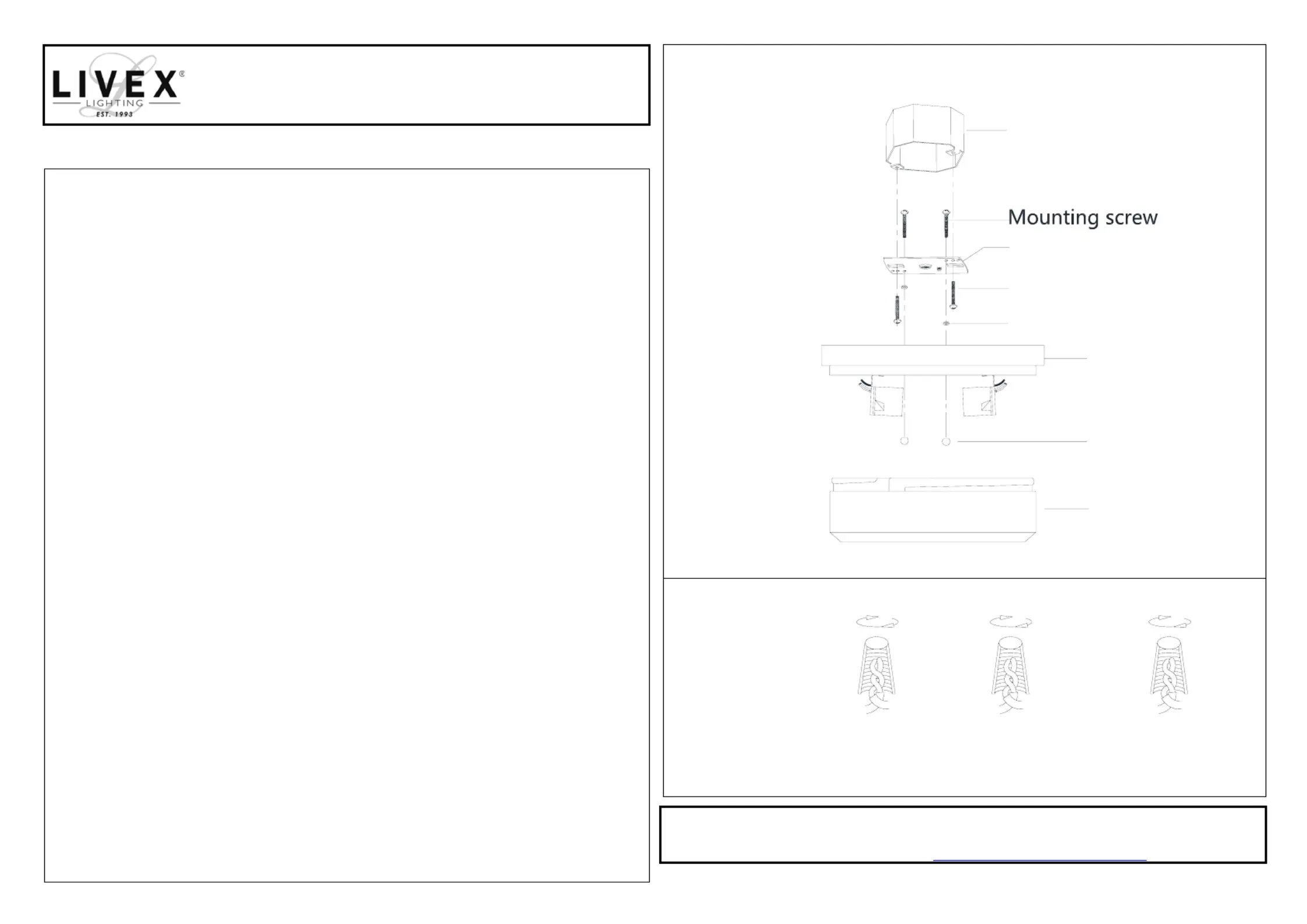

ASSEMBLING THE FIXTURE (Fig.1)
1. Shut off the power at the fuse box or circuit breaker box. Remove the old
fixture from ceiling, including the single bar.
2. Carefully unpack your new fixture and lay out all the parts on a clear area.
Take care not to lose any small parts necessary for installation.
3. Thread the two mounting screws into the pre-drilled holes in the single bar
spaced the same distance apart as the holes in the lamp body (A).
4. Attach the single bar to the Junction Box using the two screws from the
Junction Box as shown. The side of the single bar marked "GND" must
face out. The junction box is not included.
5. Hold the lamp body(A) towards the single bar and connect the electrical
wires as follows (See ). Connect the black wire from the fixture to the Fig.2
black house (hot) wire; connect the white wire from the fixture to the white
house (neutral) wire. Make sure all wire nuts are secured. You may wrap
the connections with electrical tape. If your Junction box has a ground
wire (green or bare copper) connects fixture’s ground wire to it. Otherwise
attach the bare copper fixture wire to the green ground screw on the
single bar. Tuck the wire connections neatly into the ceiling junction box
as you are holding the fixture assembly toward the ceiling.
6. Finish mounting the lamp body (A) by placing it over both mounting
screws so that the screws protrude from the holes in the bottom of the pan
(A), lock it securely with the ball nut(B)
7. Install the light bulbs Not included（ ）in accordance with the fixture’s
specifications. DO NOT EXCEED THE MAXIMUM WATTAGE
RATING!
8. Attach the glass shade (C) to the pan (A), aligning the salient of pan with
glass shade's dint, rotate the glass shade until tighten.
Your installation is now complete. Return power to the
j
unction box and test the fixture.
A
C
JunctionBox
Boxscrew
Singlebar
B
(Notincluded)
HexNut
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black(Hot)
FIXTURE
WIRES
White or
Ribbed
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
White
(Neutral)
HOUSE
WIRES
Green or Bare
Copper(Ground)
Thank you for purchasing a LIVEX product.
Need assistance with parts or assembly? Please call customer service at: 800-761-8056
Or visit us on-line at: WWW.LIVEXLIGHTING.COM
©COPYRIGHT ALL RIGHTS RESERVED.LIVEX LIGHTING,INC. DOC20160465501
FIG.2
FIG.1
