Professional Passive Loudspeakers
JUBI SERIES
Page 1
JUBI Series Data Sheet 07/01/2015
Information in this document is subject to change without notice.
Overview
Phonic’s Jubi 12 and Jubi 15 establish a new paradigm for molded
passive speakers. A lightweight design and rugged pole mounts
make the Jubi the most versatile, portable active loudspeaker today.
Phonic engineers designed a high BL force factor woofer and a 1"
compression tweeter to achieve the Jubi’s astonishingly wide sound
stage and a vivid, transparent signature sound. A carefully crafted
polymer enclosure with stunning vertical curvatures not only look
great, but also improve acoustic accuracy by minimizing internal
diffraction. Finally, reliability and durability were the paramount
factor throughout the Jubi’s development.
Woofers and Tweeters Engineered Right
Unlike many other speaker manufactures that use pre-assembled
OEM woofers and tweeters, Jubi transducers are designed from
scratch, in-house, by Phonic. Everything, from the cone pulp
formula and the curvature of the tweeter’s titanium membrane to
the characteristic of the magnetic field, is uniquely Phonic, uniquely
Jubi. Jubi’s state-of-the-art 12" or 15" woofer has a distinctly high BL
force factor and a long-throw extension which produce marvelously
deep and defined bass traditionally unattainable in small enclosures.
The 1" compression tweeter and 95 degree conical horn complete
the Jubi’s vivid, transparent sound signature.
Advanced Electronics. Advanced Reliability
With over 35 years of experience, Phonic has few equals when it
comes to advanced electrical engineering technology. With the Jubi
series, this cumulated expertise is on display. Core features include:
4
Time alignment and phase correction: In listening tests, many
notice that the Jubi seems more “real” or more “live” than
other speakers. This is because Phonic’s electronics ensure that
sounds from the Jubi hit listeners’ ears at the precise moments
the original recording intended.
4
High Dampening Factor and Woofer Stabilization: The Jubi has
a high amplifier dampening factor to ensure that the woofer
reaches optimal excursion. Additionally, Phonic engineers added
circuitry to manage the speaker’s electrical feedback, in effect,
stabilizing woofer movement. The high amplifier dampening
factor and stabilization circuitry give the Jubi its spectacular bass
depth and clarity.
4
4th order, phase-accurate, Linkwitz-Riley crossover
With experience and technology comes excellent performance and
reliability. But you can never be too careful. As of the launch date,
the Jubi has logged more than 1000 hours of real world and lab tests,
guaranteeing a remarkable level of reliability. From heated ovens,
freezing subzero rooms, high humidity chambers, to electrical voltage
spikes, the Jubi has endured it all.

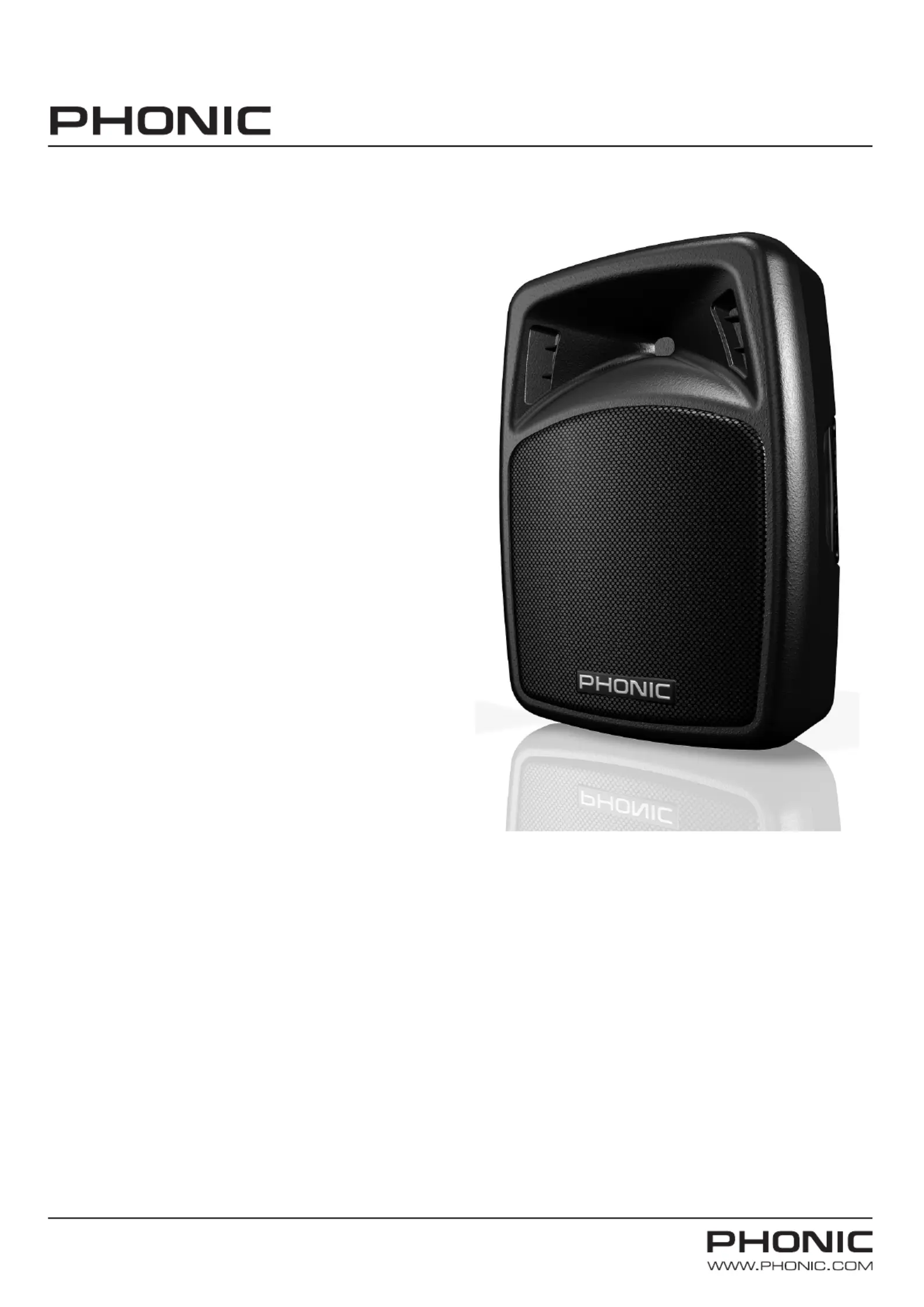

JUBI 12
12" Passive Loudspeaker
JUBI 15
15" Passive Loudspeaker
Features
4Remarkable sound, remarkable power, and remarkable style in a
lightweight, durable enclosure
4350 Watt RMS power handling at 8 ohms, recommended power
amplifier: 700 Watts
412" or 15" woofer matched with 1" compression tweeter
4Flat frequency response between 50/53Hz and 20kHz
4Speakon and 1/4" phone jack input and through connectors
44th order phase-accurate Linkwitz-Riley crossover
435mm pole mount for extended audience reach
4Impact resistant polymer enclosure with internal bracings
4Tour grade steel grille (1.2 mm)
JUBI SERIES
Professional Passive Loudspeakers
Page 2
JUBI Series Data Sheet 07/01/2015
Information in this document is subject to change without notice.
Specifications
Jubi 12 Jubi 15
RMS Power Handling (@ 1% THD) 350 Watts 350 Watts
Continuous Power Handling 700 Watts 700 Watts
Peak Power Handling 1400 Watts 1400 Watts
Nominal Impedance 8 ohms 8 ohms
Recommended Power Amplifier 700 Watts 700 Watts
Sensitivity (1W @ 1m) 92 dB 94 dB
Frequency Response 53 Hz - 20 kHz 50 Hz - 20 kHz
LF Size 12'' 15''
LF-Magnet Material Ferrite Ferrite
LF-VC Diameter 2.6 inch 2.6 inch
HF-Diaphragm Size and Material 1'' 1''
HF-Magnet Material Ferrite Ferrite
Horn Coverage Pattern 95 degree 95 degree
Input Connectors Speakon & 1/4" TRS Speakon & 1/4" TRS
Output Connectors Speakon & 1/4" TRS Speakon & 1/4" TRS
Crossover Type Precisely tuned crossover Precisely tuned crossover
Enclosure Material Polymer Polymer
Grille Gauge 1.2 mm 1.2 mm
Handle Material / Positions 2 on sides 2 on sides
Monitor position Yes - Two sides Yes - Two sides
Suspension / Mounting Stand mounting with 35mm pole socket Stand mounting with 35mm pole socket
Dimensions (HxWxD) 559 x 370 x 277 mm
(22" x 14.56" x 10.9")
679 x 450 x 345 mm
(26.73" x 17.71" x 13.58")
Net Weight 9.5 kg (20.9 lbs) 14 kg (30.9 lbs)
