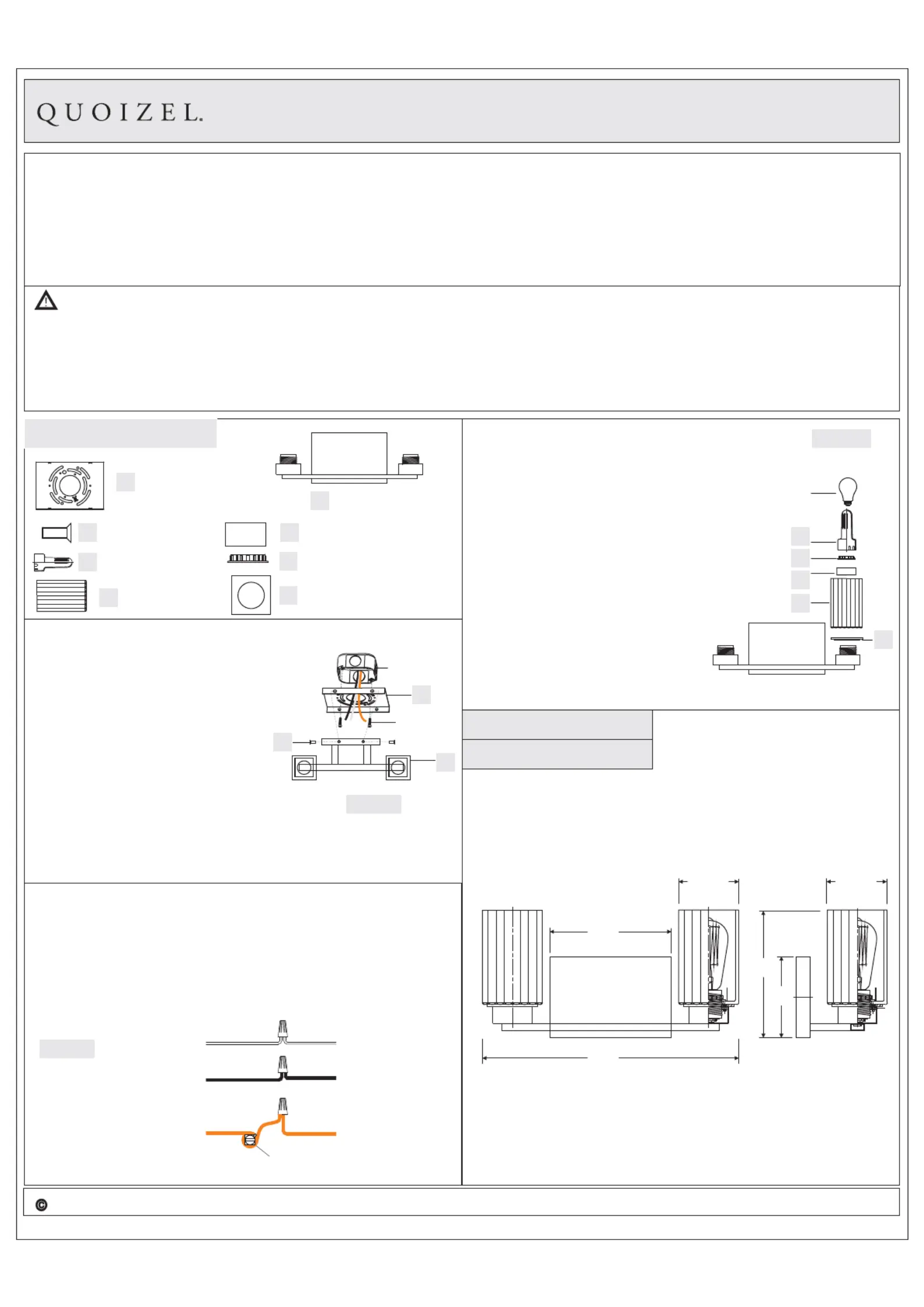

For Style DAN8615PK
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.
Please go to for product cleaning tips. Go to the selection.
(2) A19 Medium Base 100W bulb Maximum, bulb not included.
30-45 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to ensure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Missing Parts? Contact your original place of
purchase.
www.quoizel.com Care + Maintenance
Light Source:
EstimatedAssembly Time:
Preparation:
Tools Required: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
Installation Guide #IS-DAN8615PK
2018 QuoizelInc.
visit us on-line at www.quoizel.com
Figure 2
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture
STEP 2 - Wire Connections
A.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
DAN8615PK
15”
FINISH: POLISHED NICKEL
NOTE: ALL DIMENSIONS ARE ROUNDED UP
TO THE NEAREST 1/4"
ReleasedDate:2019-02-22
STEP 1 Install Inner Backplate and
Fixture Body
-
A. Pass the supply wires through Inner
Backplate (A). Attach Inner Backplate
(A) to Outlet Box with the head of
Green Ground Screw facing you.
Secure it with Outlet Box Screws (not
included). Tighten until snug
B. Race all supply wires through the
Inner Backplate (A) as shown. Refer to
Step 2 for wiring connections. Refer to
Step 2 for wiring connections.
C. Attach Fixture Body (D) over Inner
Backplate (A) and secure with Lock
Screws (B). Tighten until snug with
screwdrivers.
.
A
Figure 1
Outlet Box
Outlet Box
Screw
D
B
7.5”
7”
3.5”
4.75”
3.5”
Bulb(not
included)
Figure 3
Package Contents
E
BLock Screw
x 4
Steel Collar
x 2
Inner Backplate
x 1
A
Shade
x 2
DFixture Body
x 1
F
Socket Collar
x 2
G
Socket Collar
Tool x 1
C
STEP 3 - Install Shades and Bulbs
A. Place the Plat (H), the Shade (E)
and the (F) over Socket
as shown. By using the Socket
Collar Tool (C), thread the Socket
Collar (G) onto the Socket to secure
them together. Hand tighten until
sung.
Steel Collar
B. Insert the bulb onto the socket and
screw snugly into place.
Your fixture is now assembled and
ready to use. Enjoy! E
F
G
C
Plat
x 2
H
H
