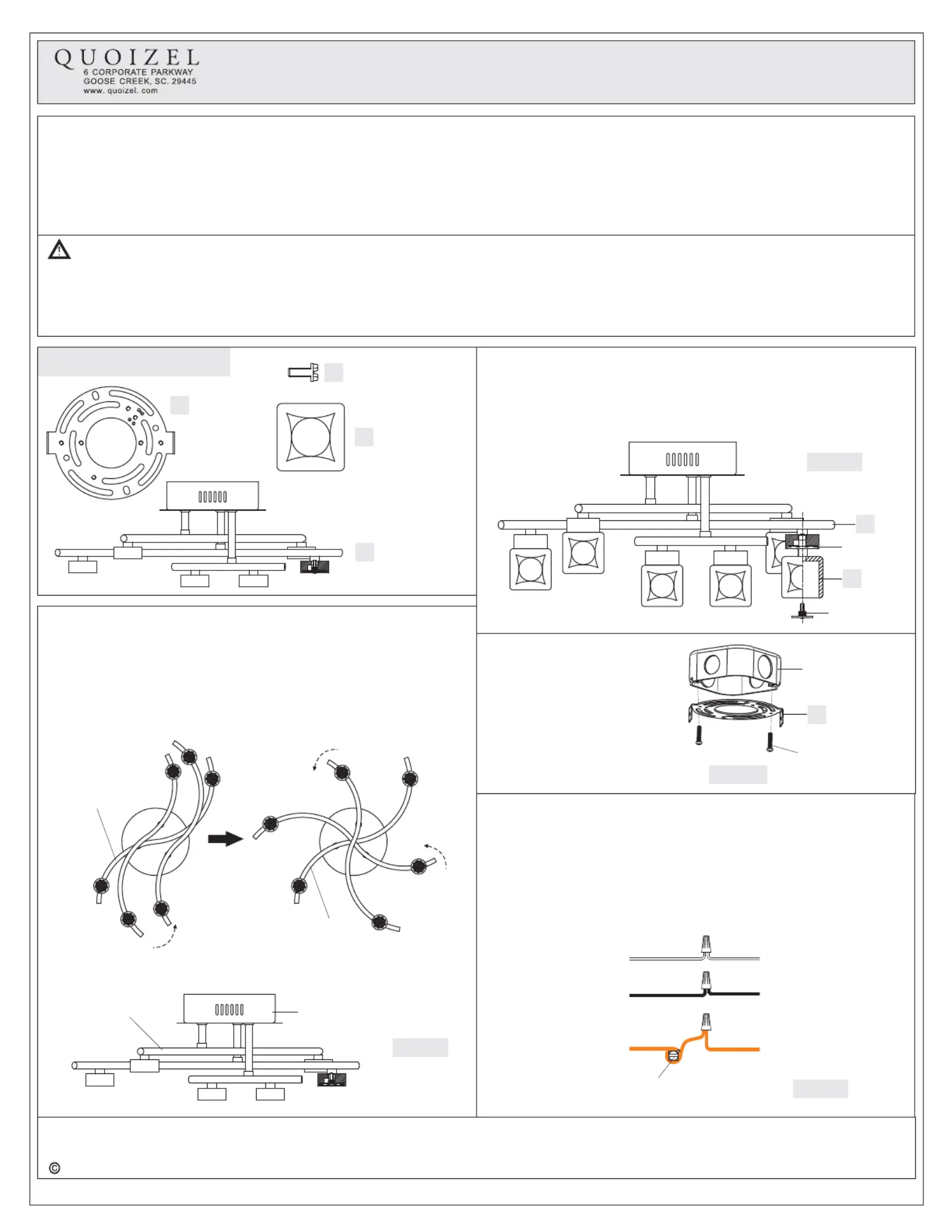

Package Contents
1of2
Assembly Instruction Sheet #IS-PCHL1718C
For Style PCHL1718C
Crossbar
x 1
A
Mounting Screw
x 2
B
STEP 1 -Adjust Lamp Tube
A. Place the Fixture Body (D) onto a flat working surface with support
arms facing you. Carefully rotate support arms to your desired
directions.
Note: The support arm next to the ceiling canopy is the fixed arm,
which cannot be rotated.
2018 QuoizelInc. ReleasedDate:2018-02-05
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
DFixture Body
x 1
Figure 1
Please go to for product cleaning tips. Go to the selection.
Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.
LED 24W
www.quoizel.com Care + Maintenance
Tools Required:
Light Source:
Estimated Assembly Time:
Preparation:
20-30 minutes
Identify and inspect all parts before beginning installation. Check package content list and diagrams below to be sure all parts are
present. If any parts are missing or damaged, do not attempt to assemble, install, or operate the fixture. Contact customer service for replacement
parts.
Warnings and Cautions
Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.
These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly
recommend that a licensed, professional electrician perform the installation.
Crystal
x 6
C
Fixed Arm
(next to the
ceiling canopy)
Fixed Arm
(next to the
ceiling canopy)
ROTATE
ROTATE
ROTATE
Fixed Arm
(next to the
ceiling canopy) Ceiling
Canopy
STEP 2 Install Crystals-
A. Remove lock screws from sockets.
B. Attach Crystals (C) onto sockets and secure with previously removed
lock screws. Hand tighten until snug with screwdrivers gently.
Figure 2
Lock Screw
C
D
Socket
STEP 3 Install the Crossbar
to the junction box
-
.
A. Attach the Crossbar (A) to the
Outlet Box with the head of
the Green Ground Screw
facing you. Secure it with
Outlet Box Screws (not
included), tighten until snug
Outlet Box
A
Outlet Box Screw
(not included)
Figure 3
STEP 4 - Wire Connections
A. Wrap bare or green ground wire around green ground screw on the
crossbar, no less than 2 inches from the end of the wire. Tighten the
green ground screw.
B. Use standard wire connectors (not included) to make all wire
connections. Twist connectors until wires are tightly joined together.
Wrap each connection with approved electrical tape and carefully
stuff all the connected wires into the Outlet Box.
Figure 4
Green Ground Screw
on the Crossbar
White wire
from outlet box White wire
from fixture
Black wire from
outlet box (or Red)
Black wire
from fixture
Bare, or Green
Ground wire
from outlet box
Ground wire
from Fixture

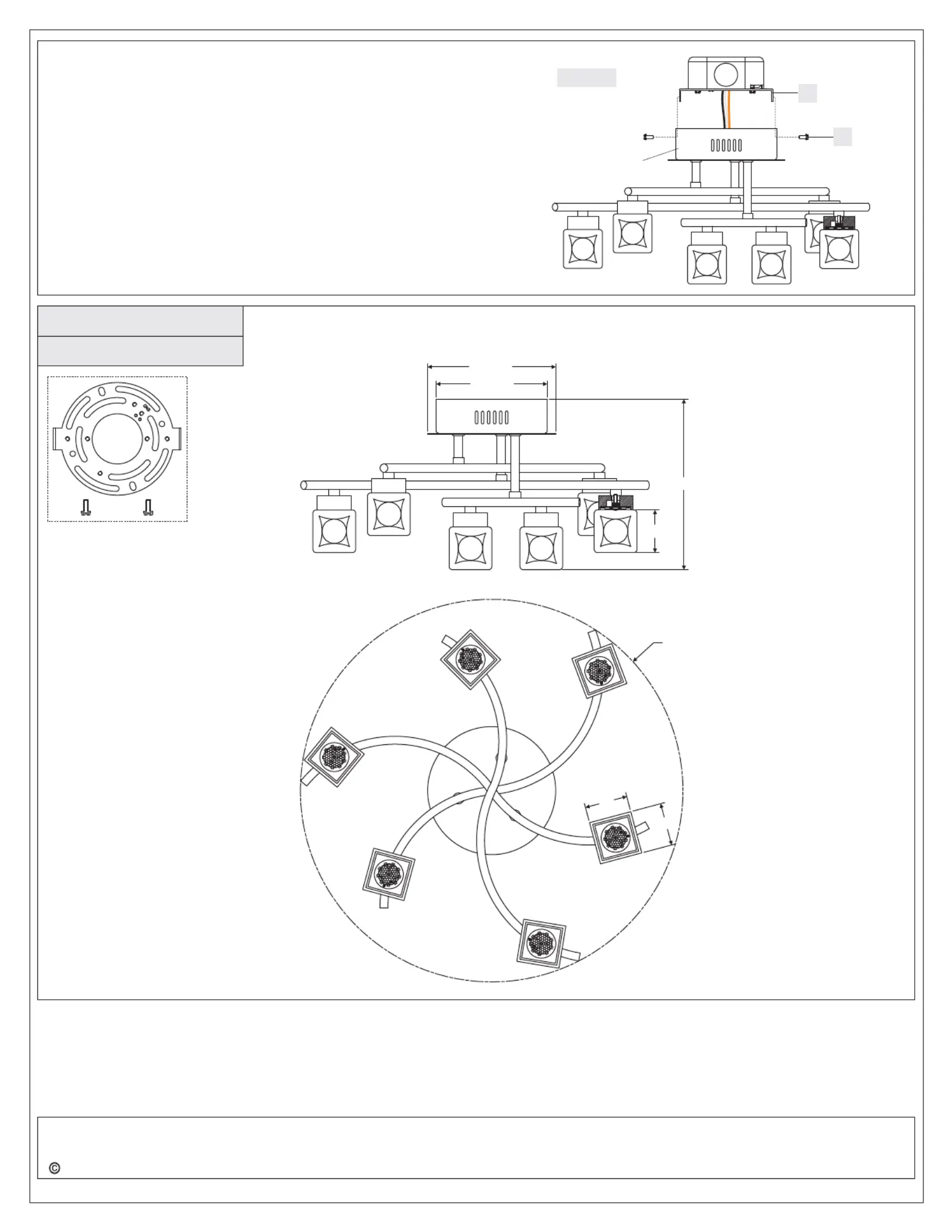

2of2
PCHL1718C
FINISH: POLISHED CHROME
2018 QuoizelInc. ReleasedDate:2018-02-05
Thank you for purchasing a Quoizel product.
Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184
or visit us on-line at www.quoizel.com
NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/4"
STEP 5 -Attach Ceiling Canopy to Crossbar
A. Line up the holes on the side of the ceiling canopy to the mounting
holes on the Crossbar (A). Secure them with Mounting Screws (B).
Tighten until sung.
Your fixture is now assembled and ready to use. Enjoy!
A
B
Ceiling
Canopy
Figure 5
5” Dia.
6” Dia.
8”
2”
19.25” Dia.
2”
2”
