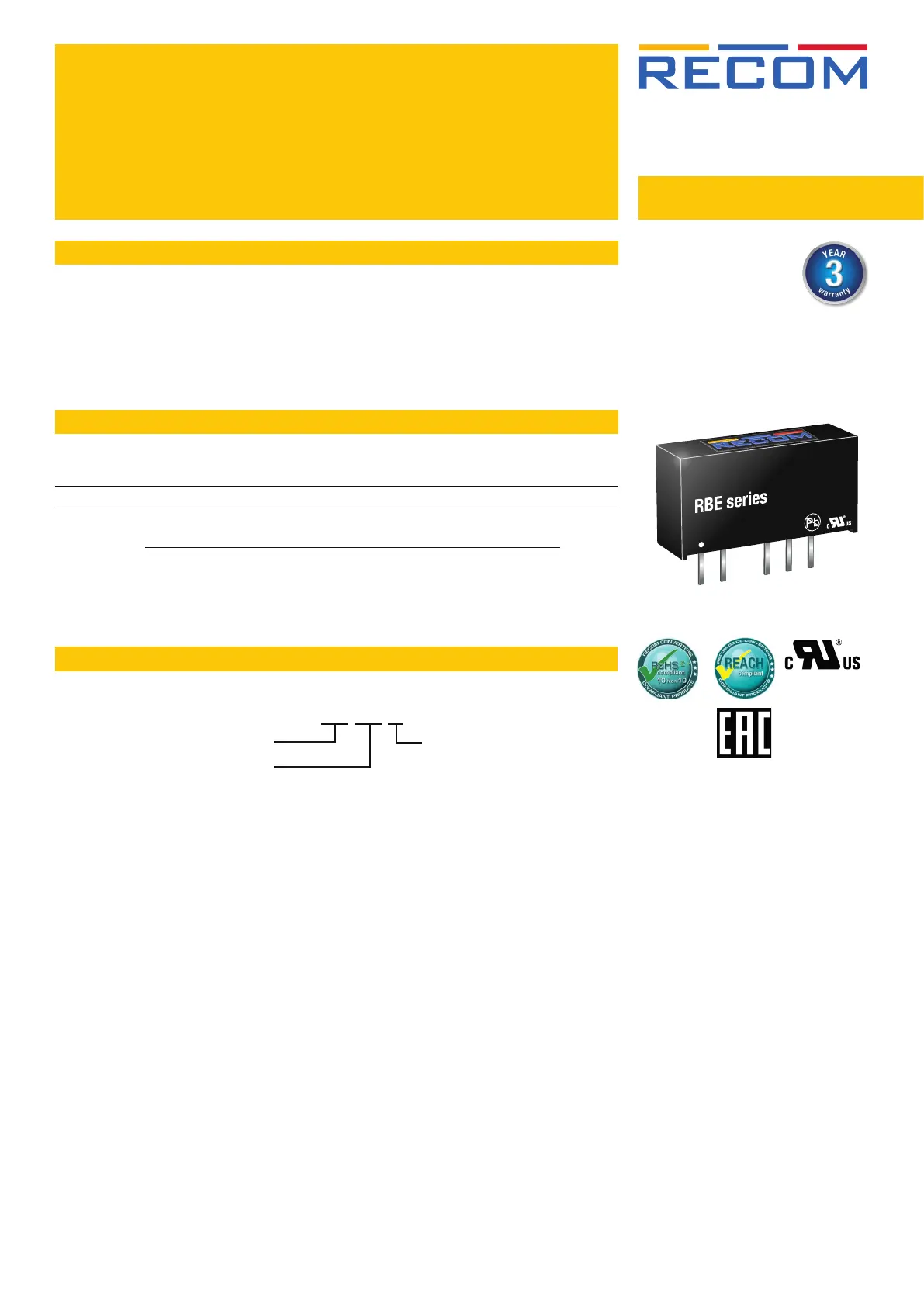

Features
Unregulated
Converters
• 1:1 input range
• Low cost 1W converter
• Efficiency up to 76%
• -40°C to +85°C operating temperature range
• EN/IEC/UL60950-1 certified
RBE
Description
The RBE-0505S is a low cost 1W DC/DC converters in a standard SIP7 footprint. This makes it suitable
for price sensitive industrial, test and measurement and high volume applications. The RBE converter is
pin-compatible with the RB converter series, but offers only the most popular 0505 voltage combination,
offering a simple way to cost-down an existing application. The RBE is fully certified to EN/IEC/UL/CSA/
EAC and comes with a 3 year warranty.
DC/DC Converter
1 Watt
SIP7
Single Output
E358085
UL60950-1 certified
CAN/CSA-C22.2 No 60950-1 certified
EN60950-1 certified
IEC60950-1 certified
Model Numbering
Ordering Examples:
RBE-0505S: 5VDC Input Voltage, 5VDC Output Voltage, Single Output
nom. Input Voltage
Output Voltage
RBE- 05 05 S
Single
Notes:
Note1: Efficiency is tested at nominal input and full load at +25°C ambient
Selection Guide
Part Input Output Output Efficiency (1)
Number Voltage Voltage Current max.
[VDC] [VDC] [mA] [%]
RBE-0505S 5 5 200 76

www.recom-power.com REV.: 1/2018 ECO-2
DC/DC Converter

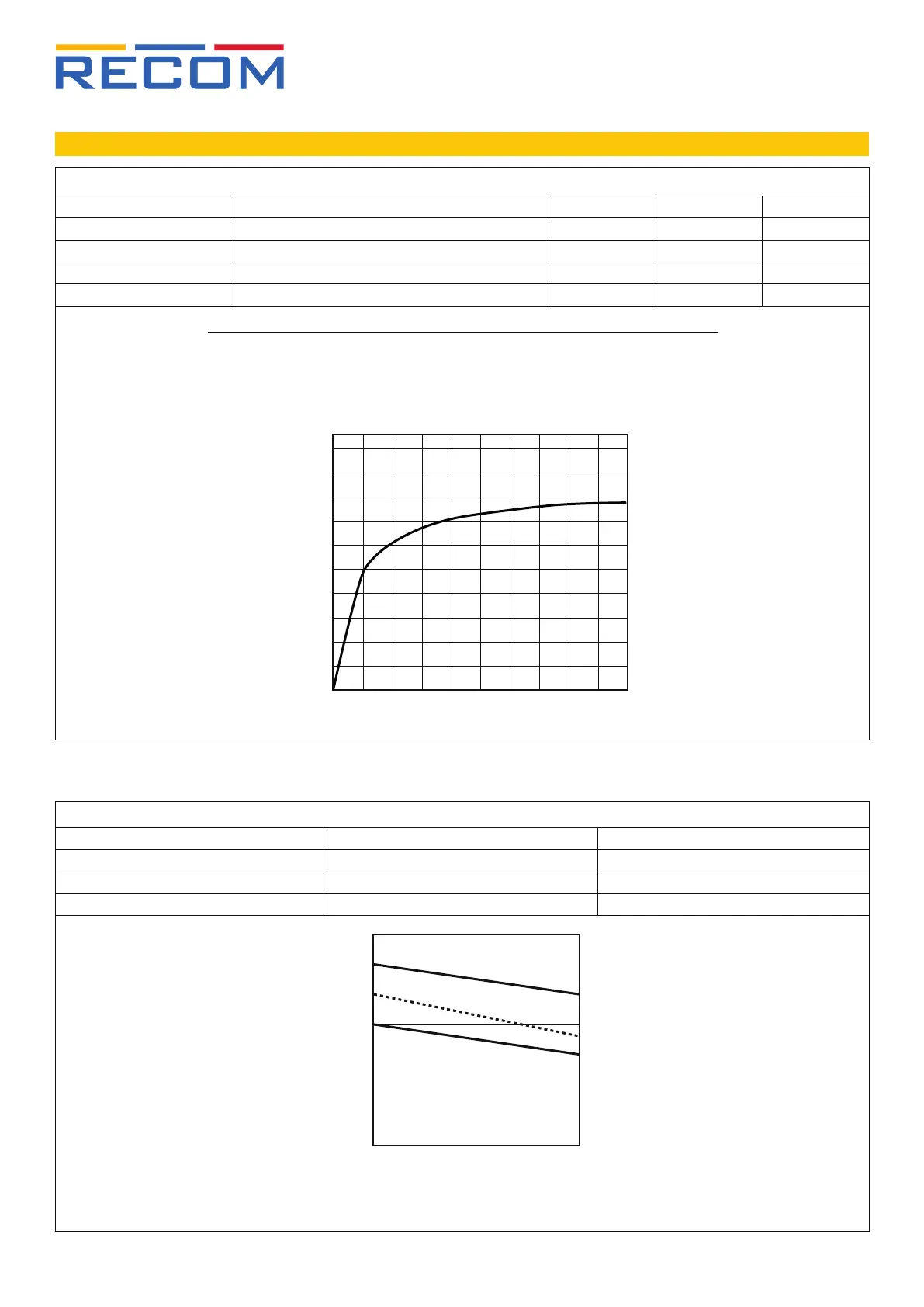

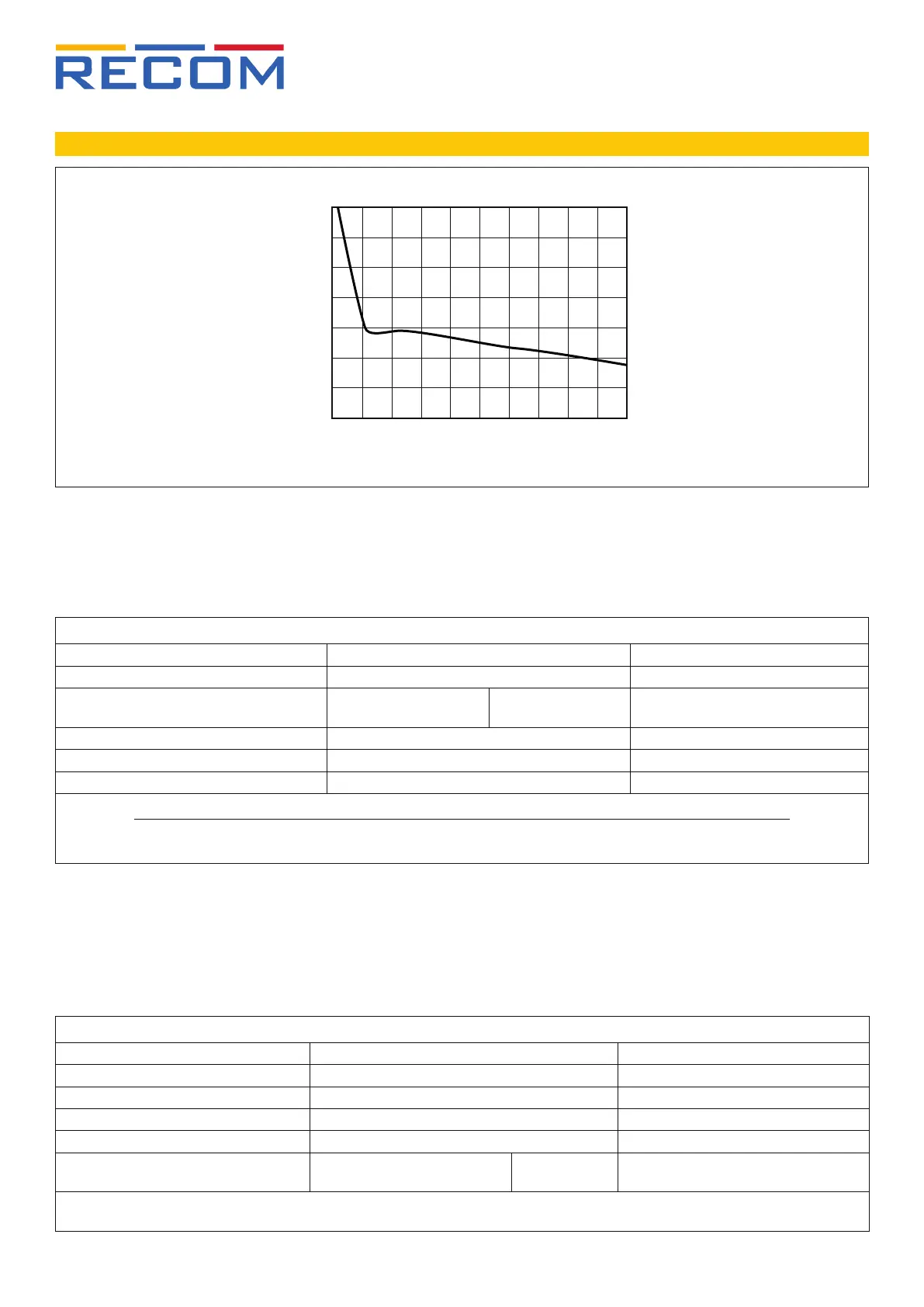

Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up otherwise stated)
RBE
Series
BASIC CHARACTERISTICS
Parameter Condition Min. Max.Typ.
Input Voltage Range ±10%
Minimum Load (2) 0%
Internal Operating Frequency 50kHz 82kHz 105kHz
Output Ripple and Noise 20MHz BW 52mVp-p 100mVp-p
Notes:
Note2: Operation below 10% load will not harm the converter, but specifications may not be met
Efficiency vs. Load
RBE-0505S
0 10 20 30 40 50 60 70 80 90 100
100
80
60
40
90
70
50
30
20
10
0
Efficiency [%]
Output Load [%]
REGULATIONS
Parameter Condition Value
Output Accuracy -2% typ. / ±5.0% max.
Line Regulation low line to high line ±1.2% typ.
Load Regulation 20% to 100% load 10.0% typ.
continued on next page
Tolerance Envelope
+10%
+5%
Vnom
+5%
-2%
-5%
Output Voltage [%]
10 50 100
Output Load [%]
Typical Load Line

www.recom-power.com REV.: 1/2018 ECO-3
DC/DC Converter
Specifications (measured @ Ta= 25°C, nom. Vin, full load and after warm-up otherwise stated)
RBE
Series
Deviation vs. Load
25
15
5
-50
20
10
0
-10
Deviation [%]
0 10 20 30 40 50 60 70 80 90 100
Output Load [%]
PROTECTIONS
Parameter
Type
Value
Short Circuit Protection (SCP) 1 second
Isolation Voltage (3) I/P to O/P tested for 1 second
rated for 1 minute
1kVDC
500VAC
Isolation Resistance 1G min.Ω
Isolation Capacitance 75pF max.
Insulation Grade basic
Notes:
Note3: For repeat Hi-Pot testing, reduce the time and/or the test voltage
Note4: Refer to local wiring regulations if input over-current protection is also required. Recommended fuse: T1A slow blow type
ENVIRONMENTAL
Parameter Condition
Value
Operating Temperature Range full load (see graph) -40°C to + 85°C
Operating Altitude 2000m
Operating Humidity non-condensing 95% RH max.
Pollution Degree PD2
MTBF according to MIL-HDBK-217F, G.B. +25°C
+85°C
2400 x 103 hours
650 x 103 hours
continued on next page
