Sivu 1/24
10/2010-v4H1S025
WARRANTY
This KOOLATRON product is warranted to the retail consumer for 90 days from
date of retail purchase, against defects in material and workmanship.
WHAT IS COVERED
- Replacement parts and labor.
- Transportation charges to customer for the repaired product.
WHAT IS NOT COVERED
- Commercial or industrial use of this product.
- Damage caused by abuse, accident, misuse, or neglect.
- Transportation of the unit or component from the customer to Koolatron.
IMPLIED WARRANTIES
Any implied warranties, including the implied warranty of merchantability are
also limited to duration of 90 days from the date of retail purchase.
WARRANTY REGISTRATION
Register on-line at www.koolatron.com AND keep the original, dated, sales
receipt with this manual.
WARRANTY AND SERVICE PROCEDURE
If you have a problem with your unit, or you require replacement parts, please
telephone the following numbers for assistance:
North America 1-800-265-8456
Koolatron has Master Service Centres at these locations:
Koolatron USA Koolatron Canada
4330 Commerce Dr. 27 Catharine Ave.
Batavia, NY Brantford, ON
14020-4102 N3T 1X5
U.S.A. CANADA
A Koolatron Master Service Centre must perform all warranty work. Service
after warranty may be obtained at a Master Service Centre or at an authorized
service dealer. Purchase Receipt is required to establish warranty eligibility.
Owner’s Manual & Recipe Guide
KMJ-01
POWER JUICER

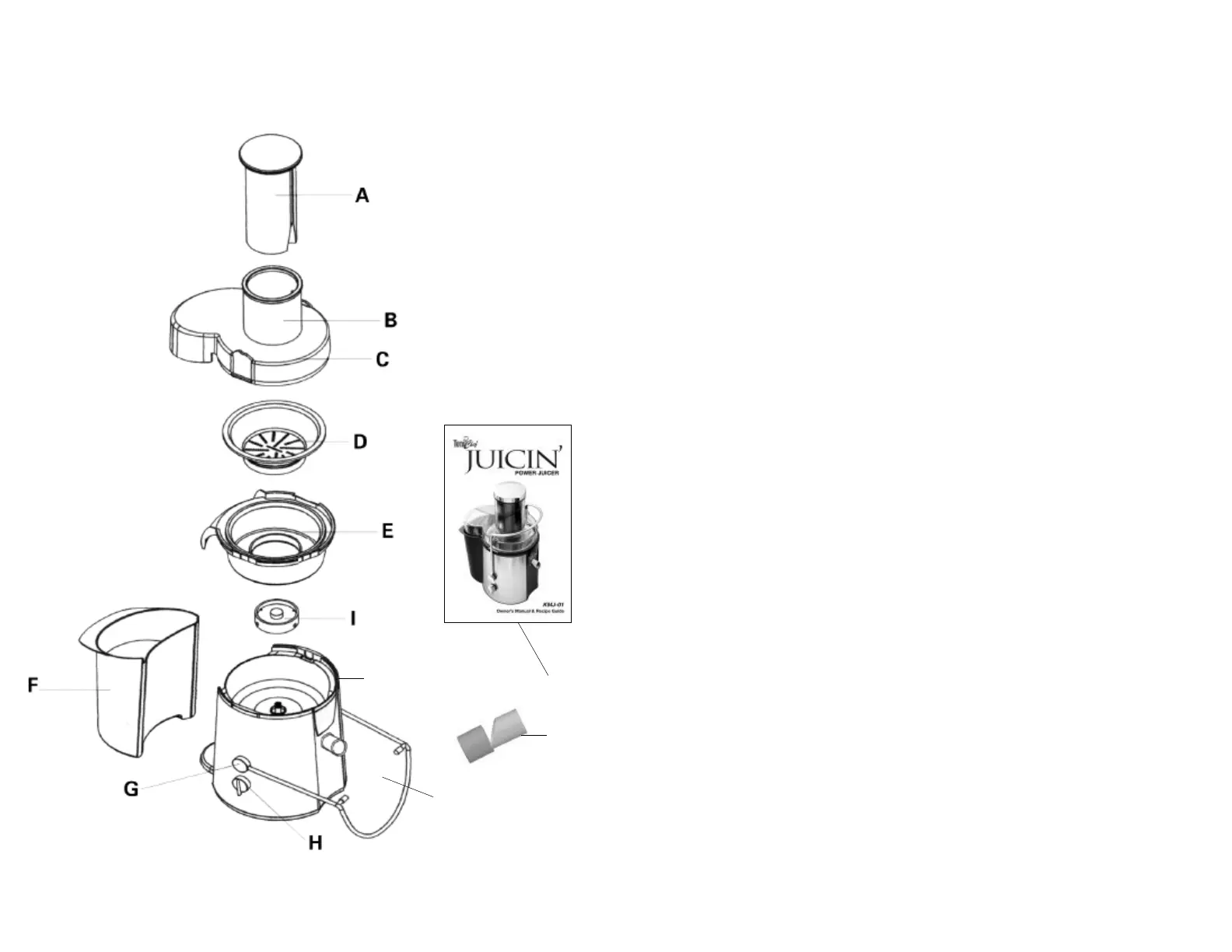

PARTS DESCRIPTION
A) Plunger
B) Feeding Tube
C) Lid
D) Filter
E) Juice Collector
F) Pulp Container
G) Clamps
H) Control Knob
I) Driving Shaft
(Do not remove)
J) Motor Unit
K) Spout
L) Manual
M) No-Drip Cap
•2• •3•
K
J
FEATURES
• 700 Watt Motor
• Dual Speed Selector
• 22,000 RPM’s
• Surgical Steel Juicing Blade
• Auto Shut-Off
• No-Drip Cap
• Wide Chute Opening
• Suction Cups for Sturdy Placement
L
IMPORTANT SAFEGUARDS
READ THESE INSTRUCTIONS FOR USE CAREFULLY BEFORE USING THE
JUICER AND SAVE THEM FOR FUTURE USE!
• Do not use the appliance when the cord, plug or other components are
damaged.
• If the cord is damaged it must be replaced by the manufacturer or its service
agent.
• This appliance is intended for household use only.
• Keep the appliance out of reach of children.
• Check the filter every time you want to use the appliance. If you detect any
cracks or damage, do not use the appliance.
• Make sure all parts are correctly mounted before you switch on the
appliance.
• Only use the appliance when the clamp is locked.
• Do not operate the juicer for more than 40 seconds at a time when
juicing heavy loads, allowing sufficient cool down time between uses.
• reach into the feeding tube with your fingers or with an object whileNEVER
the appliance is running. Only the pusher is to be used for this purpose.
• Only unlock the clamp after you have switched the appliance off and the filter
has stopped rotating.
• Do not touch the small cutting blades in the base of the filter.
• Always unplug the appliance after use.
• Never immerse the motor unit in water or any other liquid.
Do not rinse it either.
M
4. Hold the lid over the filter and lower it into position.
5. Snap the two clamps onto the lid to lock it into place. (You
will hear a click).
NOTE: Make sure the clamp is locked into position on both
sides of the lid.
6. Slide the pusher into the feeding tube by aligning the
groove in the pusher with the small protrusion on the
inside of the feeding tube.
•4• •5•
3. Put the filter in the juice collector. Make sure the filter is
fitted securely onto the driving shaft. The blade should sit
below the rim of the pulp container when in place.
DIRECTIONS FOR USE
KNOB:
Off
Position 1 - Standard Speed
(For most fruits & vegetables)
Position 2 - High Speed (For hard skin &
tough foods)
Off
Position 1
Position 2
The Juicer will only function if all parts have been properly assembled and the
lid has been properly locked in place with the clamps.
After you have processed all ingredients and the juice flow has stopped, switch
the appliance off and wait until the filter has stopped rotating.
1. For oversized pieces, wash the fruit and/or vegetables
and cut them into pieces that fit into the feeding tube.
2. Make sure your glass or pitcher sits under the spout to
collect the juice.
3. Put the pieces in the feeding tube and gently press
them towards the rotating filter by means of the pusher.
NOTE: Do not exert too much pressure on the pusher, as
this could affect the quality of the end result and it could
damage the filter.
PREPARING FOR USE
1. Place the juice collector into the appliance. Make sure the
rim is flush with the motor unit.
2. Place the pulp container into the appliance by tilting it
forwards slightly. Insert the top end first and then push
down the bottom end.
NOTE: While you are preparing juice, you can empty the
pulp container by switching the appliance off and carefully
removing the pulp container. Reassemble the empty pulp
container before you continue juicing.
“NO-DRIP” CAP:
The Juice Guru is equipped with a “No-Drip” Cap. When you
do not want juice to come out, simply slide the cap over the
spout to block the opening. Wash after every use.
WARNING: Make sure you remove the cap before juicing to
prevent backflow or damage to the unit.
