Installation Manual
Manual de Instrucciones
Manuel d’Installation
Urinal
Urinario
Urinoir
UT105U(V)(G)
UT104E(V)
UT445U(V)
UT447E(V)
2
ENGLISH
TABLE OF CONTENTS
THANKS FOR CHOOSING TOTO!
The mission of TOTO is to provide the world with healthy, hygienic and more
comfortable lifestyles. We design every product with the balance of form and
function as a guiding principle. Congratulations on your choice.
COMMON TOOLS NEEDED
INCLUDED PARTS
BEFORE INSTALLATION
Thanks for Choosing TOTO! 2 ..............................................................................
Included Parts 2 ......................................................................................................
Common Tools Needed 2 ......................................................................................
Before Installation 2 ................................................................................................
Rough-in Dimensions 3 ..........................................................................................
Installation Procedure 4 ..........................................................................................
Urinal Strainer Installation 5 ...................................................................................
Warranty................................................................................................................ 6
Check to make sure you have all these parts from the package:
Urinal w/ Spud
2 Hangers
required for
UT445U(V),
UT447E(V)
MATERIALS REQUIRED:
(Not Included)
• Flush Valve • Stop Valve
• 12” pipe wrench
• 10” adjustable wrench
• Carpenter’s Level
• Screwdriver
• Drill
• Tape Measure
Outlet Flange,
108mm & 152mm pitch
If you are installing this product in a new construction or remodel, please
make sure you are following all local plumbing and building codes. Carefully
unpack and examine your new fixture for damage. To help ensure that the
installation process will proceed smoothly and correctly, please read these
instruction carefully before you begin.
CAUTION
Ignoring these symbols may cause personal injury and/or
property damage.
Strainer,
UT105U(V)(G),
UT445U(V)
3
ENGLISH

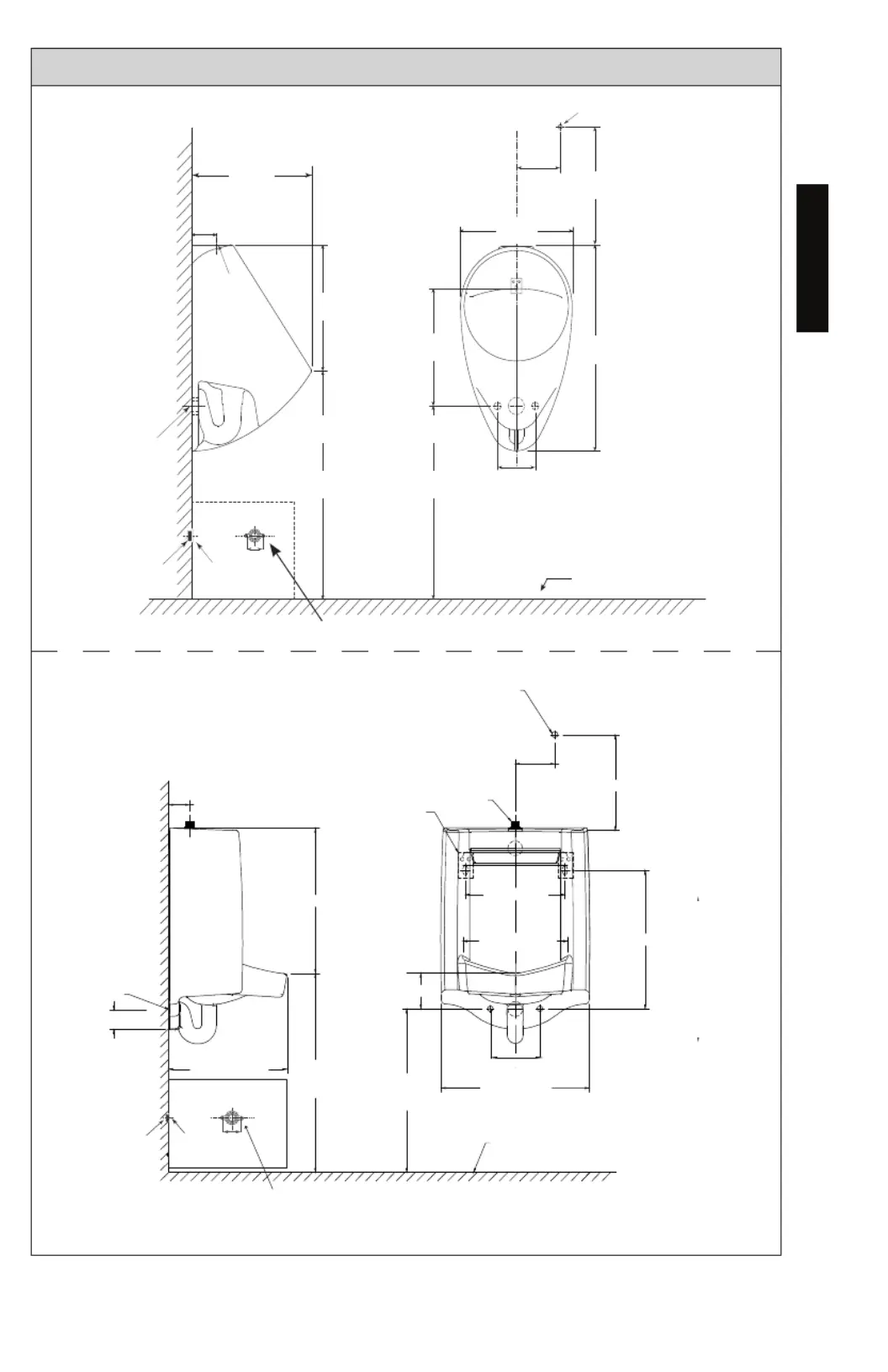

ROUGH-IN DIMENSIONS
2-1/2" (61mm)
12-1/4"
(310mm)
17" (ADA)
(432mm)
24"
(610mm)
3/4"
(19mm)
Spud
Outlet
Finished
Finished Floor
Wall
2"
(51mm)
I.P.
Inside
Threads
Gasket 4-1/4"
(108mm)
Outlet Detail
14"
(356mm)
C/L
3/4" (19mm) I.P.S. Supply for
flushometer Vavlve
21-1/4"
(540mm)
11-1/2"
(292mm)
10-3/8"
(264mm)
12-1/4"
(310mm)
4-3/4"
(121mm)
4-1/4"
(108mm)
19-1/4"
(490mm)
12-1/4" (ADA)
(311mm)
Outlet Flange
2”
(51mm)
OUTLET
FINISHED
WALL
I.P.
Inside
Threads
Gasket 6"
(152mm)
Outlet Detail
Outlet Flange
2-3/8" (61mm)
17-1/2" (445mm)
3/4" (19mm)
12" (305mm)
4 3/4" (121mm)
11 1/2" (292mm)
12 5/8" (320mm) 16 3/4" (424mm)
17 3/4" (451mm)
6" (152mm)
19 5/8" (500mm)
OR
** 12 5/8” (321mm)
FINISHED FLOOR
4 3/8" (110mm)
3/4" (19mm) I.P.S SUPPLY
FOR FLUSHOMETER VALVE
2-1/2" (63.5mm)
14-1/4" (362mm) 24" (610mm)
OR
**17” (432mm)
HANGER
SPUD
