Sivu 1/36
INSTRUCTION MANUAL
LED STREET LIGHT WITH ADJUSTABLE ANGLE
TECHNICAL DATA
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions care-
fully before starting the installation and keep this manual handy for future reference. If you have any another query,
please contact our dealer or local vendor from whom you have purchased the product. They are trained and ready
to serve you at the best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to
damage caused by incorrect installation or abnormal wear and tear. The company gives no warranty against damage
to any surface due to incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily
operation. Usage of product for 24 Hours a day would void the warranty. This product is warranted for manufacturing
defects only.
MODEL VT-55ST VT-105ST
SKU 23618, 23619 23620, 23621
WATTS 50W 100W
LUMENS@WIDE CODE 4700 LM 9400 LM
BEAM ANGLE 100° 100°
DF >0.9 >0.9
CRI ≥80 ≥80
OPERATION
TEMPERATURE -20°C to +40°C -20°C to +40°C
LIFE SPAN 30,000 Hours 30,000 Hours
ON/OFF CYCLE 20,000 Times 20,000 Times
NET WEIGHT (g) 670 1035
INPUT VOLTAGE AC: 220-240V, 50/60Hz
MOUNTING DIAMETER 60 mm 60 mm
MOUNTING HEIGHT 3-5m 5-8 m
MAX. PROJECTED
AREA 20-30m230-40m2
BODY TYPE Aluminium+PC Aluminium+PC
DIMENSION 412x139x92mm 488x183x92mm
MULTI-LANGUAGE
MANUAL QR CODE
Please scan the QR code
to access the manual in
multiple languages.
This marking indicates that this product
should not be disposed of with other
household wastes.
Caution, risk of electric shock.

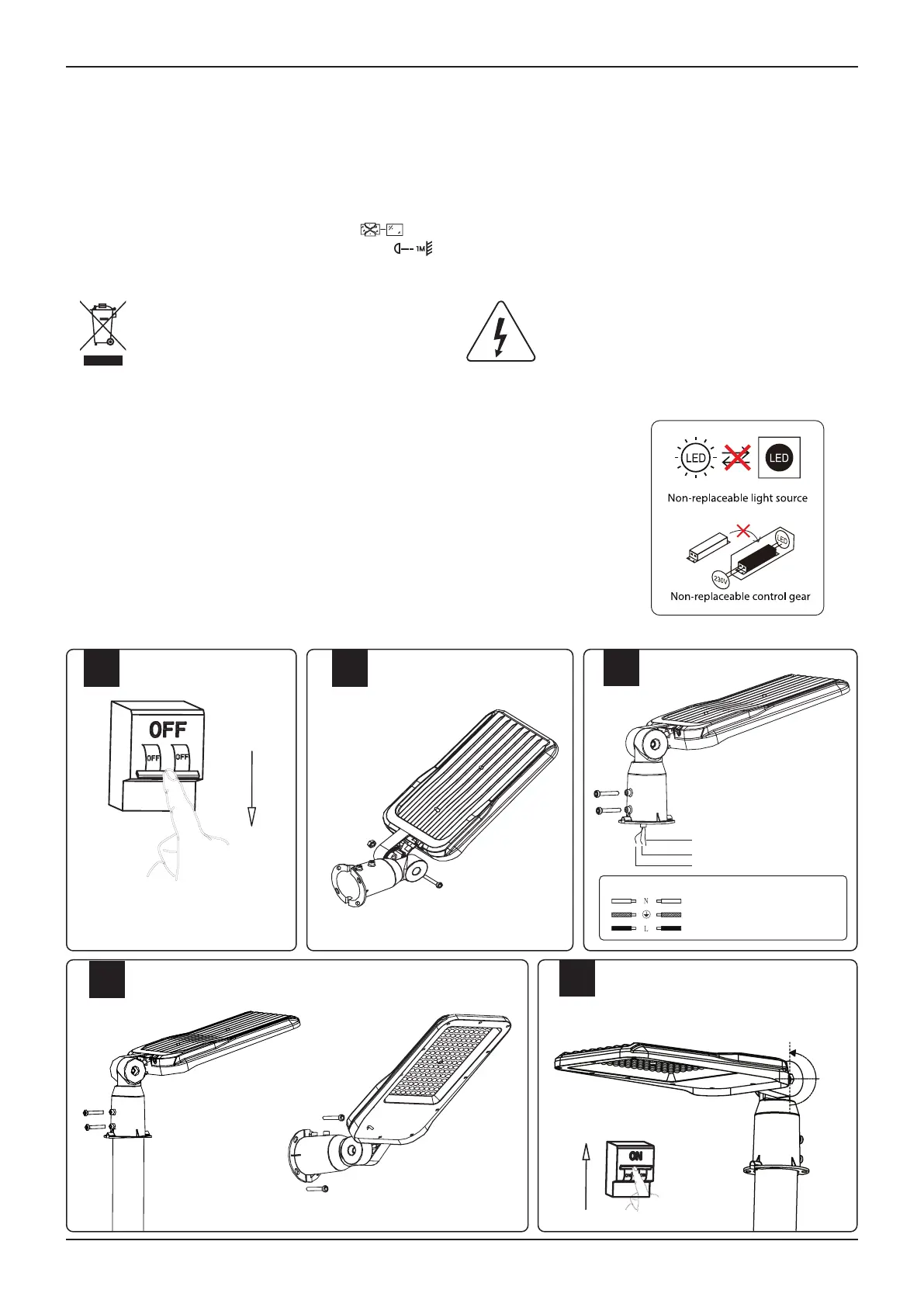

INSTALLATION INSTRUCTIONS
WARNING
1. Please make sure to turn o the power before starting the installation.
2. Installation must be performed by a qualified electrician.
3. The light source of this luminaire is not replaceable, when the light source reaches its end of life the whole
luminaire should be replaced.
4. If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the man-
ufacturer or his service agent or a similar qualified person in order to avoid a hazard.
5. Replace any cracked protective shield.
6. Minimum distance from lighted objects 1m.
7. Terminal block not included.
8. Proper grounding should be ensured throughout the installation.
1. Switch O the power before starting the installation.
2. Connect the wiring (brown wire to Live wire, the blue line to Neutral wire,
yellow/green line to ground wire) to the luminaire as displayed in the wiring
diagram. Please make sure to use 3 core power cord and ensure the ground
wire must be grounded. (Outer wire size 250mm ±10mm)
3. Loosen the M6 screws using the screwdriver and install the streetlight on
the pole. Then tighten the M6 screws and ensure the streetlight is properly
installed on the pole. Or screw it directly to the wall.
4. Adjust the angle of the street light within a 180-degree range to suit your
lighting needs.
5. Switch On the power to test the light.
Neutral Supply can be Blue or Black
Ground Supply Can be Green-yellow
Live Supply Can be Red or Brown
WIRING DIAGRAM
1 2 3
45
Adjustable Angle
180°
Yellow Green
Brown
Blue
OR
NOTE
• Wiring instructions: The power should be connected to binding post inside the junction box, which IP
grade should be higher than the lmap’s IP grade. And the junction box should have fasten device for
the wires. Inside terminal block shall conform to EN 60998-2-1 or EN 60998-2-2 (specification: three
terminals, atleast 250V and 1.5mm2).
• User should prepare all the necessary accessories and spare parts (Spare parts not provided) includ-
ing junction box.
• Inspect the lamps and lanterns before installation to ensure no damage or deformation.
• Protect the lamps and lanterns during installation and maintenance, ensure all fittings are fixed,
connect the lamp body to the light pole using screws, and ensure the screw torque is less than 10.5
N.m.
• During maintenance and installation, ensure all parts are intact and replace any damaged or defective
parts.
• The lamps and lanterns use a double insulated wire for the power cord, replace it with a professional
if there’s any breakage to avoid danger.
• It’s normal for the lamps and lanterns surface to have a certain temperature when in use.
In case of any query/issue with the product, please reach out to us at: support@v-tac.eu
For More products range, inquiry please contact our distributor or nearest dealers.
V-TAC EUROPE LTD. Bulgaria, Plovdiv 4000, bul.L.Karavelow 9B
