Aguilar OBP-3 Käyttöohje

Lue alta 📖 käyttöohje suomeksi merkille Aguilar OBP-3 (6 sivua) kategoriassa Vastaanotin. Tämä opas oli hyödyllinen 2 henkilölle ja sai 4.5 tähden keskimäärin 2 käyttäjältä

Sivu 1/6

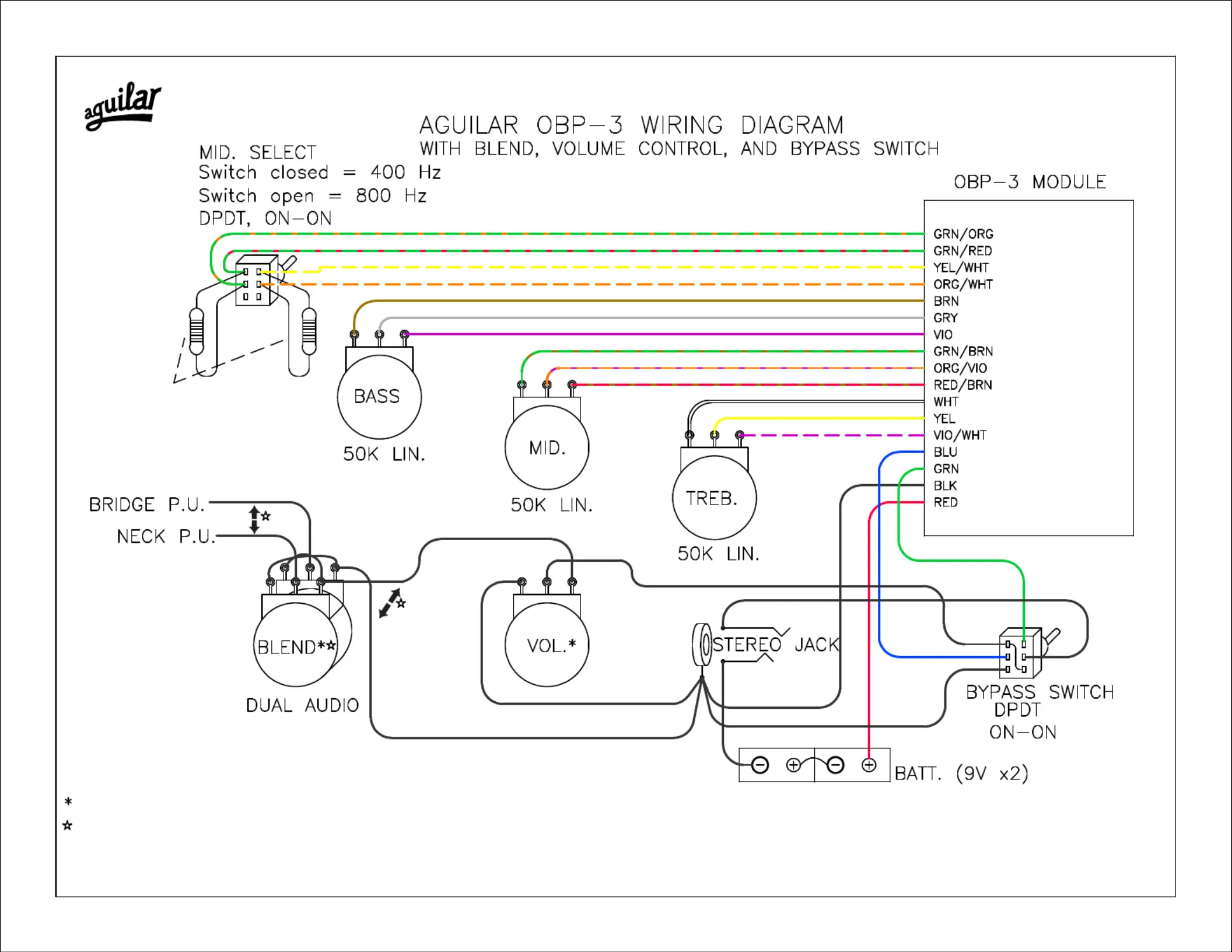

To wire MN (1Z2Z) taper potentiometer, swap positions of the following wires: Bridge P.U. and Neck P.U.; Volume jumper and GND.
Value depends on pickups. Use values recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-3.
Pots shown rear view.
For single pickup, eliminate blend pot - wire pickup directly to volume pot.
GND
1Meg, 1/4W resistors optional,
they reduce switch click.
MID.SELECT switch can be a stand alone switch or part of the push-pull potentiometer. Wiring is the same in both cases.

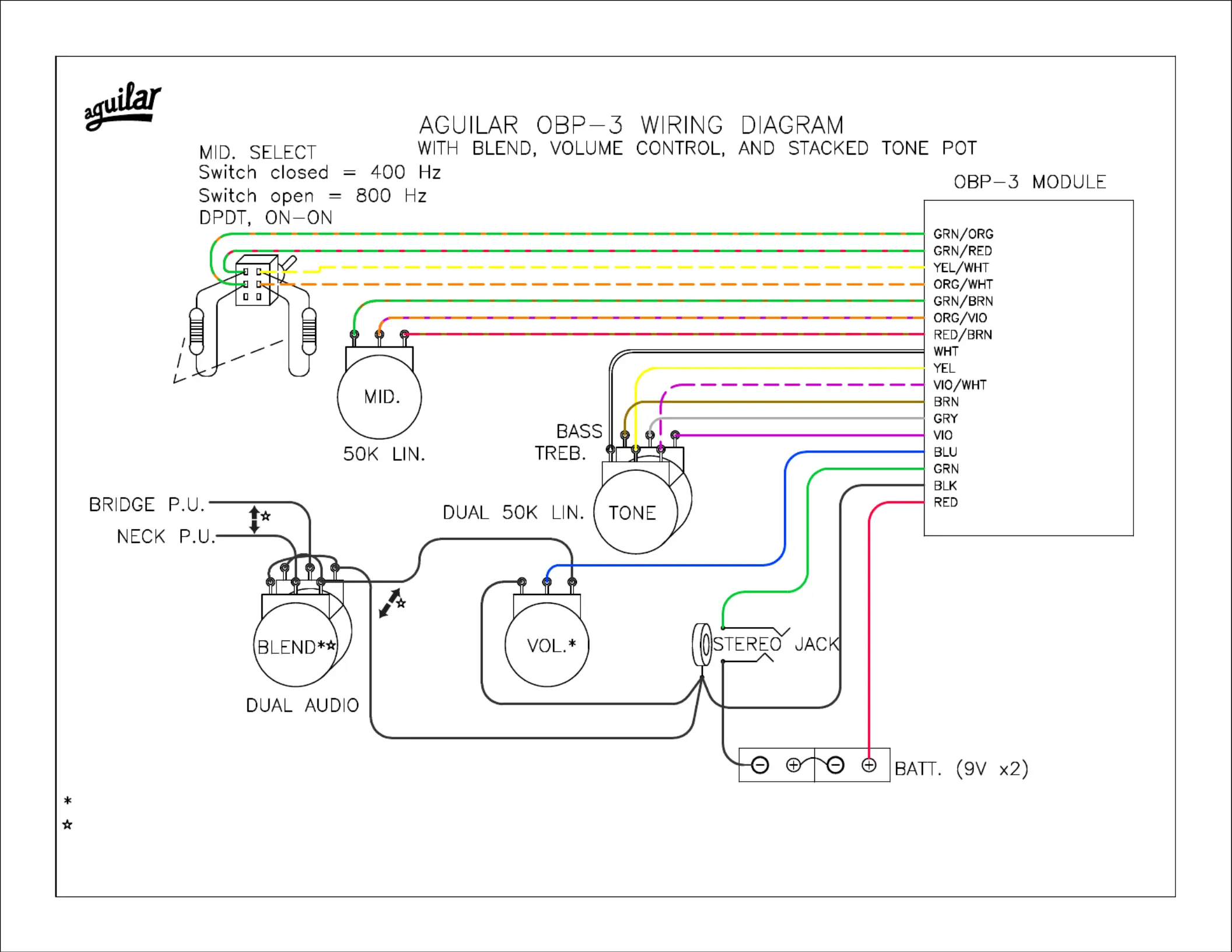

To wire MN (1Z2Z) taper potentiometer, swap positions of the following wires: Bridge P.U. and Neck P.U.; Volume jumper and GND.
Value depends on pickups. Use values recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-3.
Pots shown rear view.
For single pickup, eliminate blend pot - wire pickup directly to volume pot.
GND
1Meg, 1/4W resistors optional,
they reduce switch click.
MID.SELECT switch can be a stand alone switch or part of the push-pull potentiometer. Wiring is the same in both cases.
GND
To wire MN (1Z2Z) taper potentiometer, swap positions of the following wires: Bridge P.U. and Neck P.U.; Volume jumper and GND.
Value depends on pickups. Use values recommended by pickup manufacturer.
Inserting 1/4” plug applies power to OBP-3.
Pots shown rear view.
For single pickup, eliminate blend pot - wire pickup directly to volume pot.
1Meg, 1/4W resistors optional,
they reduce switch click.
MID.SELECT switch can be a stand alone switch or part of the push-pull potentiometer. Wiring is the same in both cases.
