Sivu 1/4
I N S T A L L A T I O N I N S T R U C T I O N S
Patent Pending
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Tempo™ Flat Panel Wall Mount System, PDU Bundle
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
AS3LDP7
AS3LDP7 Installation Instructions
2
DISCLAIMER
Legrand AV and its affiliated corporations and subsidiaries
|
(collectively “Legrand AV”), intend to make this manual |
accurate and complete. However, Legrand AV makes no claim |
that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Legrand AV
|
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Legrand AV
|
assumes no responsibility for accuracy, completeness or
sufficiency of the information contained in this document.
Chief® is a registered trademark of Legrand AV Inc.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING: TO REDUCE THE RISK OF
BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS:
• Always turn off power at source before putting on or
taking off parts.
• Use this mounting system only for its intended use as
described in these instructions. Do NOT use
attachments not recommended by the manufacturer.
• Never operate this mounting system if it has a
damaged test cord or test plug. If it is not working
properly during testing, return the mounting system to
a service center for examination and repair.
• Keep the test power cord away from heated surfaces.
• Never operate the mounting system with the air
openings blocked. Keep the air openings free of lint,
hair, and the like.
• Never drop or insert any object into any opening.
• Do not use outdoors unless marked for outdoor use.
• Route cords and cables as shown in the installation
instructions.
• To disconnect, turn all controls to the off position, then
turn off power at source.
WARNING: RISK OF ELECTRIC SHOCK!
Connect this mounting system to a properly grounded outlet
only. See Grounding Instructions.
WARNING: Do not use this product outdoors.
--SAVE THESE INSTRUCTIONS--

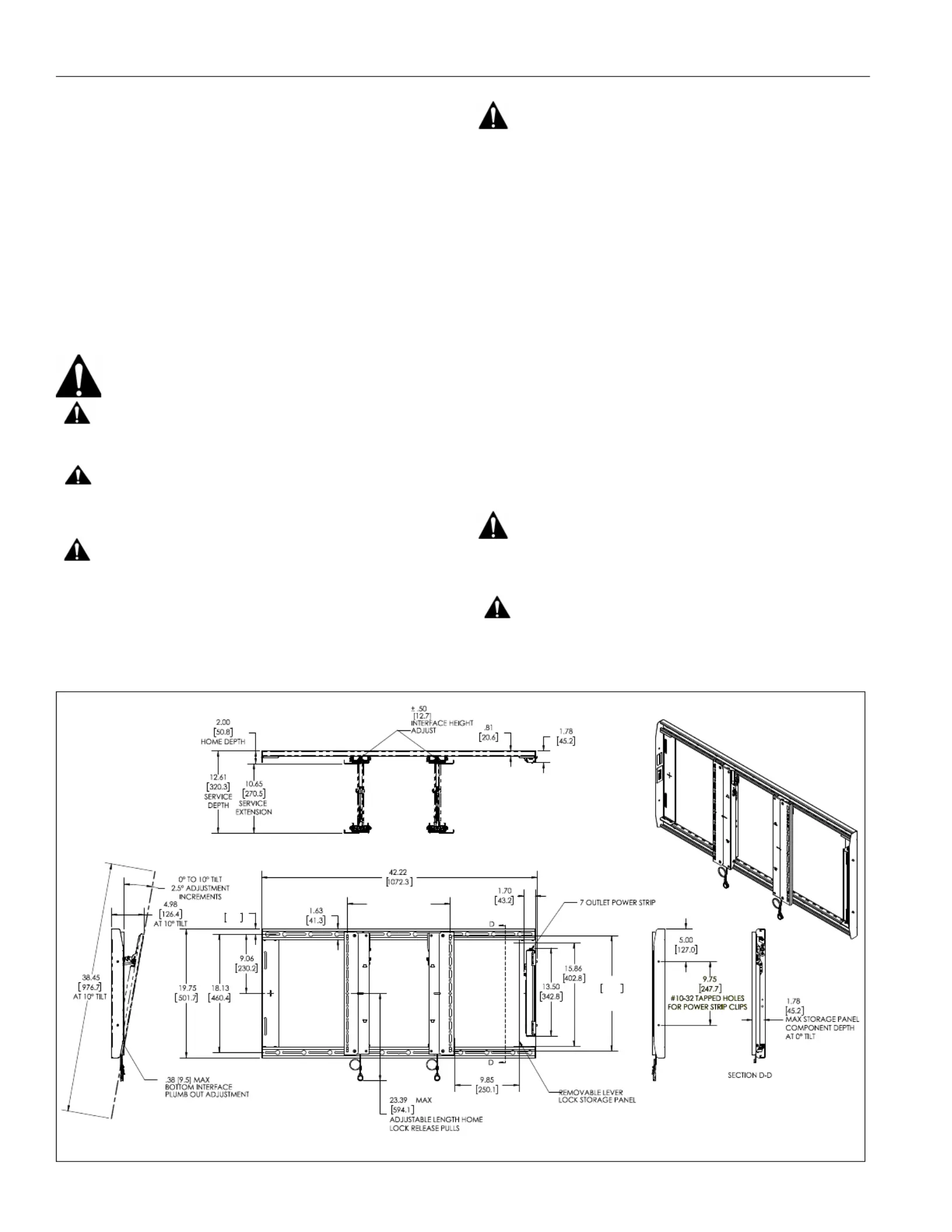

DIMENSIONS
DIMENSIONS: [MILLIMETERS]
INCHES
38.22 [970.7] M AX
7.84 [200] MIN
DISPLAY PATTERN
WIDTH
17.72
450.0
MAX D ISPLAY
PATTERN HEIG HT
.81
20.6
Installation Instructions AS3LDP7
3

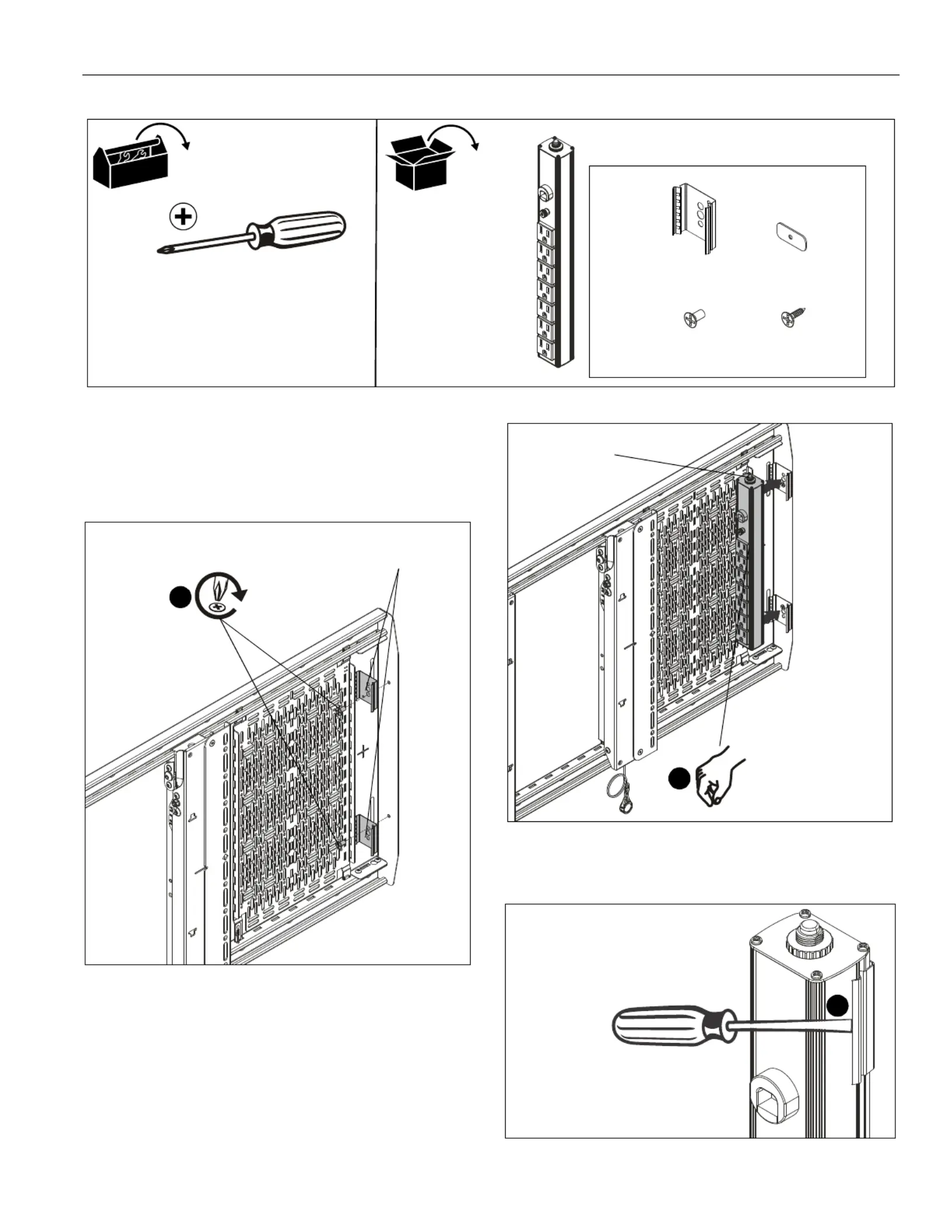

TOOLS / PARTS FOR INSTALLATION
A (1)
[15 amp
power strip]
#10-32 x 3/8"
B (2)
[Power strip
Bracket]
C (2)
Hardware Bag
D (2)
[Nut - not used]
E (2)
[Wood screw - not used]
ASSEMBLY AND INSTALLATION
1. Install AS3LD wall mount to wall following AS3LD
installation instructions.
2. Use two #10-32 x 3/8" Phillips undercut screws (B) to secure
two power strip brackets (B) to side of AS3LD mount. (See
Figure 1)
Figure 1
3. Install power strip (A) into brackets installed in Step 2.
Power strip should "click" into place securely. (See Figure 2)
NOTE: Make sure power strip is installed with enough
clearance for end circuit breaker use.
Figure 2
4. Use a flathead screwdriver to gently pry power strip (A) from
brackets (B) to remove as needed. (See Figure 3)
Figure 3
2
(C) x 2
(B) x 2
3
(A)
circuit breaker
4
