I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
TS318SU (single stud)
TS318TU (dual stud)
TS325TU (dual stud)
Medium Swing Arm Mounts
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
TS318SU/TS318TU/TS325TU
TS318SU/TS318TU/TS325TU Installation Instructions
2
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and
subsidiaries (collectively "Milestone"), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief® is a registered trademark of Milestone AV Technologies.
All rights reserved.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this component can result in serious personal injury or
damage to equipment! It is the installer’s responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component.
WARNING: The wall to which the mount is being attached
may have a maximum drywall thickness of 5/8" (1.6cm) when
installing any of the mounts to wood studs. If installing the
TS318SU mount to poured concrete or hollow concrete, the
wall CANNOT have ANY drywall covering! For the TS318TU
and TS325TU, the wall CANNOT have ANY drywall covering
if installing to poured concrete but may have a maximum
drywall thickness of 5/8" (1.6cm) if installing to hollow
concrete block. Do not install drywall anchors into the seam
between drywall pieces.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components attached does not exceed 75 lbs (34 kg).
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: Do not use this product outdoors.
--SAVE THESE INSTRUCTIONS--
Installation Instructions TS318SU/TS318TU/TS325TU
3

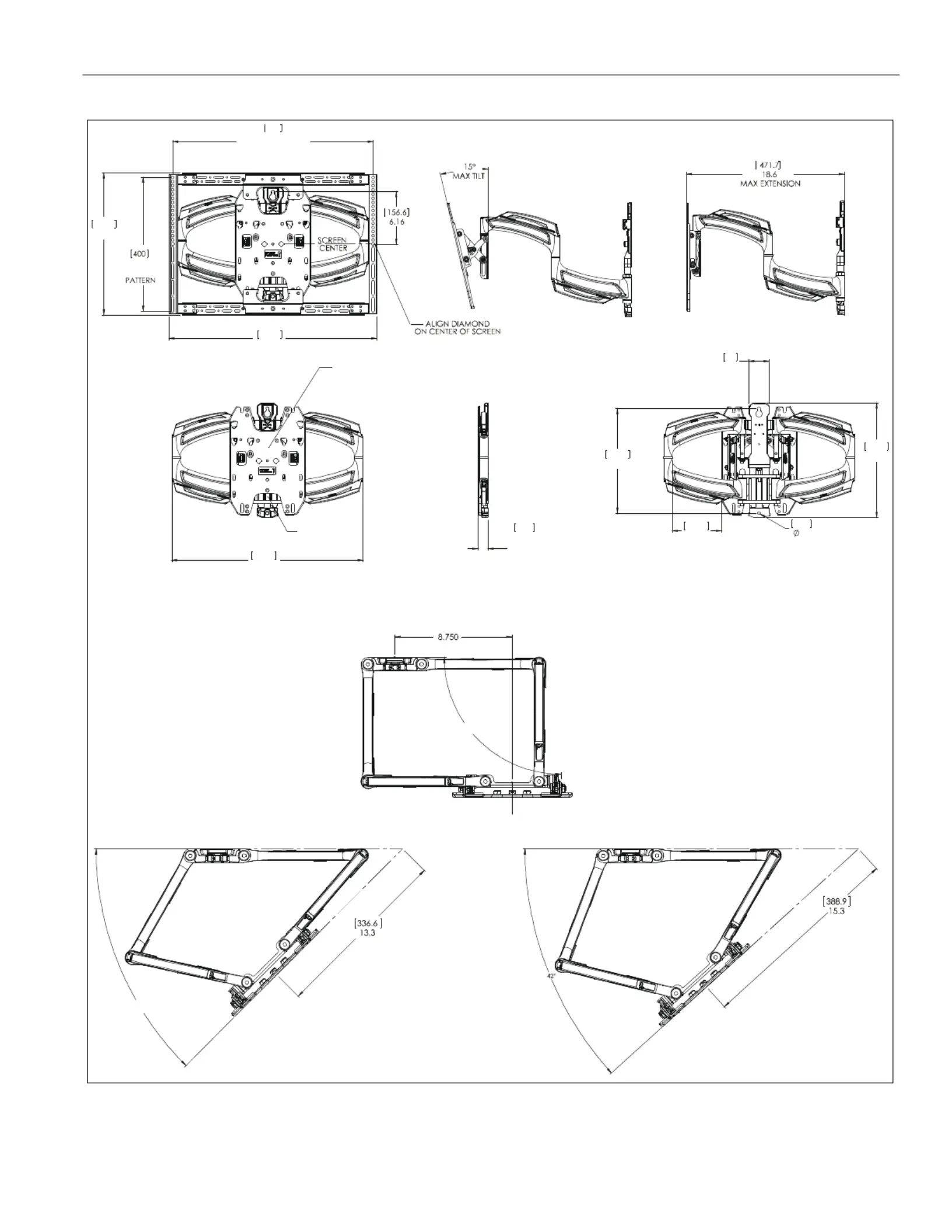

DIMENSIONS
90°
C/L OF SCREEN
45°
C/L OF SCREEN
C/L OF SCREEN
22.56
573.1
1" (25.4 mm)
HEIGHT ADJUSTMENT
100 X 100
100 X 200
200 X 200
MOUNTING PATTERNS
ON FACEPLATE
INTERFACE NOT REQUIRED
1.8
DEPTH
[48.2]
1.9
WITH INTERFACE
45.7
12.3
313.3
.34
8.64
5.75
146.1
13.5
342.8
2.36
60
24.46
621.2
16.71
424.5
23.62
MAX. HORIZONTAL
PATTERN
600
15.75
MAX. VERTICAL
MAXIMUM WEIGHT CAPACITY
75 LBS. (34 KGS.)
TS318SU
DIMENSIONS: [MILLIMETERS]
INCHES
