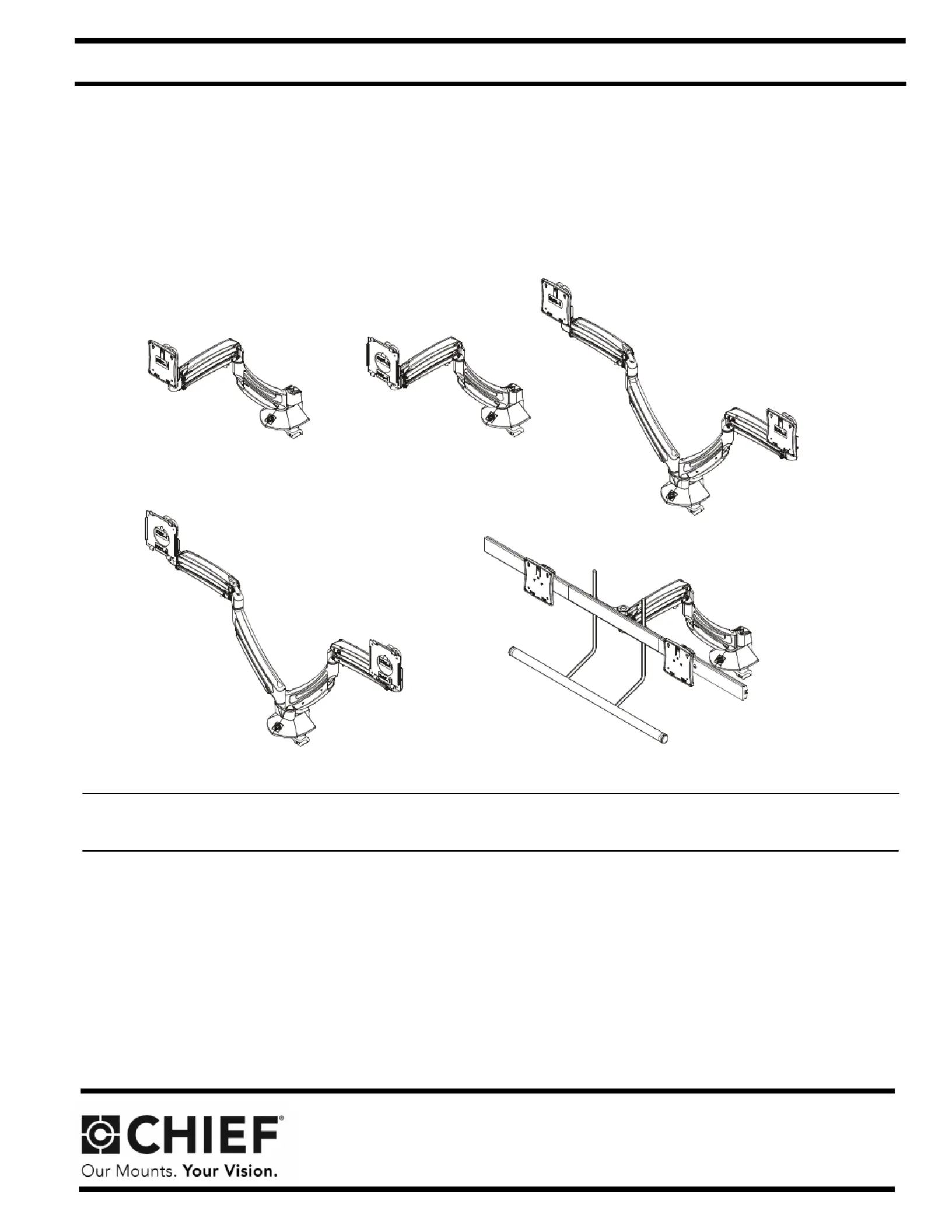

I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
K1D120 K1D120XXDL
K1D220XXDL
K1D220
K1D22H
K1 Desk Mounts
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
K1D Series
K1D Series Installation Instructions
2
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and
subsidiaries (collectively “Milestone”), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief® is a registered trademark of Milestone AV Technologies.
All rights reserved.
IMPORTANT SAFETY INSTRUCTIONS!
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this component can result in serious personal injury or
damage to equipment! It is the installer’s responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component.
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: Do not use this product outdoors.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components attached to the K1D Series Monitor Arm up to
(and including) the display does not exceed the weight limits
listed below. Use with products heavier than the maximum
weight indicated may result in collapse of the mount and its
accessories causing possible injury.
--SAVE THESE INSTRUCTIONS!--
MODEL Max Weight
Allowed for EACH
Display
Max Weight
Capacity of
Mounting System
K1D120 25 lbs
(11.34 kg)
25 lbs
(11.34 kg)
K1D120XXDL 25 lbs
(11.34 kg)
25 lbs
(11.34 kg)
K1D220 25 lbs
(11.34 kg)
50 lbs
(22.68 kg)
K1D220XXDL 25 lbs
(11.34 kg)
50 lbs
(22.68 kg)
K1D22H 9 lbs
(4.08 kg)
18 lbs
(8.16 kg)
Installation Instructions K1D Series
3

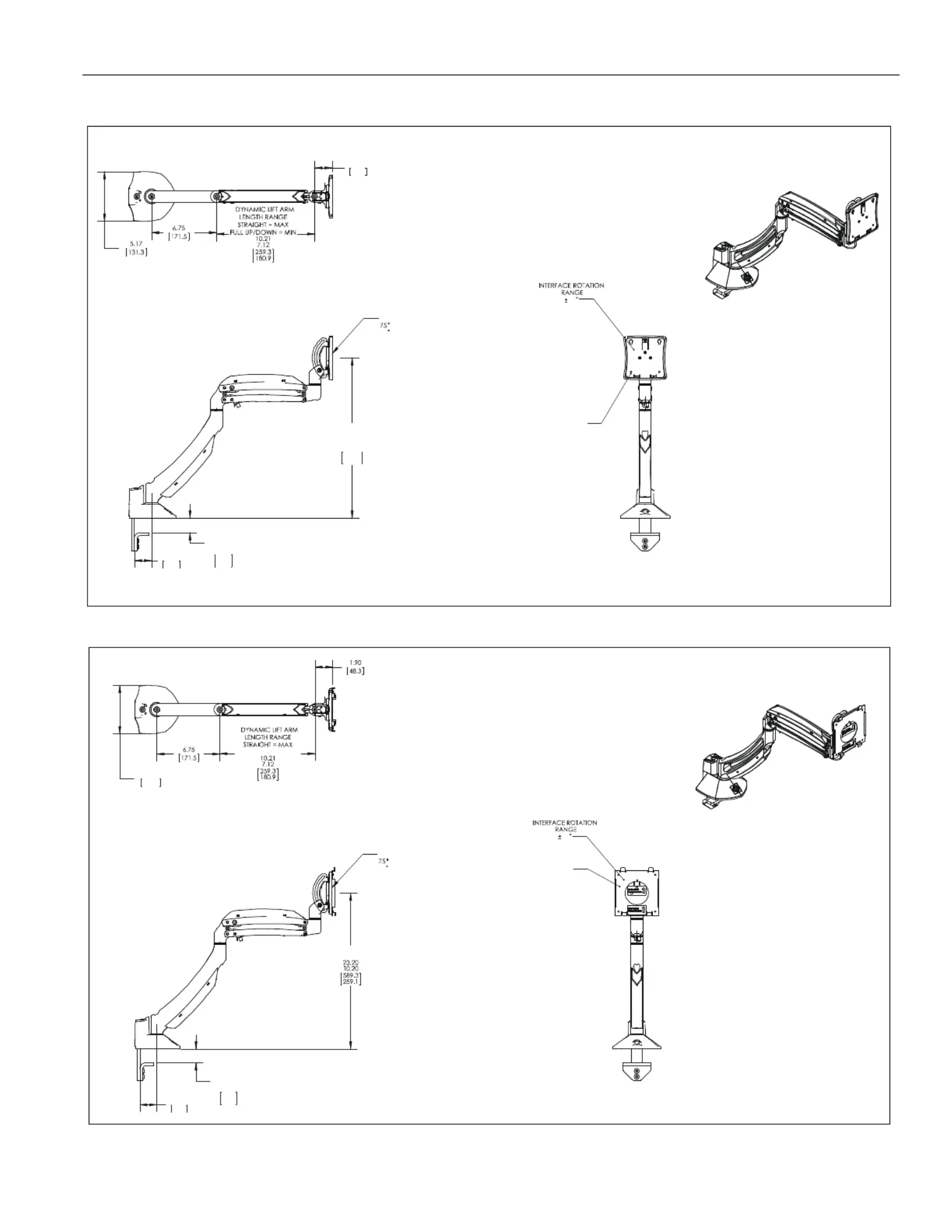

DIMENSIONS
K1D120
DESKTOP
THICKNESS
RANGE
2.50
0.50
63.5
12.7
DYNAMIC HEIGHT
ADJUST RANGE
23. 20
10. 20
589.3
259.1
1.81
46.0
TILT RANGE
UP
10 DOWN
1.83
46.4
90
MOUNTING PATTERN
COMPATIBILITY
100 X 100
75 X 75
1.81
46.0
DESKTOP
THICKNESS
RANGE
2.50
0.50
63.5
12.7
DYNAMIC HEIGHT
ADJUST RANGE
TILT RANGE
UP
10 DOWN
5.17
131.3
FULL UP/DOWN = MIN
90
QUICK RELEASE
DELL INTERFACE
K1D120XXDL
