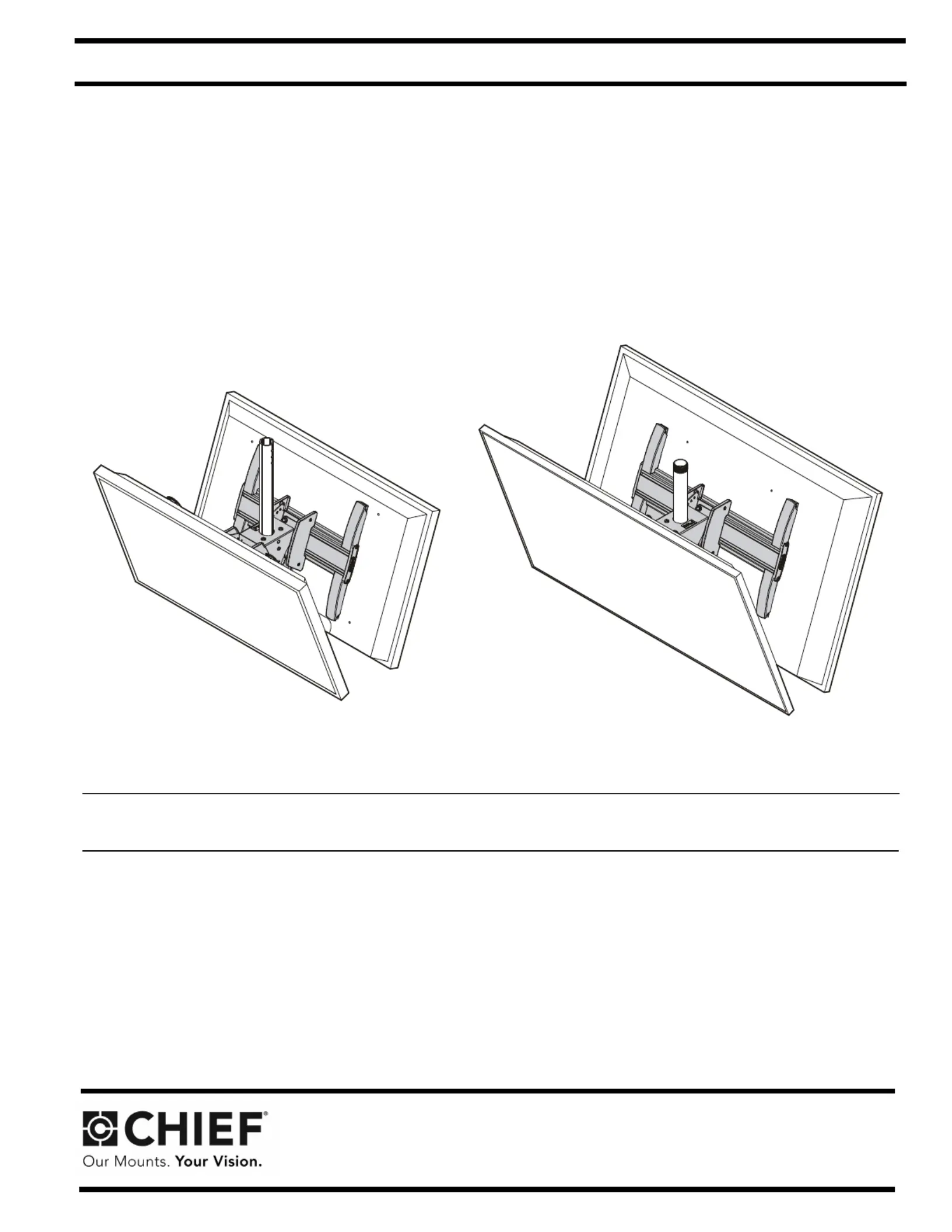

I N S T A L L A T I O N I N S T R U C T I O N S
MCB1U LCB1U
(Shown installed to
1-1/2" NPT column as example only)
(Shown installed to
CPA Series extension column
as example only)
Back-to-Back Flat Panel Ceiling Mounts
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
MCB1U / LCB1U
MCB1U / LCB1U Installation Instructions
2
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and
subsidiaries (collectively "Milestone"), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief® is a registered trademark of Milestone AV Technologies.
All rights reserved.
DEFINITIONS
MOUNTING SYSTEM: A MOUNTING SYSTEM is the
primary Chief product to which an accessory and/or component
is attached.
ACCESSORY: AN ACCESSORY is the secondary Chief
product which is attached to a primary Chief product, and may
have a component attached or setting on it.
COMPONENT: A COMPONENT is an audiovisual item
designed to be attached or resting on an accessory or mounting
system such as a video camera, CPU, screen, display,
projector, etc.
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all mounting systems
are properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this mounting system can result in serious personal injury
or damage to equipment! It is the installer’s responsibility to
make sure the structure to which this mounting system is
attached can support five times the combined weight of all
equipment. Reinforce the structure as required before
installing the mounting system.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components located between the mount up to (and
including) the displays does not exceed 250 lbs (113.4 kg)
[125 lbs (56.7 kg) per display].
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: Do not use this product outdoors.
IMPORTANT ! : The MCB1U/LCB1U
mounts are
designed to be mounted to a 1-1/2" NPT or NPSM
following ANSI/ASME B1.20.1 (Schedule 40, 0.154"
minimum thickness steel or aluminum-ASTM B221)
threaded extension column (not included);
OR
a UL
Listed Chief CPA Series extension column (not included).
NOTE: The MCB1U/LCB1U mounts are intended to be used
with the UL Listed CPA Ceiling Plates (not included):
CPA330, CPA365, CPA395.
NOTE: The following UL Listed Chief ceiling plates WITHOUT
swaged collars (not included) may also be used:
CMA330, CMA345, CMA395.
--SAVE THESE INSTRUCTIONS--
Installation Instructions MCB1U / LCB1U
3

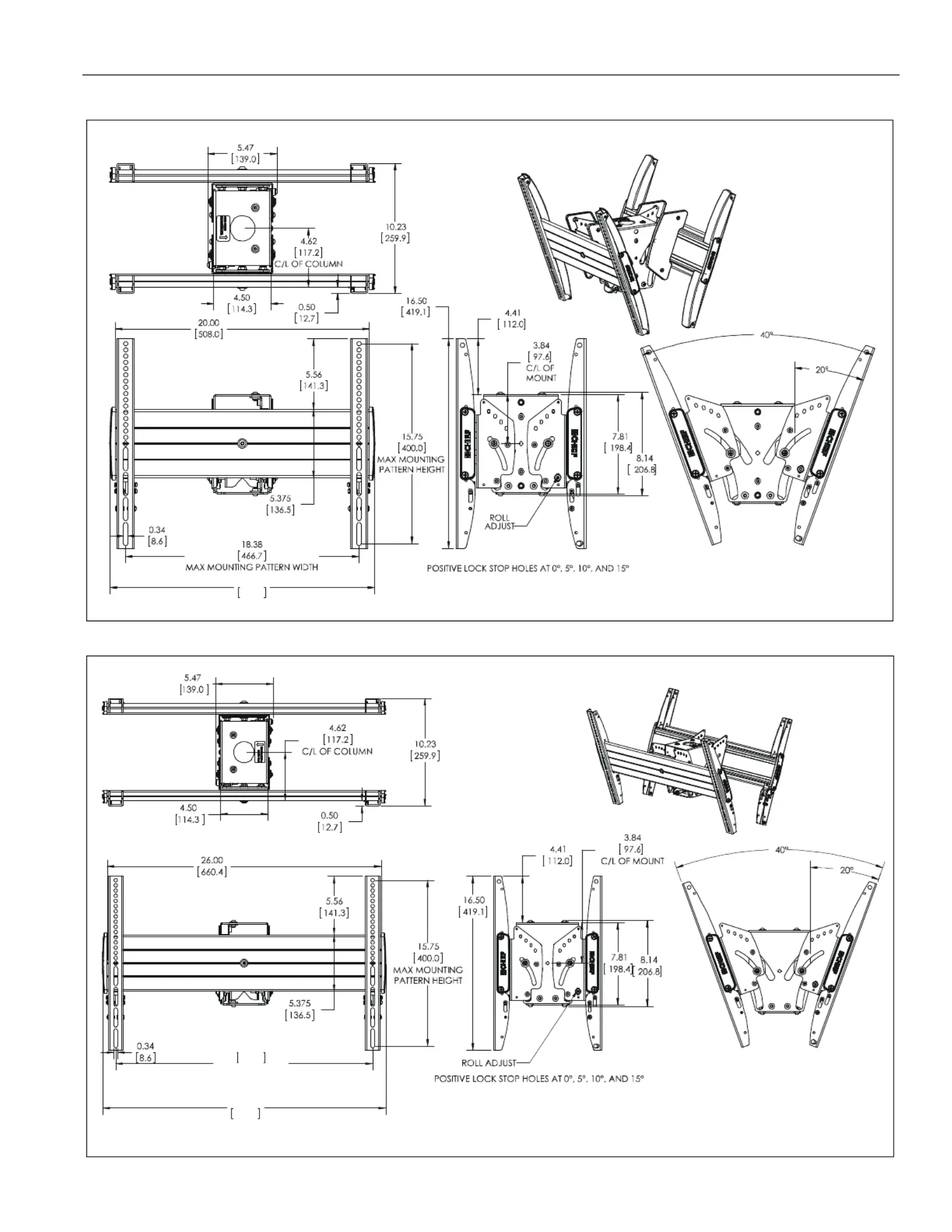

DIMENSIONS
20.82
528.9
MCB1U
DIMENSIONS: INCHES
[MILLIMETERS]
24.38
619.1
MAX MOUNTING
PATTERN WID TH
26.83
681.5
LCB1U
DIMENSIONS: INCHES
[MILLIMETERS]
