Sivu 1/6
Rainier
User Guide Professional USB Recording Mic
Minimum System Requirements
Works with USB compliant computers
- Microsoft Windows OS 7, 8, 10 or higher
- Apple Macintosh OSX 10.4.11 or higher
For additional information and support contact: cyberacoustics.com
FCC Compliance Part 15
This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one or more of the following measure:
- Reorient of relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio/TV technician for help
Changes or modi¬cations not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Canada ICES-003
This Class B digital apparatus complies with Canadian ICES-003.
USB cable included
The Rainier microphone is designed for live blogging events, podcast
recordings, voice-overs, interviews, conference calls, vocals and music
recordings. Crafted from industrial-grade components, including die-cast
anodized aluminum body and stand, with pro-glide controls, this
professional level instrument will provide years of service. Compatible with
Mac, PC, and other USB ready systems.
Box Contents
• Recording microphone
• Desk stand
• USB connection cable
• User’s guide
Welcome

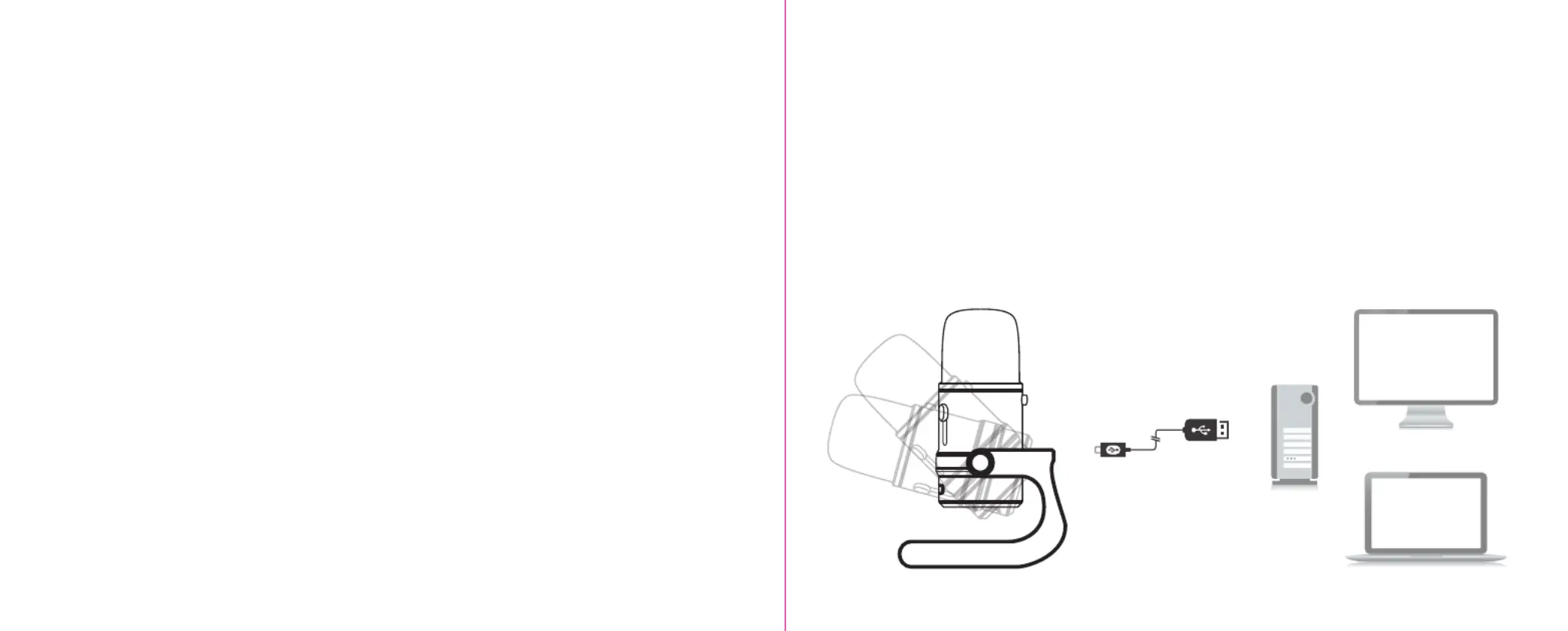

Getting started with USB professional recording mic
Unpack your microphone and adjust the angle to a desired position and tighten the two (2)
screws on either side of the base to hold this position.
Connect the microphone to your computer with the provided USB cable (avoid connecting
through USB hubs or other USB multipliers for best performance).
Back view
Bottom view
Front view
MIC capsule
Microphone volume control
Headphone volume control
Power LED
USB connection
Headphone output
Polar patterns mic selector
Mic stand mounting hole
Desktop mic stand
Controls and features
1) – Two microphone elements with different recording characteristics for Mic capsule
different sound environments.
2) – Control the volume of headphone output by sliding up and Headphone volume control
down.
3) Microphone volume control – Slide up and down to adjust the microphone gain. When it
switches to the lowest position, the mic will mute.
4) – It will light up after the mic is plugged into a USB port and is getting power Power LED
to operate.
5) – Press down the button to get recording in cardioid mode. Polar patterns mic selector
Press the button again and the button will rise up to get sound recording in omnidirectional
mode.
6) – The microphone includes a 3.5mm headphone output jack for Headphone output
monitoring and playback. Plug in your own headphones to monitor your microphone
recording in real-time, without latency delays. And you can also enjoy the audio playback
on your computer through the same headphone output jack.
7) – Connect the microphone with your computer using the provided USB USB connection
cable. Plug the micro USB into the micro USB port on the bottom of the mic, and other
end into a standard USB port on your PC / Mac. To perform at its best, avoid connecting
through USB hubs or other USB multipliers.
8) – You can adjust the mic tilt angle to your desired recording position.Desktop mic stand
9) – You can remove the desktop stand and use professional mic Mic stand mounting hole
stands, tripods or other mounting options by connecting with a 3/8” threaded adapter in
the mounting hole on the bottom of the mic.
