Install Instructions For:
DS31-EZ

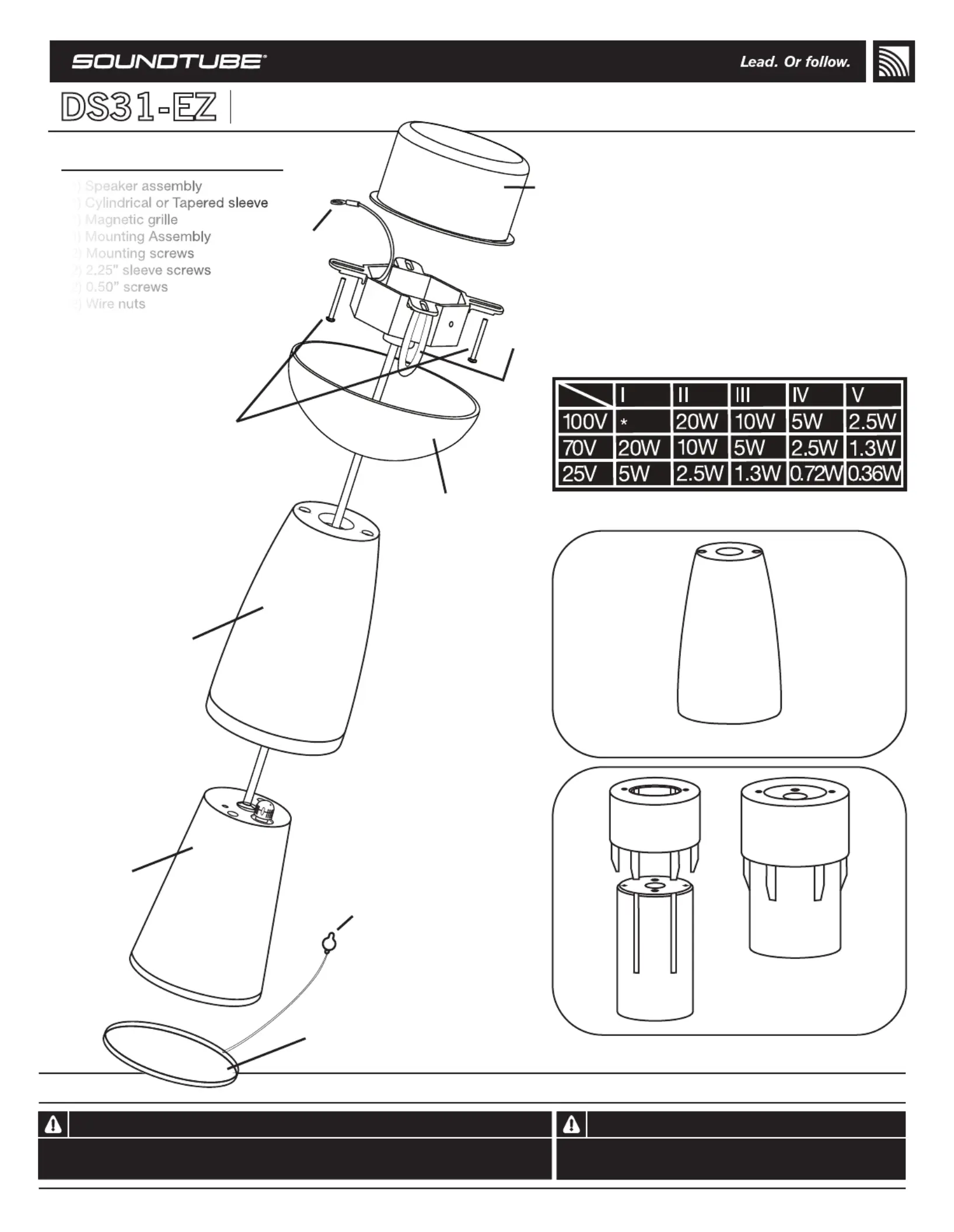

Box contents
© 2022 Sound Tube Ente tainment, Inc. r All rights rese ved.r PN INS-DS31-EZ Rev 11.02.22
1.435.647.9555
|
800.647.TUBE
|
www.soundtube.com
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning Warning
SoundTube speakers must be installed by ofessional audio installer/contracto For safety and for a pr r.
optimum audio performance, installer must follow all di ections issued by Sound r Tube Entertainment .
(1) Speaker assembly
(1) Cylindrical or Tapered sleeve
(1) Magnetic grille
(1) Mounting Assembly
(2) Mounting screws
(2) 2.25” sleeve screws
(2) 0.50” screws
(2) Wire nuts
Cover plate
Tapered Sleeve
Mounting plate
Mounting screws (2)
Dual-Gang Junction Box (not included)
Speaker
Grille
Safety Clip
Safety leash
Adjustment loop
Tapered Sleeve
Tap Settings
Cylindrical Sleeve
(two pieces)
V
I
V
I
I
I
I
I
I
Install Instructions For:
DS31-EZ

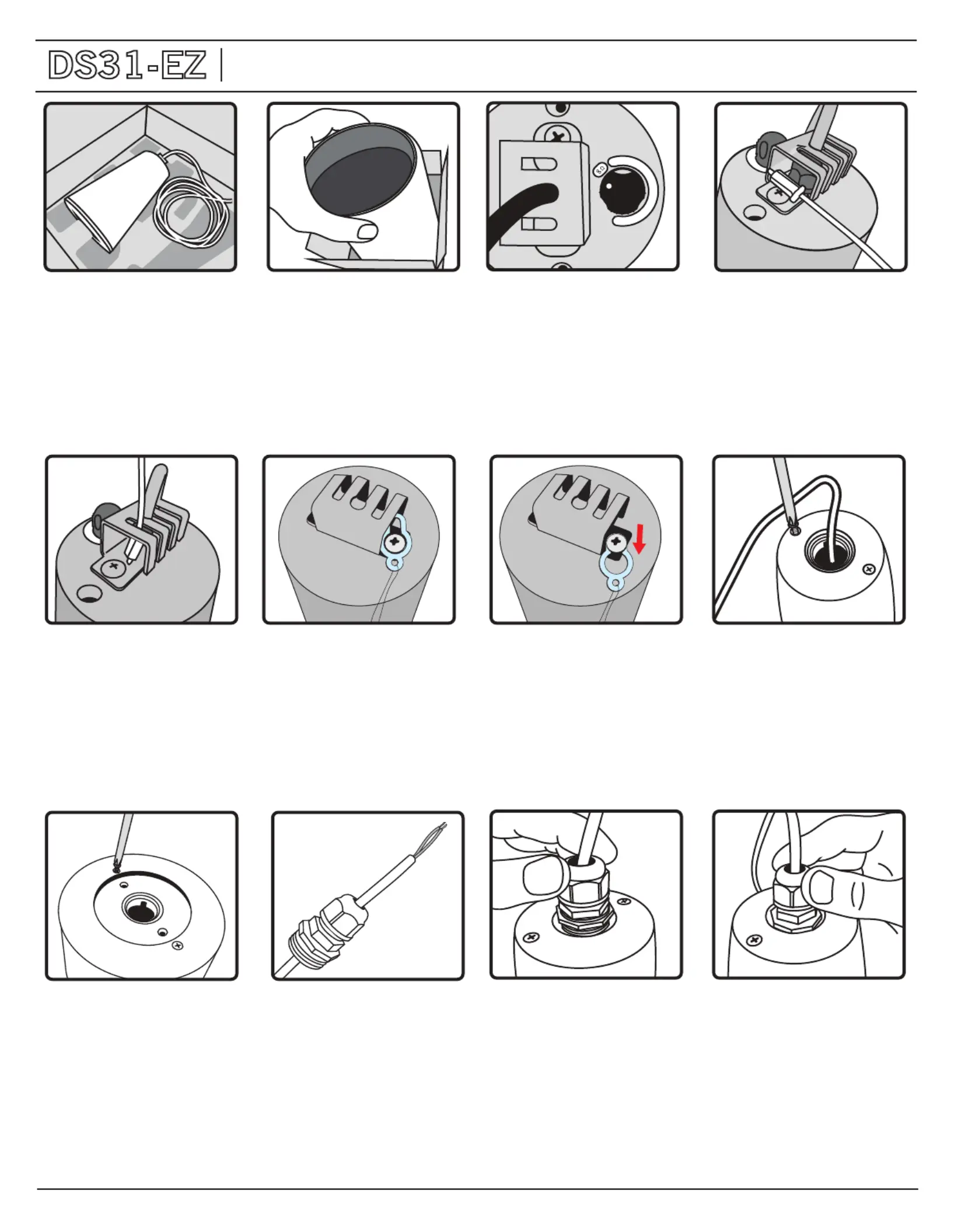

1. Remove speaker body from
box and unravel signal wire.
2. 3. Unpack Designer Sleeve. Select tap setting on the
back face of the speaker body.
Each numeral setting
corresponds to a wattage
shown in tap setting table on
back of speaker (also shown
on Page 1). Use 8Ω for
transformer bypass.
4. If necessary, attach safety
cable by rst inserting into side
of mounting bracket.
8. Thread signal wire through
Designer Sleeve central hole,
then gently slide sleeve down
OVER safety clip wire and
speaker body. Then use two
included 2.25” Phillips-head
screws to secure sleeve to
speaker body (Tapered Sleeve
shown).
9. If using both Cylindrical
Sleeve pieces, use two
included 0.50” Phillips-head
screws to secure the two
sleeve pieces to one another.
10. Thread signal wire through
included Strain Relief Bushing.
11. Screw bushing into
Designer Sleeve, pulling excess
wire through until snug.
12. Tighten down top gland to
secure the signal wire. Gland
must be tightened around
signal cable to prevent water
ingress and maintain IP rating.
© 2022 MSE A uudio So ndTube te tain En r men In t, c. All rights rese ved.r PN INS-DS31-EZ Rev 11.02.22
1.855.663.5600
|
www.soundtube.com
5. Align safety cable with
bracket slot and pull up to
secure.
6. Unpack grille and attach
grille safety restraint by placing
the large end of the clip over
the mounting bracket screw on
the top face of the speaker
body (the face opposite the
front of the speaker).
7. You will need to slightly
loosen/unscrew one of the
hanging bracket screws in
order to t the safety clip
underneath. Slide the safety
clip until the small end snaps
into place around the screw.
Install Instructions For:
DS31-EZ
© 2022 MSE A uudio So ndTube te tain En r ment, Inc. All rights rese ved.r PN INS-DS31-EZ Rev 11.02.22
1.855.663.5600
|
www.soundtube.com

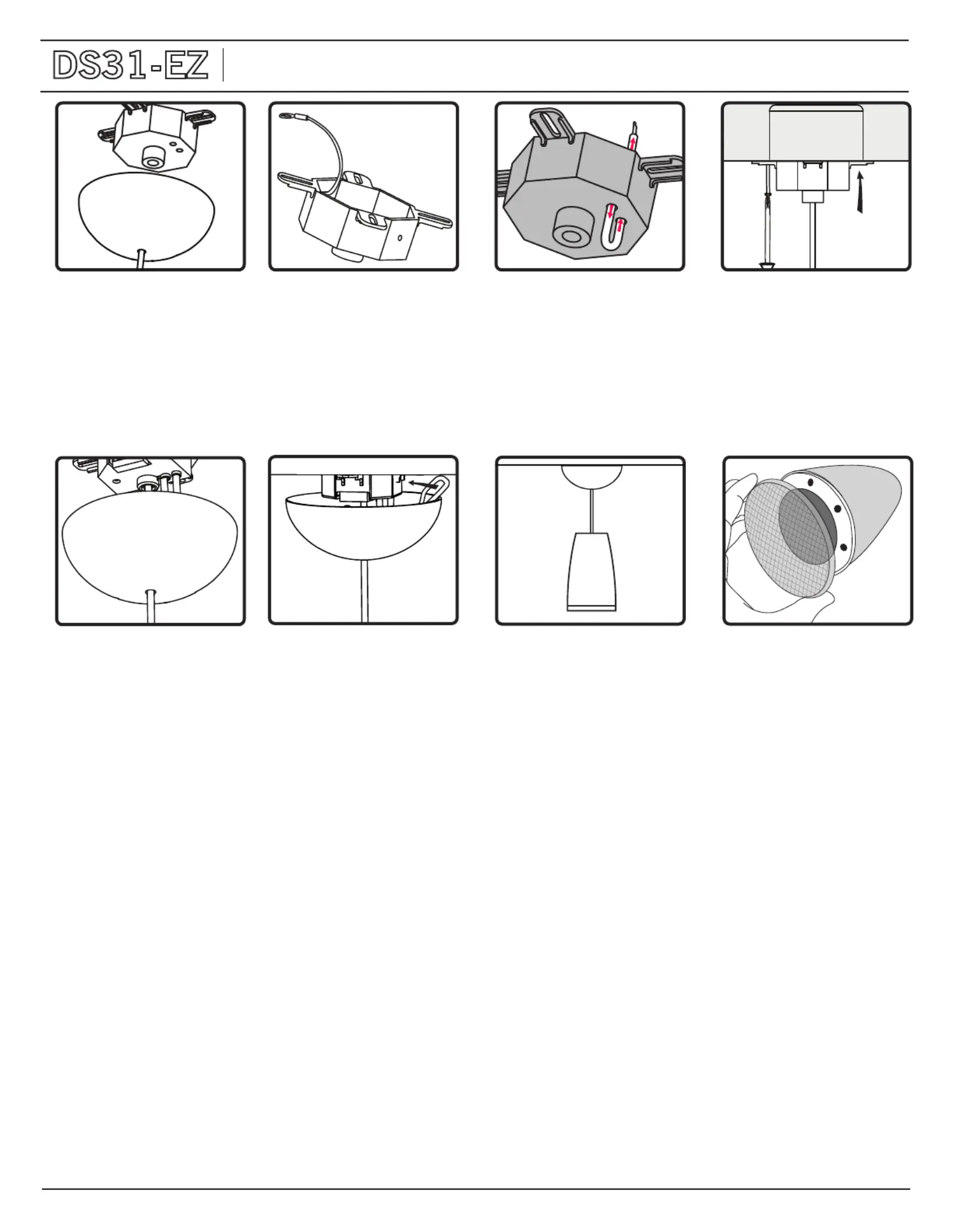

13. Unpack Mounting Assembly
and separate hemispherical
cover plate from mounting plate.
Thread signal wire through
hemispherical cover plate and
central hole in mounting plate.
17. Move cover plate up
speaker wire, begin to thread
cover plate into mounting plate,
leaving half an inch between
cover plate and mounting
surface.
18. Excess wire can be
hidden inside of cover plate by
wrapping excess wire clock-
wise and into gap between
plate and surface.
20. Magnetically attach grille
to the front of the speaker.
Done.
19. Completely thread cover
plate to secure speaker.
14. Where needed, connect
safety leash to secure point on
structure/ junction box.
15. Loop wire down through
one of the smaller holes on the
mounting plate, then back up
through adjacent hole. Run
signal wire from amplier to the
speaker and connect it to the
speaker’s signal wire using
included wire nuts. Red is
positive, black is negative.
16. Screw mounting plate into
the junction box (not included)
using the mounting screws
provided.
