Box contents
© 2023 SoundTu En r nbe te tai ment, I . nc Allri htg s reserved. PN INS-SM -EZ R ev5-24-2023
Install Instr tiouc ns For:
SM52-EZ-BK, SM52-EZ-WH, SM52-EZ-WX-BK, SM52-EZ-WX-WH,
SM82-EZ-II-BK, SM82-EZ-II-WH, SM82-EZ-II-WX-BK & SM82-EZ-II-WX-WH
Do not spec or install speaker near support beam, ventilation duct or
other structure that may interfere with speaker function or dispersion.
Warning
SoundTube speakers must be installed by a professional audio installer/contractor. For safety and for
optimum audio performance, installer must follow all directions issued by SoundTube Entertainment.

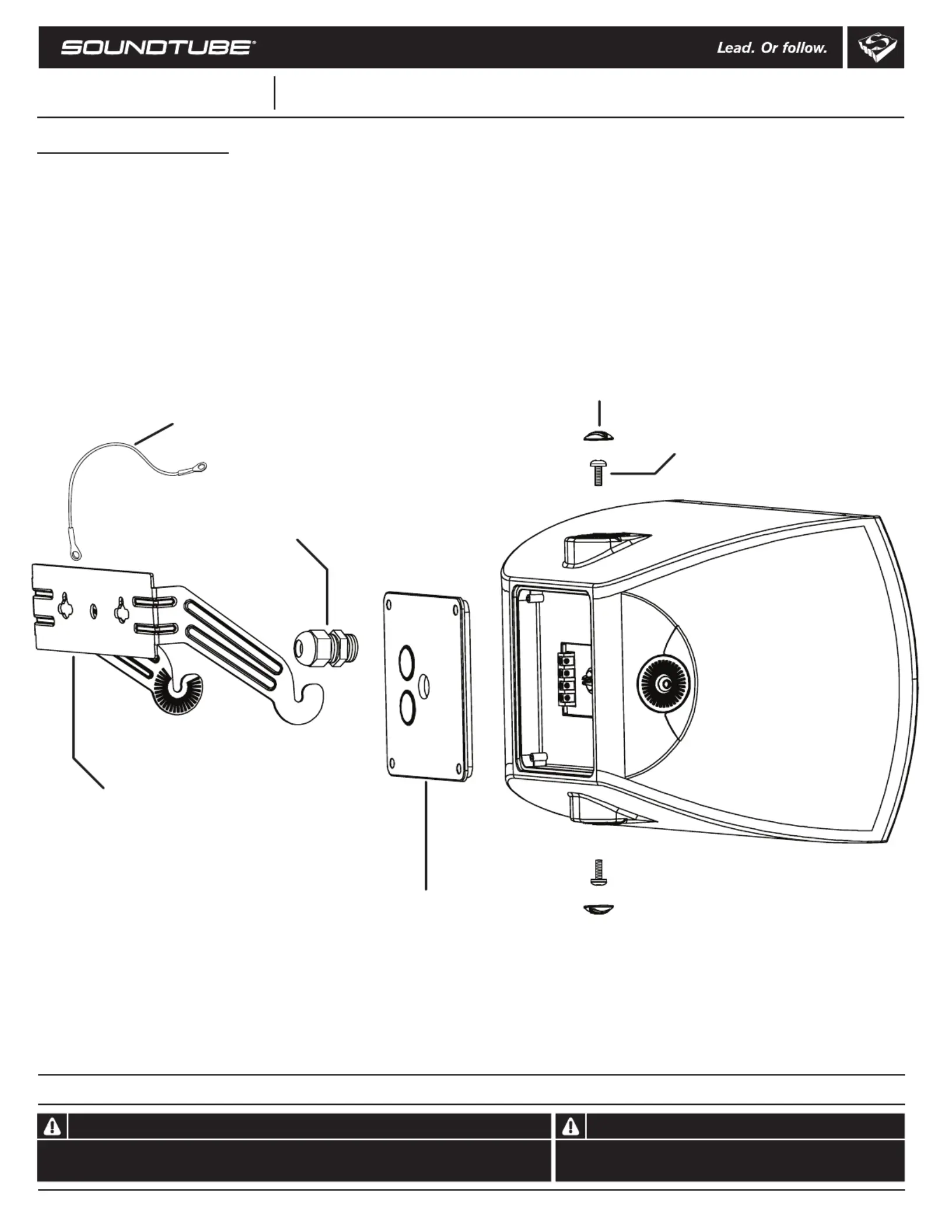

U- b et rack
Back plate
SM-EZ
Series
913.663.5600
|
www.soundtube.com
Safety cable
U-bracket screw
Screw cap
Warning
1 Speaker
1 U-bracket
3 U-bracket screws
2 Screw caps
1 Allen wrench
1 Back plate
1 Port plug
1 Safety cable
1 Strain relief bushing
Strain relief bushing
Port prot tionec for SM-EZ
SM-EZ Series

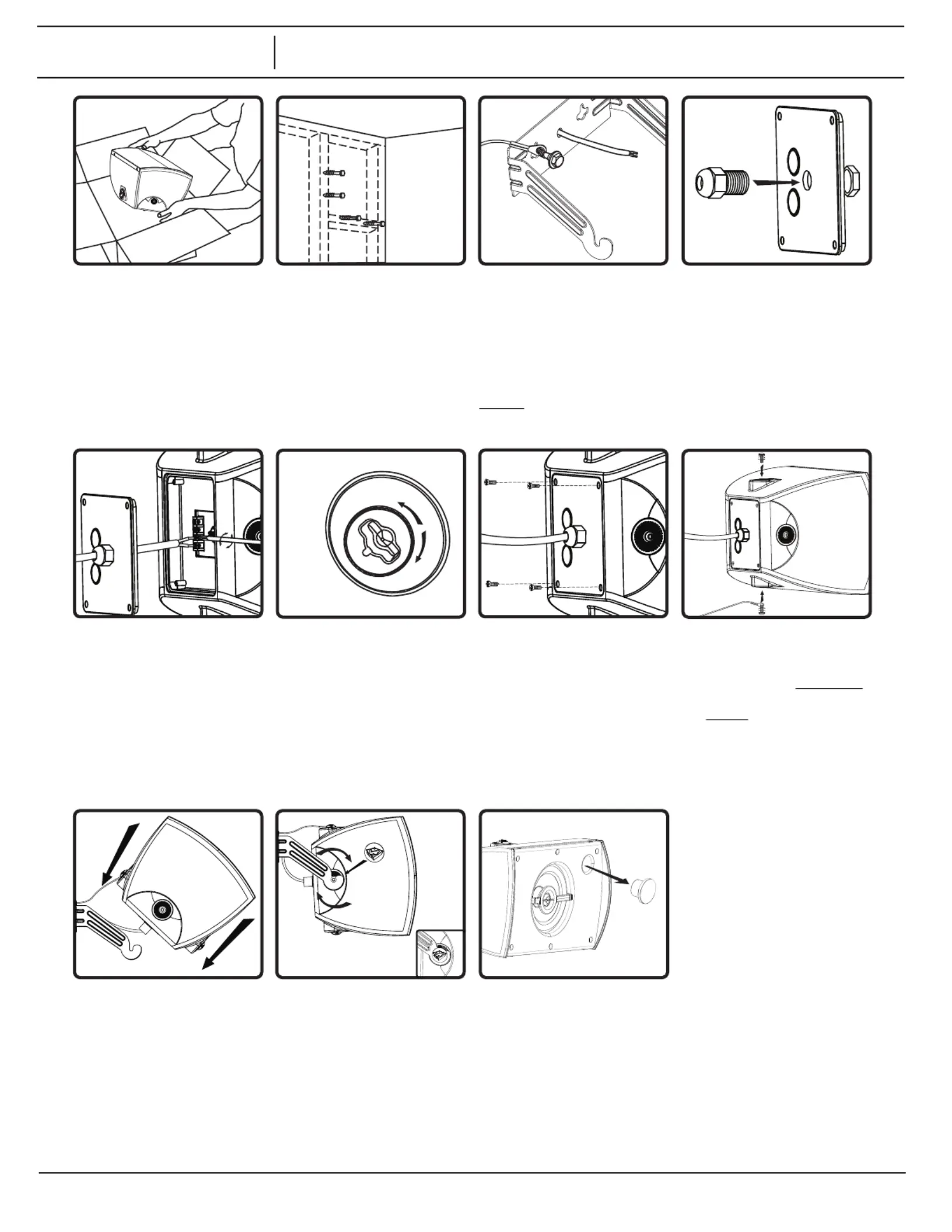

1. Unpack speaker and
mounting hardware.
2. Choose a secure mounting
surface with sufcient strength
to reliably hold the speaker.
The speaker may be mounted
in either the vertical or the
horizontal position with the
same U-bracket.
4. If being installed per
EN54-24 regulations or in
instances where a water tight
strain relief bushing is neces-
sary, attach the included strain
relief bushing to the back
plate. If it is not required, skip
this step.
10. Aim speaker and tighten
u-bracket screws. Once
tightened down, place the
screw caps on the screws.
Done!
If used indoors, remove the
grille and take the plug out of
the port for greater bass
output. Port must remain
plugged to maintain IP65
rating in outdoor use.
Install Instr tiouc ns For:
SM52-EZ-BK, SM52-EZ-WH, SM52-EZ-WX-BK, SM52-EZ-WX-WH,
SM82-EZ-II-BK, SM82-EZ-II-WH, SM82-EZ-II-WX-BK & SM82-EZ-II-WX-WH
9. Tilt speaker 45º (grille up)
and slide on to bracket.
5. Run signal wires through
strain relief bushing then
connect to ceramic terminal
strip. Two + (positive) and two
- (negative) connectors are
provided for daisy chaining.
7. Install back plate and
secure with included fasteners.
8. Select desired location for
safety cable install using
U-bracket mounting screw. If
mounting speaker horizontally,
attach safety cable to one of
the vertical mounting points
and vice versa.
6. Select the tap position by
rotating the rotary switch
located on the back of the
speaker to desired setting. The
switch is preset to the
maximum tap setting in 70.7 V
mode (32W for the
SM52-EZ[-WX] and 64W for
the SM-82-EZ-II[-WX]).
3. Mount u-bracket with
clamping slots pointing
upward. Securely fasten
mounting bracket and safety
cable to surface (user must
supply fasteners).
Note: The safety cable will
attach to one of the speaker's
unused mounting holes using
one of the included mounting
screws.
