Scanstrut SC-CW-04E Käyttöohje
Scanstrut
Akun laturi
SC-CW-04E
Lue alta 📖 käyttöohje suomeksi merkille Scanstrut SC-CW-04E (2 sivua) kategoriassa Akun laturi. Tämä opas oli hyödyllinen 5 henkilölle ja sai 4.5 tähden keskimäärin 2 käyttäjältä
Sivu 1/2
1
4a
7
Input voltage range : 10-30V DC (12/24V system)
Input current max: 1.5A
Output power: 5W (5V, 1A)
Standby current draw: < 0.03W
Waterproof rating: IPX6 front and back
Certications: Qi, CE, FCC, ROHS,
UNECE R10 E24
5
6
Retain installation jig to use in step 2.
Ensure there is sufcient clearance in chosen
installation area.
205mm
(8”)
- Feed cable through the hole.
- Apply sealant to p1-x4 screws.
- Screw product in place.
- Remove installation jig.
Connect wires to 12/24V supply,
ensuring a waterproof connection. Fuse
according to input voltage and current.
4b Ensure ROKK Active is vertical.
Use drilling template to drill ø6mm (0.24”)
cable hole and p1-x4 pilot holes
(see tools required table).
Ensure installation area is at.
ROKK ACTIVE TOP
ROKK ACTIVE TOP
ROKK ACTIVE TOP
Tools required.
Pozi screwdriver
6mm (0.24”) drill bit
Drill bit (for pilot hole)
DRILLING TEMPLATE
SCALE 1:1
ø6mm
ø 2
m
m
TOP
(0.07”)
(0.24”)
ø 2
m
m
(0.07”)
ø 2
m
m
(0.07”)
ø 2
m
m
(0.07”)
37mm
(1.5”)
37mm
(1.5”)
31mm
(1.2”)
Material No. 4 Screw
Soft Material
E.g plywood
2mm
(5/64”)
Hard Material
E.g Fiberglass
acrylic, hardwood
2.5mm
(3/32”)
Check Scale 50mm
Parts list.
ROKK Wireless
Active
x1
x4
No. 4 x 3/4” (18mm)
self-tapping screw
x1
Installation jig

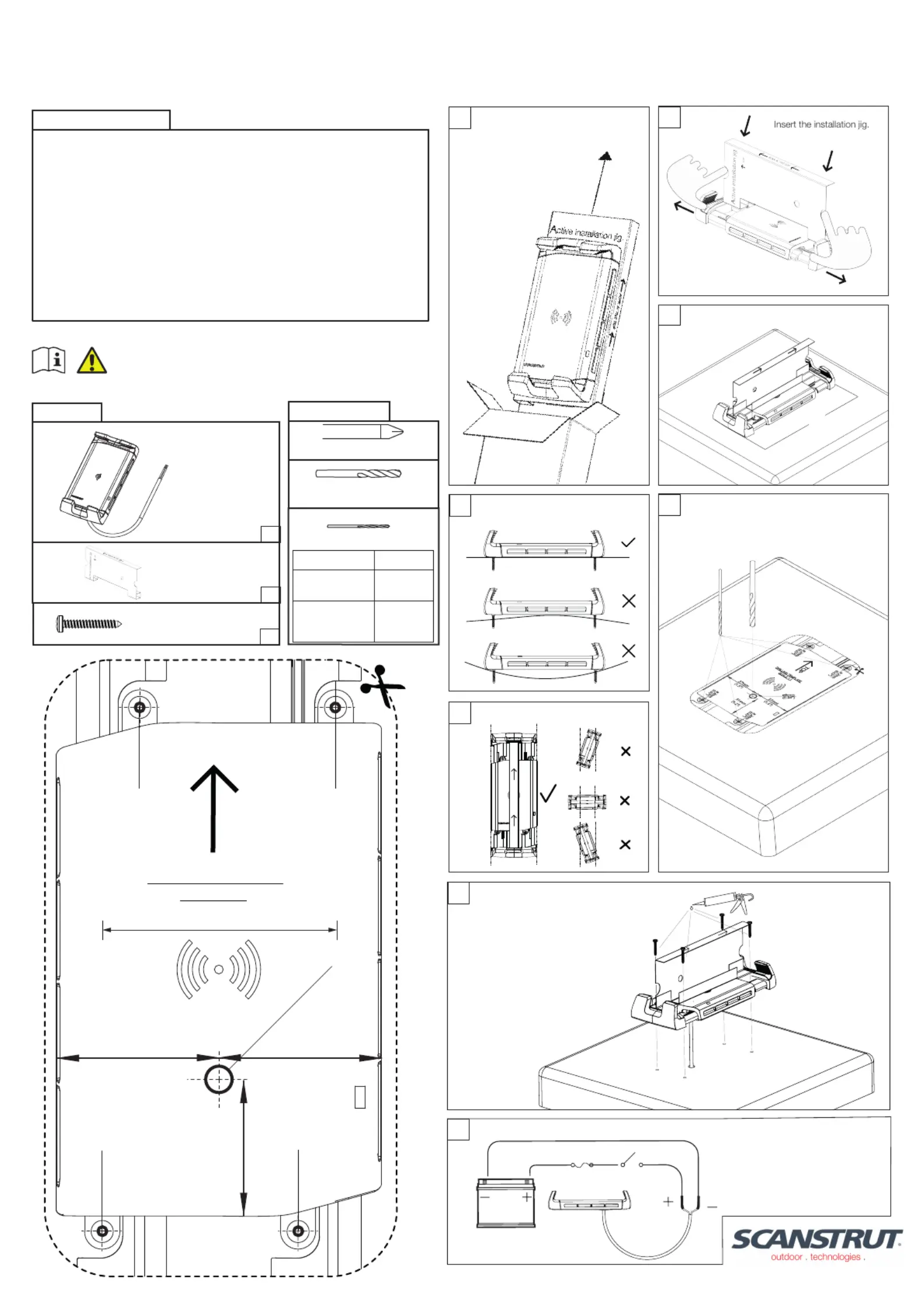

Installation instructions.
ROKK Wireless - Active (SC-CW-04E)
18-01-2020 (Issue 8)
Technical information.
READ IMPORTANT SAFETY INFORMATION
LEAFLET BEFORE INSTALLING.
2
3
For latest tech info visit: www.scanstrut.com/rokk-wireless
This product is designed to securely mount phones under normal usage conditions. The end-
user is entirely responsible for conditions in which their device is used. See WARRANTY section
for further details.
Scanstrut recommends installation is carried out by a
incorrect installation.
WARNING:
This product is to be connected to a 12V DC or 24V DC battery power source only.
The power supply must be switched off before installation.
An appropriate fuse or circuit breaker must be used between the battery / power source and
this product. Check for correct polarity of all wiring before switching the power on.
This product may contain high voltages. Do not tamper with the product.
Before drilling any holes, ensure the area behind the mounting location is clear of wires, fuel and
all other hazardous objects.
If the product needs to be mounted outside, it must be mounted in a location safely above the
waterline, where it is not at risk of being submerged.
Smart LED light guide:
Solid red
Product has power and ready to charge.
Solid green
Product charging.
Flashing red
1. Foreign object detection:
metallic object placed on top
that is not Qi compatible.
or
2. Thermal cutout:
internal temperature is too high/ low.
Wait for product to return to operating temperature.
Flashing green/red
Input current is too low.
IN EXTREME USAGE ENVIRONMENTS
PERFORMANCE MAY VARY.
CAUTION:
compatible devices.
The cable must be retained and not interfere with mechanical systems.
This product contains no user serviceable components. Do NOT attempt to repair or alter the product
in any way.
This product will charge through non-metallic phone cases up to ~3mm thick. Phone cases may alter
overall charge performance.
When used in a very high/low ambient temperature/direct or prolonged sunlight the product may
temporarily shut down, this is a safety feature of the electronics.
porous, smooth surface.
When selecting a mounting location, avoid places exposed to heat-radiating appliances and poorly
ventilated areas.
EMC INSTALLATION GUIDELINES:
Scanstrut products conform to Electromagnetic Compatibility (EMC) regulations, to ensure that
electromagnetic interference between equipment is minimised.
Correct installation is required to ensure that electromagnetic
interference is kept to a minimum.
WIRING:
When extending the cable from battery/power source to the product, ensure there is consistently a
minimum of 10V being provided to the product. A wire gauge of 18AWG (0.82mm2) is recommended
for any length of cable extension.
The schematic in step 7 is to illustrate how the product should be connected to a 12V DC or 24V DC
battery/power supply.
ENVIRONMENTAL PROTECTION:
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
IMPORTANT:
Scanstrut Ltd. accepts no responsibility for any injuries or other damages arising from the use of their
products in any circumstances.
WARRANTY:
A 2 year, non-transferrable warranty covers this Scanstrut product only and not any devices that
are mounted in it or on it. No warranty is given for users’ devices and users expose their devices to
hazards, known or unknown, at their own risk.
USER GUIDE:

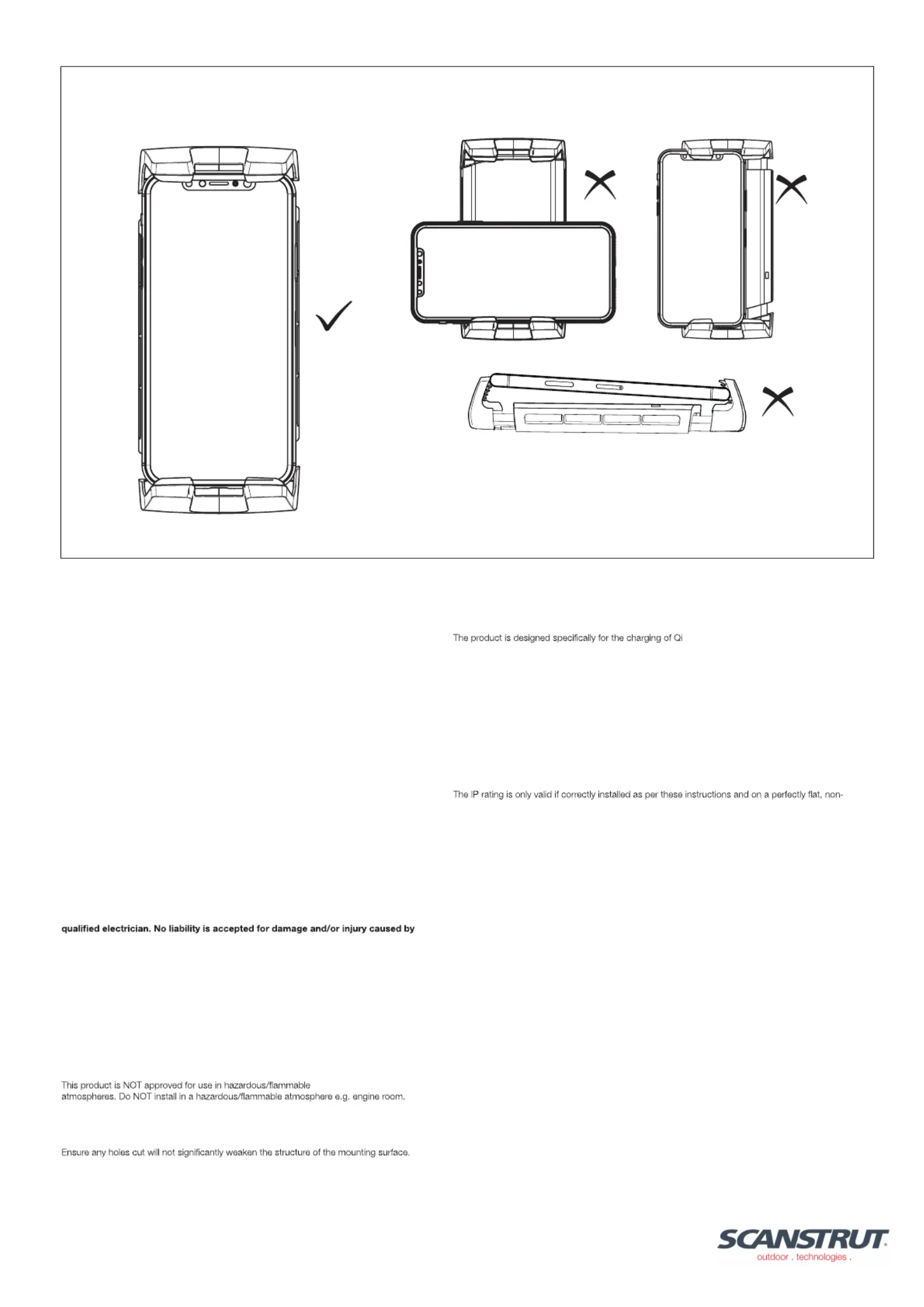

Place device centrally within the ROKK Wireless Edge jaws.
CARE: wash down carefully with fresh water.
