SC-USB-01 01-12-2022 (Issue 2) Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
USA
+1 860 308 1416
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com

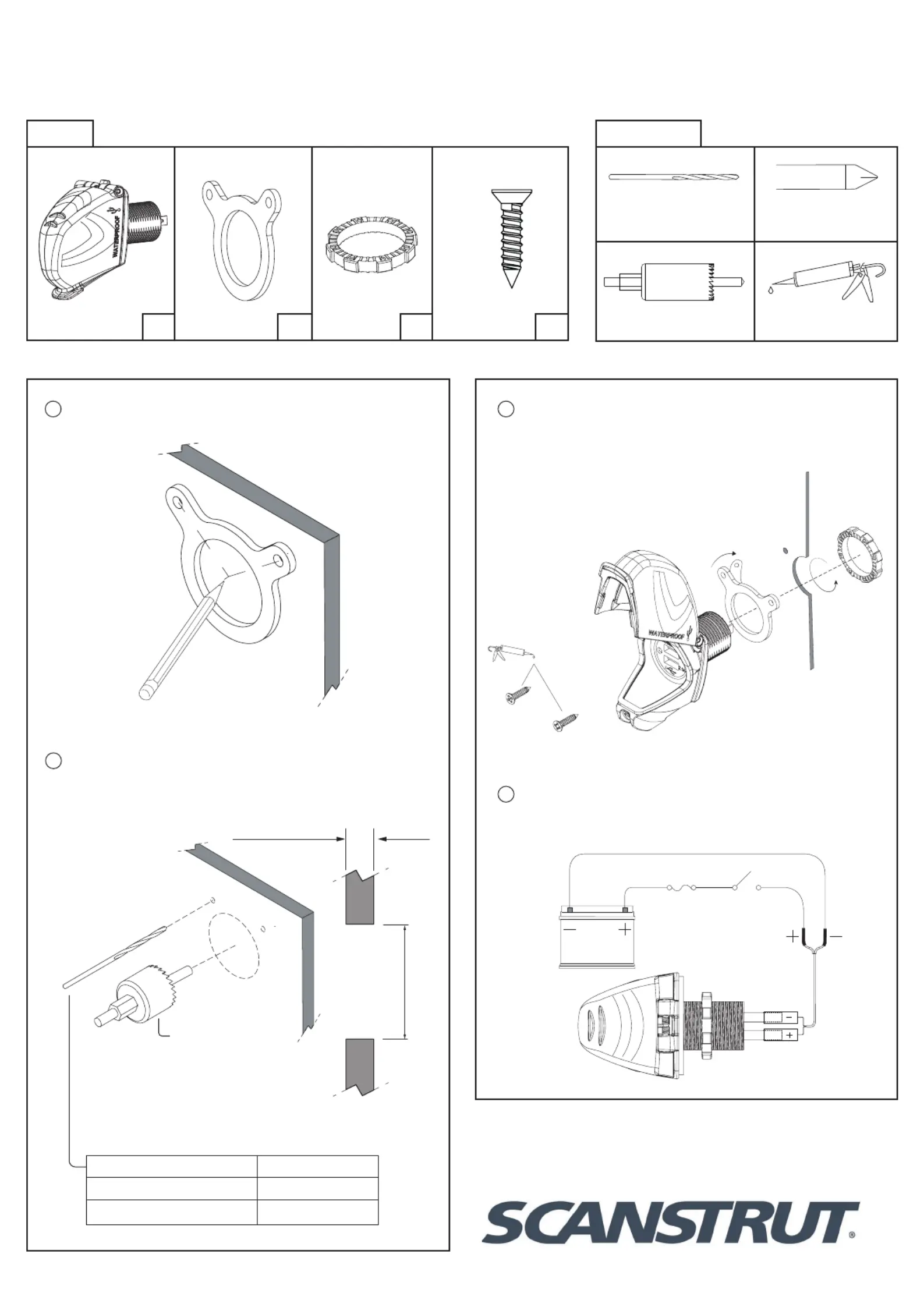

Part List
Shell Gasket Lock Ring No.6 x 16X1 X1 X1 X1
Tools Required
ø2.5mm (3/32")
Drill Bit
Pozi Screwdriver
ø29mm (1 1/8")
Hole Saw
Silicone
1
2
4
3
Ø29mm
3mm Min
25mm Max
Pilot Hole Size
Material No. 6 Screw
Soft Material e.g Plywood 2.5mm (3/32")
Hard Material e.g Fiberglass 3mm (1/8")
ø29mm (1/18")
- Stick Gasket down
- Tighten lock ring onto product until securely xed
- Screw product into position.
Connect to 12/24V supply, ensuring a waterproof connection. Fuse
and select cable diameter according to input voltage and current
for your speci c installation.
Use the gasket as a template to mark the hole centres.
Drill mounting holes (see tools required).
SC-USB-01 01-12-2022 (Issue 2) Installation Instructions
For further installation
and warranty information
please visit:
www.scanstrut.com
USA
+1 860 308 1416
usasales@scanstrut.com
UK & International
+44 (0)1392531280
sales@scanstrut.com
READ IMPORTANT SAFETY INFORMATION BEFORE
INSTALLING.
WARNING:
This product is to be connected to a 12V DC or
24V DC battery power source only. The power
supply must be switched off before installation.
An appropriate fuse or circuit breaker must be
used between the battery / power source and this
product. Check for correct polarity of all wiring
before switching the power on.
This product may contain high voltages. Do not
tamper with the product.
This product is NOT approved for use in
hazardous/ammable atmospheres.
Do NOT install in a hazardous/ammable
atmosphere e.g. engine room.
Before drilling any holes, ensure the area behind
the mounting location is clear of wires, fuel and all
other hazardous objects.
Ensure any holes cut will not signicantly weaken
the structure of the mounting surface.
If the product needs to be mounted outside,
it must be mounted in a location safely above
the waterline, where it is not at risk of being
submerged.
CAUTION:
This product does not contain any user
serviceable parts. DO NOT attempt to repair or
modify the product in any way.
When used in high ambient temperature or
in direct sunlight, the product may turn off
temporarily, this is a safety feature of the
electronics.
The IP protection rating is only valid if the
installation is carried out correctly according to
the instructions and on a perfectly at, smooth
and non-porous surface.
When choosing a mounting location, avoid areas
exposed to heat radiation devices and areas with
poor ventilation
WIRING:
Professional electrician installation recommended,
see Technical Information for power requirements.
To achieve max power output, the specied voltage
must be at the charger. Battery performance and
voltage drop needs to be considered for installation.
ENVIRONMENTAL PROTECTION:
Waste electrical products should not be disposed
of with household waste. Please recycle where
facilities exist. Check with your Local Authority or
retailer for recycling advice.
IMPORTANT:
Scanstrut Ltd & Inc. accepts no responsibility for any
injuries or other damages arising from the use of
their products in any circumstances.
WARRANTY:
A 2 year, non-transferable warranty covers this
Scanstrut product only and not any devices that
are charged by it. No warranty is given for users’
devices and users expose their devices to hazards,
known or unknown, at their own risk.

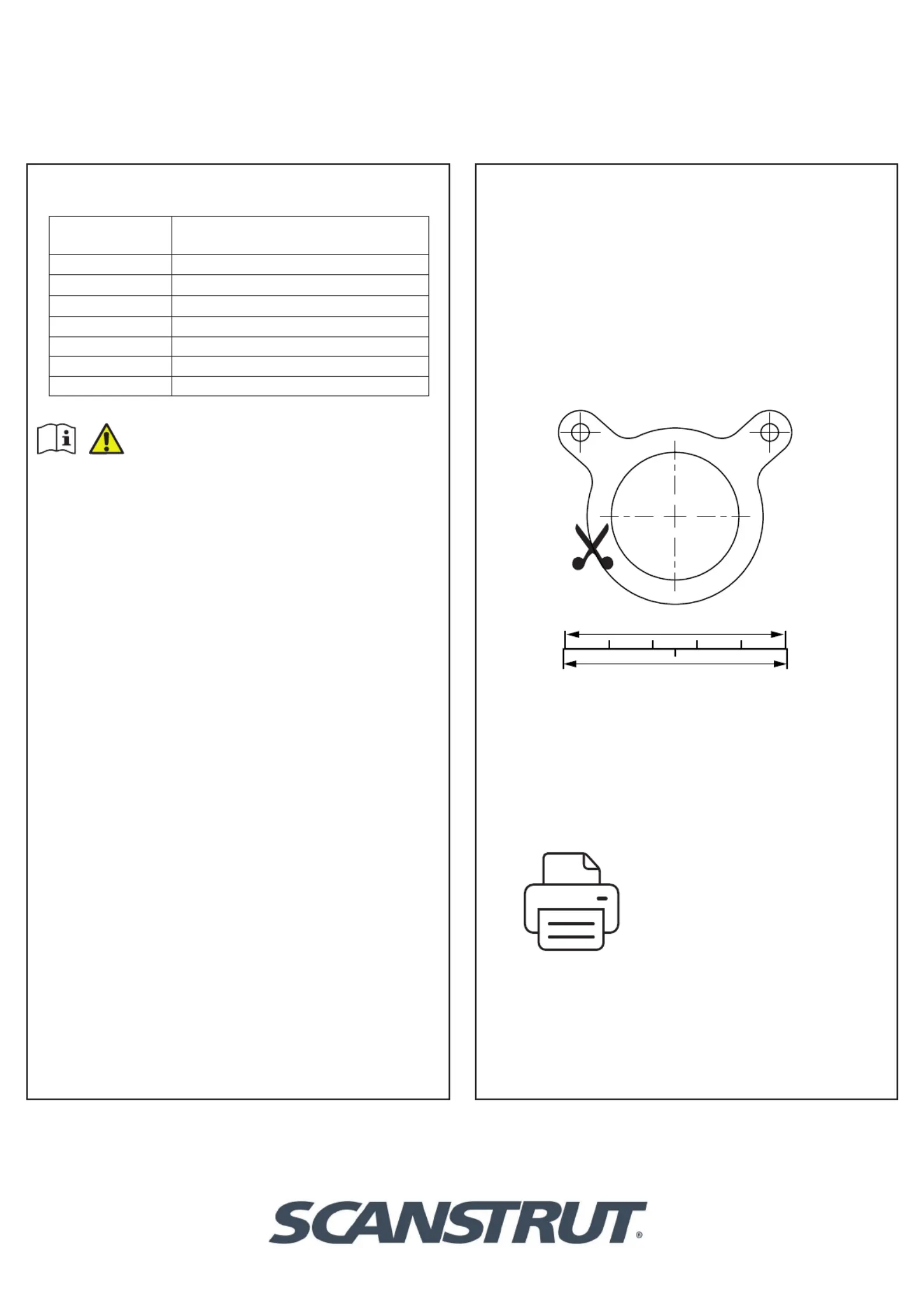

Cutting Template
1:1 Scale
Print document 1:1
Scale for correct cutting
template size.
Input voltage
12/24V System 10-30V DC
Input current Max 1.5A
Output Type A 5V 1A⎓
Output Type A 5V 2.1A⎓
Total Output Current 3.1A
Standby draw 0.01W
Waterproof rating IPX4
Certication CE, ROHS
Technical information
29 mm
(1 1/8"
)
50 mm
2"
