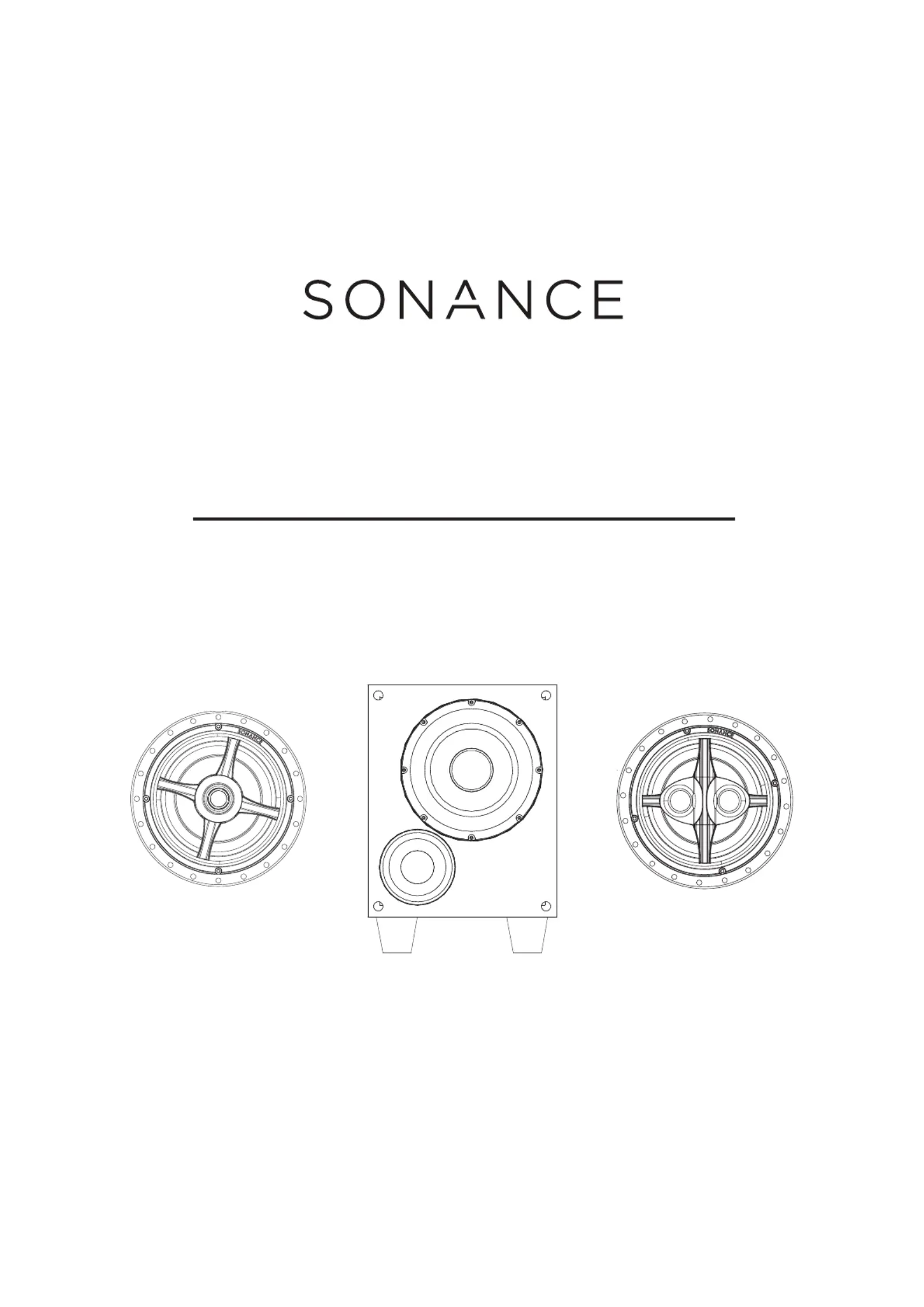

MAG5.1R

I N S T R U C T I O N M A N U A L

MAG6R | MS8 SUB | MAG6R SUR

IMPORTANT SAFETY INFORMATION

You should always follow these basic safety precautions when

using your Sonance MAG5.1R, to reduce the risk of ﬁre, electric

shock, and injury to persons:

1. Read and retain instructions: Read all the safety and operating

instructions before operating the ampliﬁer, and retain them for

future reference.

2. Heed warnings: Adhere to all warnings and precautions listed

on the ampliﬁer and in the operating instructions.

3. Follow instructions: Follow all operating instructions.

4. Water: Never use the ampliﬁer next to water.

5. Carts and stands: The ampliﬁer should be used

only with a cart or stand that is recommended

by the manufacturer. An ampliﬁer and cart

combination should be moved with care.

6. CAUTION: TO PREVENT ELECTRIC SHOCK, DO NOT USE THE

POLARIZED PLUG WITH AN EXTENSION CORD, RECEPTACLE,

OR OTHER OUTLETS UNLESS THE BLADES CAN BE FULLY

INSERTED TO PREVENT BLADE EXPOSURE.

7. Ventilation: The Subwoofer should be situated so that its

location or position does not interfere with its proper ventilation.

For example, the subwoofer should not be situated on a bed,

sofa, rug, or similar surface that may block the ventilation

openings; or be placed in a built-in situation, such as a book case

or a cabinet, that may impede the ﬂow of air over the subwoofer.

8. Heat: Situate the ampliﬁer away from heat sources such

as radiators, stoves, or other appliances (including external

ampliﬁers) that produce heat.

9. Grounding or polarization: Grounding or polarization are

precautions that should be taken so that these attributes are

not defeated.

10. Power-cord protection: Route power supply cords so that

they will not be walked on or pinched by items placed on or

against them.

11. Cleaning: To clean the ampliﬁer, use “canned air” or wipe

the ampliﬁer with a soft cloth. Do not use solvents, as they may

damage the ampliﬁer.

12. Non-use periods: Unplug the ampliﬁer’s power cord from

the outlet when the ampliﬁer will be left unused for a long period

of time.

13. Object entry: Care should be taken so that objects do not fall

through the opening of the enclosure.

14. Moisture: Do not expose the ampliﬁer to dripping or

splashing. Do not place objects ﬁlled with liquids, such as vases,

on the ampliﬁer.

15. Damage requiring service: Have the ampliﬁer serviced by a

qualiﬁed service personnel when:

• The power supply cord or the plug has been damaged.

• Objects have fallen, or liquid has been spilled into the ampliﬁer.

• The ampliﬁer has been exposed to rain.

• The ampliﬁer does not appear to operate normally or exhibits a

marked change in performance.

• The ampliﬁer has been dropped, or the enclosure damaged.

16. Servicing: The user should not attempt to service the

ampliﬁer beyond that described in the operating instructions. All

other servicing should be referred to qualiﬁed service personnel.

17. Lifting: Improper lifting of the 28 lbs. MS8 SUB can cause

personal injury.

18. Power requirement: Do not connect the Subwoofer to the

accessory outlet of any other component. A minimum 15 amp

(20 amp preferred) grounded wall outlet is required.

WARNING: THE POWER (MAINS) PLUG SERVES AS THE

AMPLIFIER’S DISCONNECT DEVICE. THE DISCONNECT DEVICE

SHALL REMAIN READILY OPERABLE DURING OPERATION.

TO ENSURE THAT THE DISCONNECT DEVICE (POWER PLUG)

IS EASILY ACCESSIBLE, THE USER SHALL NOT PLACE THE

AMPLIFIER IN A CONFINED AREA DURING OPERATION.

19. Storms: To prevent damage to components, unplug all

electronic equipment during thunderstorms.

INSTRUCTION MANUAL

MAG5.1R SYSTEM

INTRODUCTION

Thank you for purchasing MAG5.1R. When properly installed your

new speakers will give you years of entertainment pleasure.

BEFORE INSTALLATION

Determine the location for the speaker (see Speaker

Placement in column 1).

Perform an obstruction survey using a stud ﬁnder to be

certain that there are no studs, conduit, pipes, heating, ducts,

pocket doors or air returns in the ceiling cavity that will

interfere with the speaker.

If you are unsure about obstructions, drill a small hole in the

center of the outline and insert a coat hanger wire into the hole

to feel around for possible obstructions. Cut the mounting hole

using a keyhole or drywall saw, and run the speaker wires from

the mounting hole to the ampliﬁer location.

INSTALLATION

Sonance Speakers feature integral Roto-Lock® mounting

system for quick mounting directly into existing ceilings.

1. Strip 1/4” – 1/2” (6mm – 12mm) of insulation from each

speaker lead. Twist the strands or tin the exposed wire with

solder to ensure that there are no stray strands.

2. The speaker’s terminals are spring-loaded. Push the top of

each terminal down to open the connector and insert the

exposed wires into the holes in the spring terminals.The

speaker’s positive spring terminal is labeled with a red dot;

the negative spring terminal is labeled with a black dot.

Doublecheck that you connected ampliﬁer “+” to speaker “+”

and ampliﬁer “–” to speaker “–”.

NOTE: STRAY STRANDS THAT TOUCH EACH OTHER CAN

CAUSE A SHORT-CIRCUIT THAT CAN DAMAGE THE AMPLIFIER.

NOTE: CONSULT LOCAL BUILDING CODES BEFORE RUNNING

SPEAKER WIRES THROUGH CEILINGS.

HOME THEATER SPEAKER PLACEMENT

MAG6R - Left, Center & Right Speakers (see Figure 1)

• Place the left, center and right speakers 1 – 2 feet (0.3m –

0.6m) in front of the video screen, 6 – 10 feet (1.8m – 3m) apart,

with the center channel speaker as close to midway between the

left and right speakers as possible.

• The main listening position should be 4 – 10 feet (1.2m – 2m)

away from the speakers.

MAG6R SUR - Surround Speakers (see Figure 1)

• Locate the left and right surround speakers 2 – 6 feet (0.6m

–1.8m) behind the listening position. The speakers should be

6 – 10 feet (1.8m – 3m) apart.

SUBWOOFER PLACEMENT

As with any speaker, your Sonance MS8 SUB’s performance

will be inﬂuenced by its placement in your listening room.

However, since our ears do not hear directional sound at deep

bass frequencies, your subwoofer’s placement is not as critical

to its overall performance as is the placement of your system’s

other speakers. Therefore, your subwoofer will deliver superior

performance from a wide variety of room locations.

The following guidelines — plus some experimentation —

will help you get the best performance possible from your

subwoofer in your home theater space. Placing the subwoofer

as close as possible to the same plane as your main (left and

right) speakers will help your subwoofer’s sound properly

blend with the sound from your main speakers, creating a

solid, integrated soundstage that enhances the impact of

music and ﬁlms.

We suggest starting with the subwoofer in line with your left

and right speakers, somewhere between either speaker and

the side wall (see Figure 2). Your subwoofer’s location relative

to walls will inﬂuence the amount of bass it produces —

placing the subwoofer next to a wall will increase bass output;

placing it in a corner will maximize its bass output. However,

corner placement can increase standing waves in the room

(peaks and dips in bass response related to the room’s

dimensions) that can make the subwoofer’s bass performance

sound uneven at dierent listening locations. Experiment with

dierent subwoofer locations until you ﬁnd one that produces

strong bass that sounds clear (without boominess) at the

seating locations while maintaining the sound’s impact.

Your local authorized Sonance dealer is an expert in

audio/video system planning and installation. We strongly

recommend that you work with your dealer to ensure that

you get the best performance possible from your subwoofer.

NOTE: THESE SUBWOOFERS CAN PRODUCE ENOUGH BASS

ENERGY TO CAUSE OBJECTS IN THE ROOM TO RATTLE OR

BUZZ DURING PASSAGES WITH VERY STRONG BASS. IF THIS

HAPPENS, TRY RELOCATING THE ITEMS. IF THAT FAILS TO

STOP THE RATTLING YOU MAY HAVE TO REMOVE THE ITEMS.

BOX CONTENTS

MAG5.1R box contains:

(3) MAG6R speakers

(2) MAG6R SUR speakers

(1) MS8 SUB subwoofer
