VISUAL EXPERIENCE SERIES WITH SINGLE STEREO TECHNOLOGY
VX46R SST | VX62R SST | VX66R SST | VX86R SST | VX66 SST
I N STA L L AT I O N A N D S U P P O R T M A N UA L
2
VISUAL EXPERIENCE SPEAKERS
VX46R SST | VX62R SST | VX66R SST |
VX86R SST | VX66 SST
TABLE OF CONTENTS
2 Box Contents
2 Introduction
2 Important Safety Information
2 Installation
4 Painting
5 Technical Specifications
8 Warranty

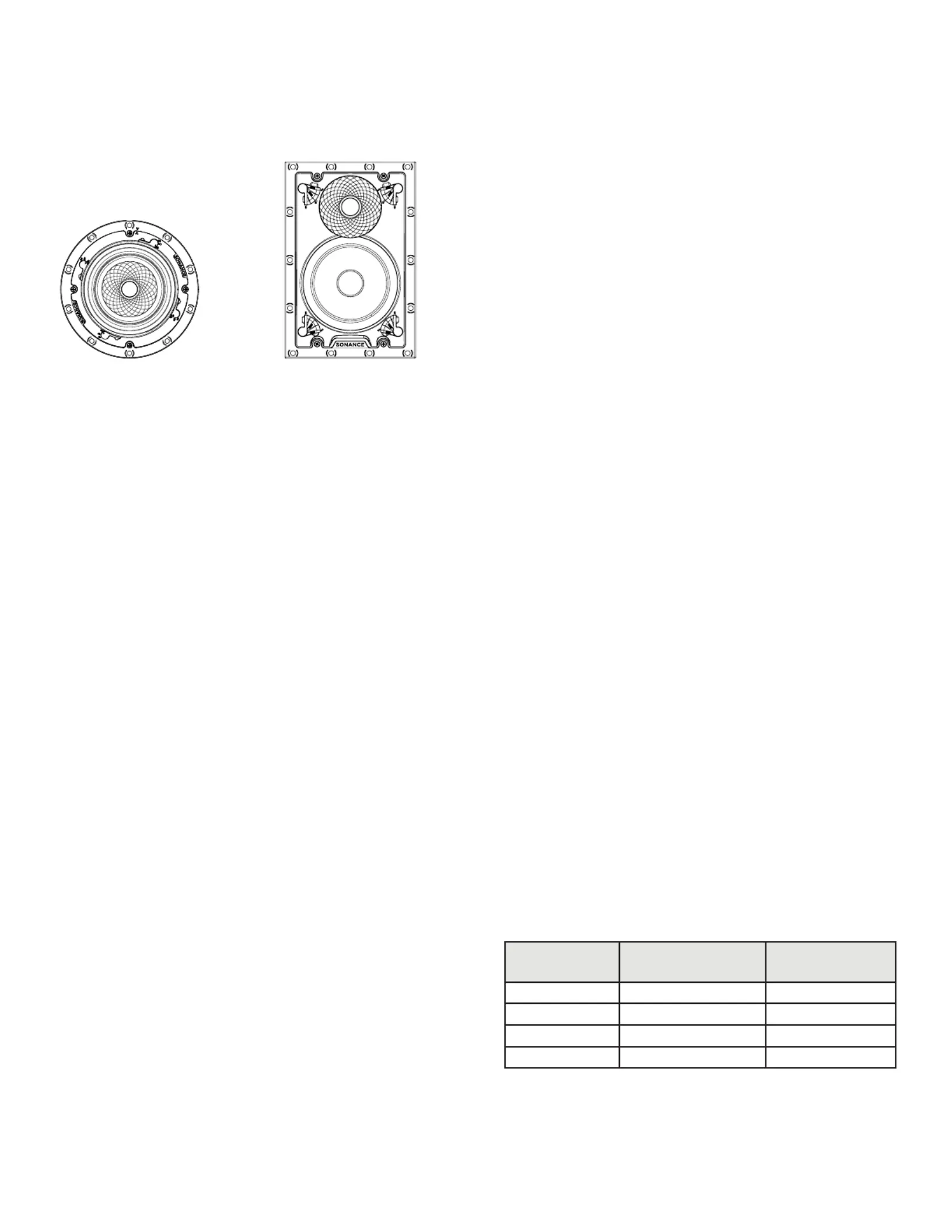

ROUND
FRONT VIEW
BOX CONTENTS
(1) Visual Experience Single Stereo Speaker
(1) Paintable VX Micro Trim Grille
(1) Cutout Template
INTRODUCTION
Thank you for selecting Sonance Visual Experience
Single Stereo Technology ® (SST) Speakers. Sonance has
over four decades of experience in premium distributed
audio. Please take the time to carefully read through the
manual and study the illustrations. This extra time can
lead to trouble-free operation and continued musical
enjoyment.
IMPORTANT: Read this section in its entirety before
attempting use of speaker.
SAFETY WARNING: These speakers have FastMount®
tabs that prevent the speakers from falling out of
the mounting holes during the installation process.
The edges of the FastMount tabs are very sharp. Use
caution when handling the speakers.
IMPORTANT SAFETY INSTRUCTIONS
Always follow these basic safety precautions when
using your speakers to reduce the risk of fire, electric
shock, and injury to prople or objects.
1. Read all the safety and operating instructions
before operating the speaker and retain them for
future reference.
2. Adhere to all warnings and precautions listed on the
speaker and in the operating instructions.
3. Follow all operating instructions.
INSTALLATION
1. Determine the location for the speaker.
2. Perform an obstruction survey to be certain that
there are no studs, conduit, pipes, heating ducts,
pocket doors, or air returns in the wall cavity that
will interfere with the speaker.
3. Position the included cutout template where the
speaker is to be located and pencil an outline on the
wall or ceiling. If you are unsure about obstructions,
drill a small hole in the center of the outline and
insert a coat hanger wire into the hole to feel-
around for possible obstructions.
4. Cut the mounting hole using tools appropriate for
the construction, and run the speaker wires from
the mounting hole to the amplifier location.
IMPORTANT: Consult local building codes before
running speaker wires through walls and/or ceiling.
SPEAKER PLACEMENT
VX SST speakers reproduce both stereo channels from
a single location, it will deliver outstanding performance
from a wide variety of mounting locations where a
pair of stereo speakers would be impractical, including
hallways, bathrooms, and closets.
The table below shows how far apart SST speakers
can be spaced in distributed audio applications while
still providing good coverage for standing and seated
listeners (see Figure 1).
RECTANGLE
FRONT VIEW
CEILING
HEIGHT
SPACING
(STANDING)
SPACING
(SEATED)
9-Foot Ceiling 5’7” 9’5”
10-Foot Ceiling 9’7” 13’5”
12-Foot Ceiling 13’7” 17’5”
14-Foot Ceiling 17.7’ 21.5’
3
BEFORE INSTALLATION: RETROFIT
1. Determine the location for the speaker (see
SPEAKER PLACEMENT section above).
2. Perform an obstruction survey to be certain that
there are no studs, conduit, pipes, heating ducts,
pocket doors, or air returns in the wall or ceiling
cavity that will interfere with the speaker.
3. See TECHNICAL SPECIFICATIONS for mounting
cutout dimensions and depth requirements.
4. Position the included cutout template where the
speaker is to be located and pencil an outline on the
wall or ceiling. If you are unsure about obstructions,
drill a small hole in the center of the outline and
insert a coat hanger wire into the hole to feel around
for possible obstructions.
5. Cut the mounting hole using a keyhole or drywall
saw, and run the speaker wires from the mounting
hole to the amplifier location.
INSTALLATION
Sonance Visual Experience SST speakers feature
exclusive FastMount® tabs and an integral RotoLock ®
mounting system for quick mounting directly into
existing walls and ceilings.
1. Remove the paint plug from the speaker.
2. Run speaker wire from each speaker to the amplifier
location.
3. Strip 1⁄4” – 1⁄2” of insulation from each speaker lead.
Twist the strands or tin the exposed wire with solder
to ensure that there are no stray strands (stray
strands that touch each other can cause a short-
circuit that can damage the amplifier).
4. The speaker’s connector posts are spring loaded.
Push the top of each connector post down to open
the connector and insert the exposed wires into the
holes in the posts. The speaker’s positive post is
labeled with a red dot; the negative post is labeled
with a black dot. Double check that you connected
amplifier “+” to speaker “+” and amplifier “–” to
speaker “–”.
5. Make sure all the RotoLock clamps are in the full
clockwise position so that they are tucked within
the mounting hole’s border. Insert the speaker into
the hole in the wall or ceiling (see Figure 2). The
RotoLock system can accommodate a maximum
wall or ceiling material thickness of 1 1/4”.
The FastMount tabs will prevent the speaker from falling
out of the mounting hole; allowing the installer to let
go of the speaker to pick up tools or other items (see
Figure 3).
NOTE: The FastMount tabs are designed for one time
use only. If the speaker is removed from the mounting
hole, the FastMount tabs will disconnect and remain
inside the wall or ceiling.

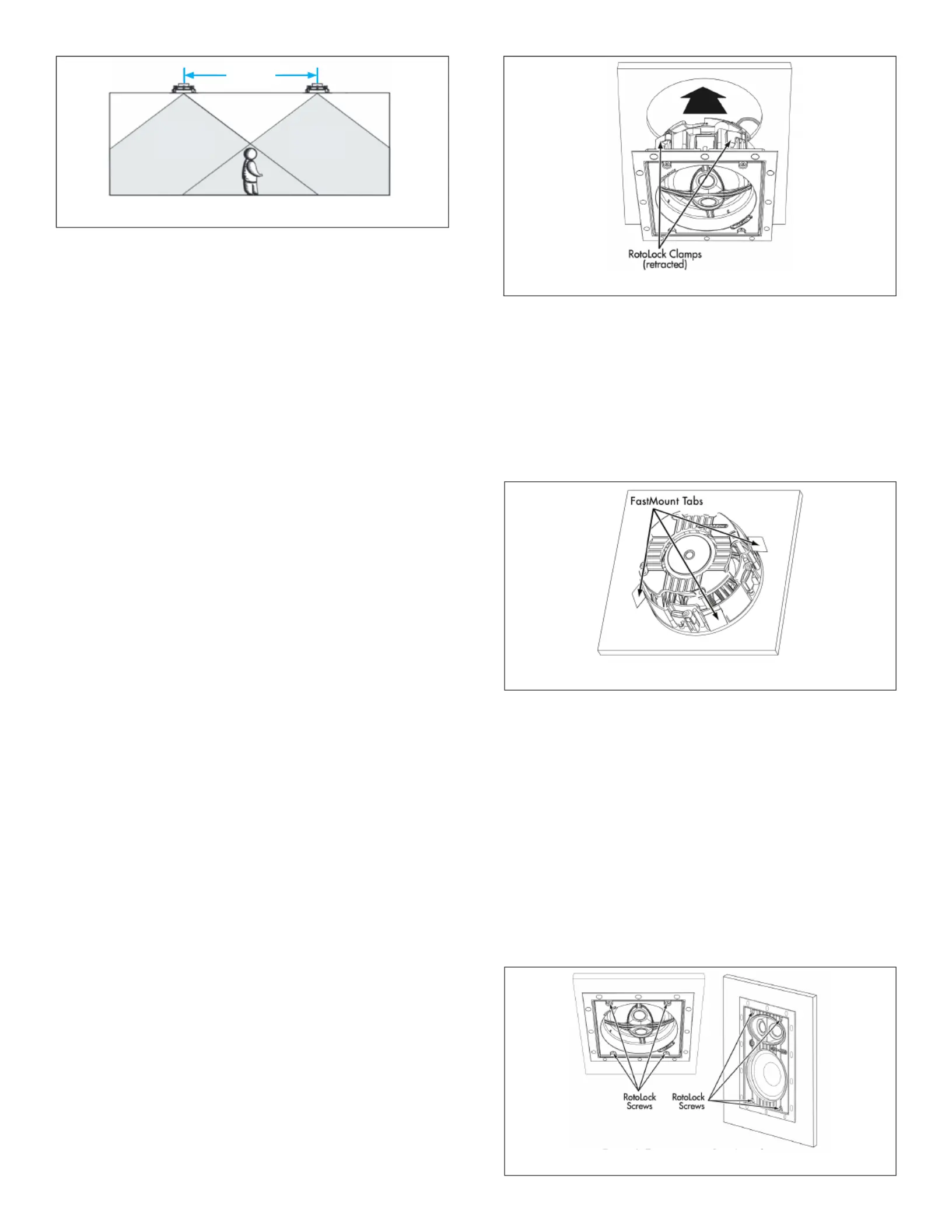

Figure 1: Coverage Area
Coverage Area Coverage Area
Speaker
Spacing
Figure 2: Inserting Speaker into Mounting Hole
Figure 3: Inserting Speaker into Mounting Hole
6. Tighten the four screws on the front of the speaker
bae (see Figure 4). The RotoLock clamps will
automatically rotate into position and begin
clamping the speaker. When you notice resistance
on the screws the speaker has been clamped
successfully.
IMPORTANT: Always use low torque settings; NEVER
over tighten.
NOTE: Adjusting the tension of the RotoLock clamps
so that the speaker frame is flat will help ensure that
the grille contacts the wall all the way around the
speaker for a proper fit.
Figure 4: Tightening the Rotolock Screws
