VISUAL EXPERIENCE SERIES
VX42 | VX46 | VX62 | VX66 | VX82 | VX86
VX42R | VX46R | VX62R | VX64R | VX66R | VX82R | VX86R
I N S TA L L AT I O N A N D S U P P O R T M A N UA L
2
IMPORTANT PRODUCT FEATURE
VISUAL EXPERIENCE SPEAKERS
VX42 | VX46 | VX62 | VX66 | VX82 | VX86 |
VX42R | VX46R | VX62R | VX64R | VX66R |
VX82R | VX86R
TABLE OF CONTENTS
2 Box Contents
2 Introduction
2 Important Safety Information
2 Installation
5 Grille Painting
6 Technical Specications
12 Warranty

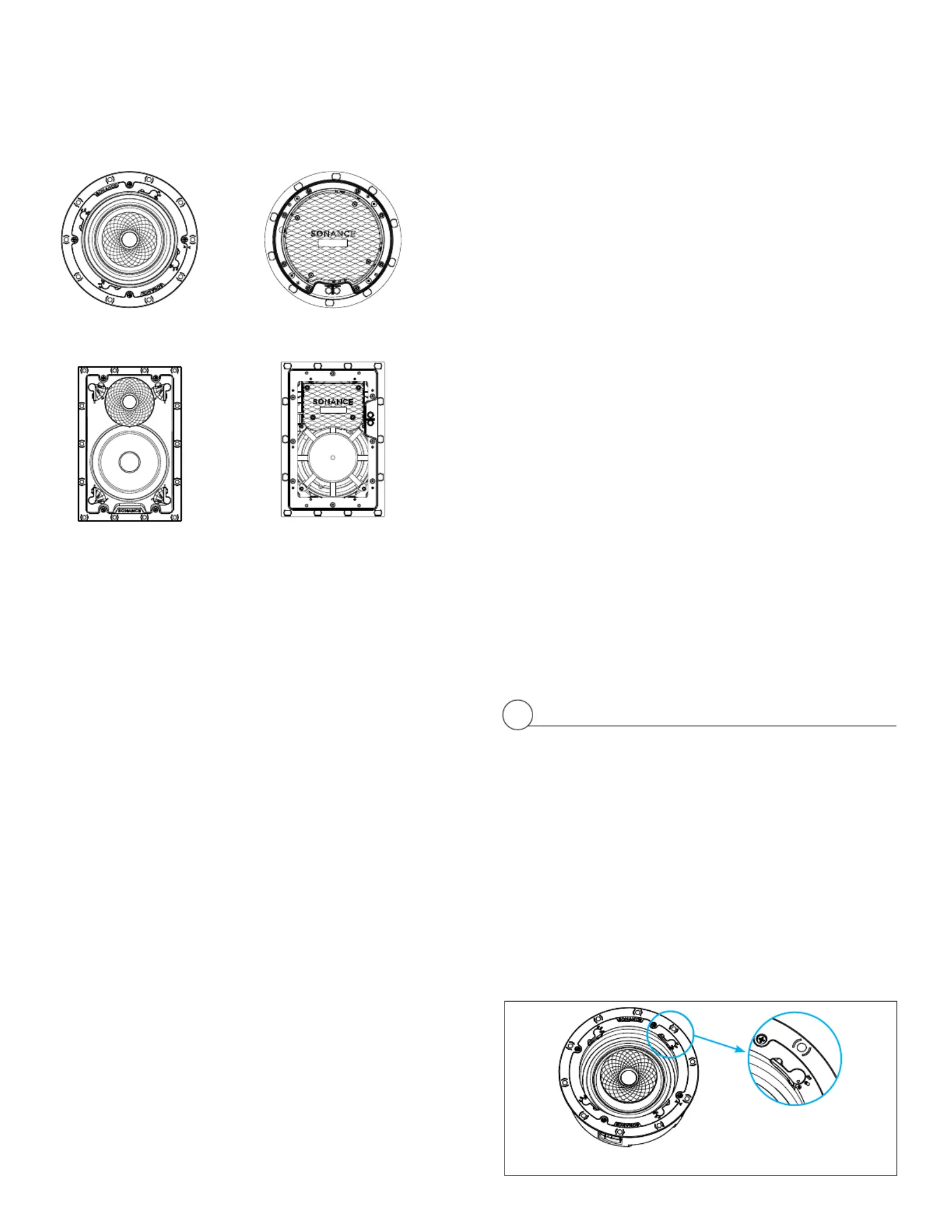

ROUND FRONT VIEW ROUND BACK VIEW
BOX CONTENTS
(1) Cutout Template/Quickstart Guide
(2) VX Model Speakers
(2) Paintable Grilles
INTRODUCTION
Thank you for selecting Sonance Visual Experience
Speakers. Sonance has over four decades of experience
in premium distributed audio. Please take the time
to carefully read through the manual and study the
illustrations. This extra time can lead to trouble-free
operation and continued musical enjoyment.
IMPORTANT: Read this section in its entirety before
attempting use of speaker.
IMPORTANT SAFETY INSTRUCTIONS
Always follow these basic safety precautions when using
your speakers to reduce the risk of re, electric shock,
and injury to prople or objects.
1. Read all the safety and operating instructions before
operating the speaker and retain them for future
reference.
2. Adhere to all warnings and precautions listed on the
speaker and in the operating instructions.
3. Follow all operating instructions.
INSTALLATION
1. Determine the location for the speaker.
2. Perform an obstruction survey to be certain that
there are no studs, conduit, pipes, heating ducts,
pocket doors, or air returns in the wall cavity that will
interfere with the speaker.
3. Position the included cutout template where the
speaker is to be located and pencil an outline on the
wall or ceiling. If you are unsure about obstructions,
drill a small hole in the center of the outline and
insert a coat hanger wire into the hole to feel-around
for possible obstructions.
4. Cut the mounting hole using tools appropriate for
the construction, and run the speaker wires from the
mounting hole to the amplier location.
IMPORTANT: Consult local building codes before
running speaker wires through walls.
Figure 1: Latch in the LOCKED Position
i
Sonance Visual Experience speakers can be installed
using a one-stage or two-stage installation process
thanks to the innovative Flex Frame mounting system.
Read through the installation steps for each to help
decide which process works best for you, then follow the
appropriate steps to install your VX product.
ONE-STAGE INSTALLATION
1. Leave the Sonance VX speaker module Flex Frame
latches in the LOCKED position as supplied out
of the box. This will ensure that your VX speaker
remains a single piece for the one-stage installation
process (see Figure 1).
RECTANGLE
FRONT VIEW
RECTANGLE
BACK VIEW
3
Figure 3: Roto-Lock Toggle Feet Retracted
INSTALLING INTO THICKER SURFACES
The Sonance Roto-Lock system can accommodate
material thicknesses up to 1.5” (38mm) out of the box.
For deeper substrates that are up to 2.125” (54mm) thick,
remove the tip of the Roto-Lock toggles before inserting
the speaker into the cutout opening (see Figure 4).
7. Insert the speaker into the mounting hole and
tighten the four screws on the front of the speaker
bafe (see Figure 5).
4. The speaker’s positive post is labeled with a red dot;
the negative post is labeled with a black dot.
5. After making all connections, double-check that you
connected amplier “+” to speaker “+” and amplier “–”
to speaker “–”.
Sonance Visual Experience Series Speakers feature an
exclusive integral RotoLock® mounting system for quick
mounting directly into existing walls and ceilings.
6. Make sure all the Roto-Lock toggle feet are retracted
so that the speaker can t within the mounting hole
(see Figure 3).
8. The Roto-Lock clamps will automatically rotate into
position and begin clamping the speaker.
Figure 5: Tightening the Roto-Lock Screws
Figure 4: Remove Roto-Lock Toggles Before Inserting
Speaker into Cutout Opening of Thick Surfaces
IMPORTANT: Always use low-torque settings when
using a screw gun and go very slowly; never over
tighten.
IMPORTANT: Adjusting the tension of the Roto-Lock
Clamps to help the speaker sit at with the surface will
help ensure proper grille contact all the way around
the speaker.
TWO-STAGE INSTALLATION
Sonance Visual Experience speaker models can be
installed leveraging a unique two-stage process which
allows the installer to separate the speaker frame from
the speaker module to easily hold, wire, and secure
the frame to the installation surface (see Figure 6). This
feature makes it simple to pre-wire with maximum
visibility and maneuverability without risk of dropping
the speaker while on a ladder.
Figure 2: Connection Terminals
2. Strip 1/4” – 1/2” (6mm – 13mm) of insulation from each
speaker lead. Twist the strands or tin the exposed
wire with solder to ensure that there are no stray
strands.
IMPORTANT: Stray strands that touch each other can
cause a short-circuit that can damage the amplier.
3. The speaker’s connector posts are spring-loaded.
Push the top of each connector post down to open
the connector and insert the exposed wires into the
holes in the posts (see Figure 2).
Figure 6: Speaker Frame and Module Diagram
1. Use thumb pressure to rotate the VX speaker module
Flex Frame latch into the UNLOCKED position.
