Box Contents
VPXT6 or VPXT6R or VPXT8R
(1) Quickstart guide / cutout template
(2) Speakers
(2) Paintable grilles
Or
VPXT6R SST
(1) Quickstart guide / cutout template
(1) Speaker
(1) Paintable grille
EXTREME SPEAKERS INSTRUCTION MANUAL
VPXT6 | VPXT6R | VPXT6R SST | VPXT8R
SONANCE VISUAL PERFORMANCE SERIES
Introduction
Thank you for purchasing Sonance Visual Performance
Series Speakers. This guide covers the following speaker
models: VPXT6 (6” Rectangular), VPXT6R (6” Round),
VPXT6R SST (6” Round, Single-Stereo Technology®) and
VPXT8R (8” Round).
Before Installation: Retro-t
1. Determine the location for the speaker.
2. Perform an obstruction survey to be certain that there are
no studs, conduit, pipes, heating ducts, pocket doors
or air returns in the wall cavity that will interfere with
the speaker.
3. Position the included cutout template where the
speaker is to be located and pencil an outline on the
wall or ceiling.
• If you are unsure about obstructions, drill a small hole
in the center of the outline and insert a coat hanger wire
into the hole to feel-around for possible obstructions.
4. Cut the mounting hole using tools appropriate for the
construction, and run the speaker wires from the
mounting hole to the amplier location.
Installation
Sonance Visual Performance Series Extreme speakers
feature an exclusive integral RotoLock® mounting system for
quick mounting directly into existing walls and ceilings.
1. Strip 1/4” – 1/2” (6mm – 13mm) of insulation from each
speaker lead. Twist the strands or tin the exposed wire
with solder to ensure that there are no stray strands.
1
NOTE: CONSULT LOCAL BUILDING CODES BEFORE RUNNING
SPEAKER WIRES THROUGH WALLS.
NOTE: STRAY STRANDS THAT TOUCH EACH OTHER CAN CAUSE A
SHORT- CIRCUIT THAT CAN DAMAGE THE AMPLIFIER.
2. The speaker’s connector posts are spring-loaded.
Push the top of each connector post down to open the
connector and insert the exposed wires into the holes in
the posts (see Figure 1).
3. The speaker’s positive post is labeled with a red dot; the
negative post is labeled with a black dot.
• The VPXT6R SST has two sets of connection terminals,
located on opposite sides of the crossover board.
4. After making all connections, double-check that you
connected amplier “+” to speaker “+” and amplier “–”
to speaker “–”.
5. Make sure all the Roto-Lock toggle feet are retracted so
that they are tucked within the mounting hole’s border.

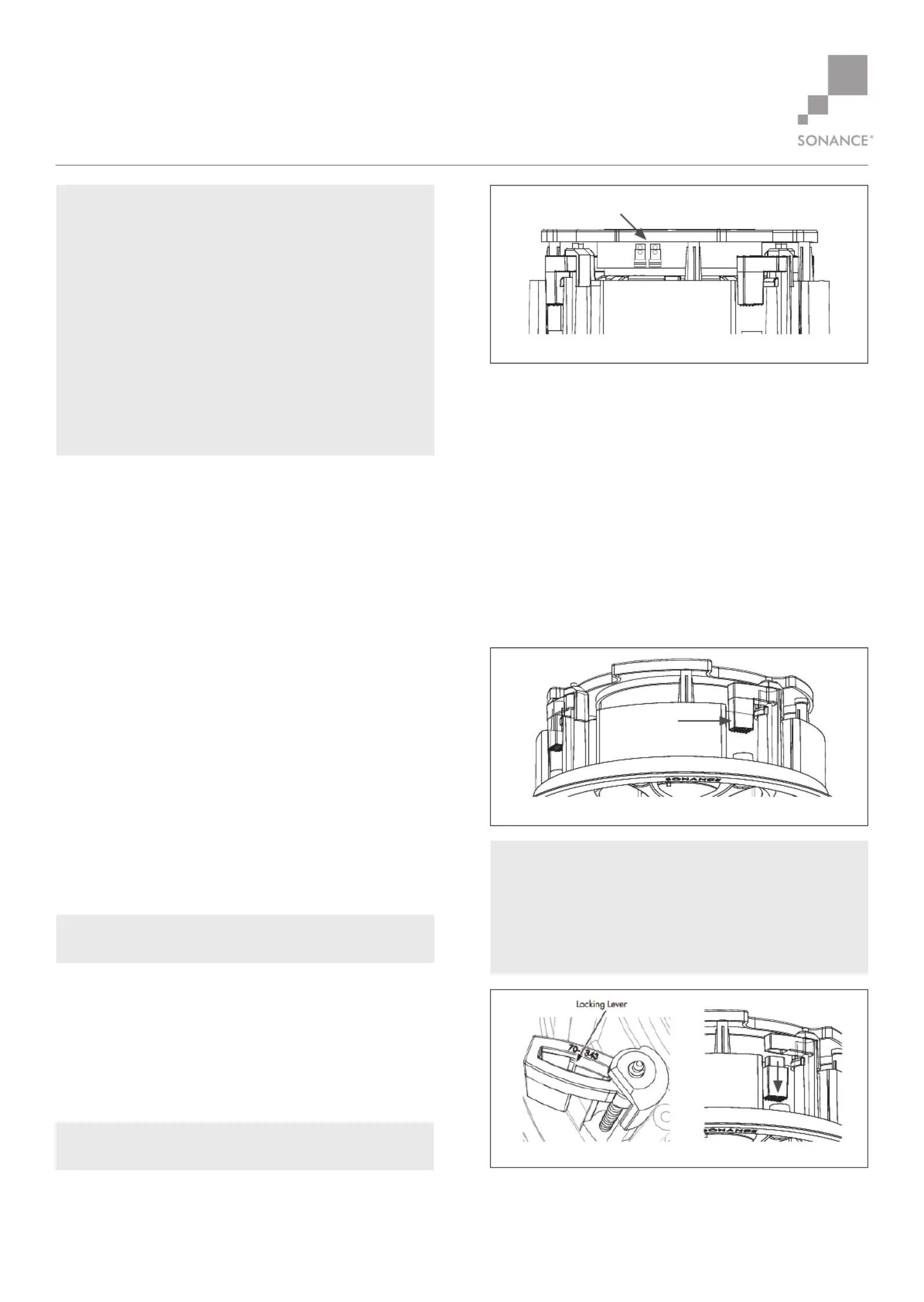

Figure 1: Connection Terminals
Figure 2: Roto-Lock Toggle Feet Retracted
Connection Terminals
NOTE: THE ROTO-LOCK SYSTEM CAN ACCOMMODATE A WALL
MATERIAL THICKNESS OF 1 1/4” (32MM) WITH THE TOGGLE
FOOT CAP REMOVED THE SYSTEM CAN ACCOMMODATE A WALL
MATERIAL THICKNESS OF 1 3/4” (44MM). TO REMOVE THE
CLAMP FEET, USE A SMALL SCREWDRIVER TO GENTLY RELEASE
THE LOCKING LEVERS (FIGURE 3, LEFT). THEN REMOVE THE FEET
FROM THE CLAMPS (FIGURE 3, RIGHT).
Figure 3: Removing the Roto-Lock Clamp Feet
VISUAL PERFORMANCE EXTREME SPEAKERS INSTRUCTION MANUAL

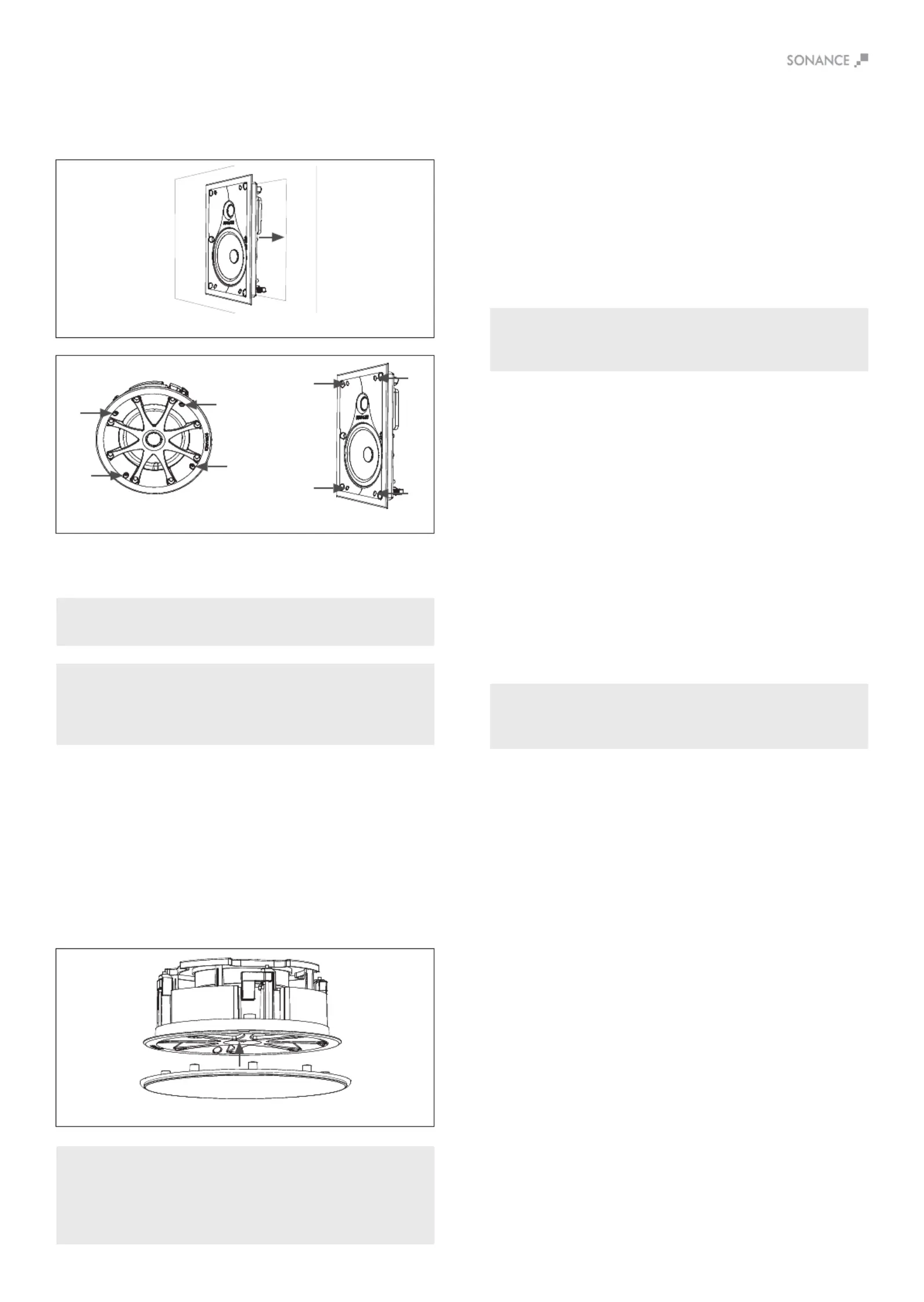

6. Insert the speaker into the mounting hole (Figure 4) and
tighten the four screws on the front of the speaker bae.
(Figure 5).
7. The Roto-Lock clamps will automatically rotate into
position and begin clamping the speaker.
8. The Visual Performance Extreme Grille features Sonance
Extreme Post Capture (XPC) technology. XPC holds the
grille in place by several small magnets located on the
posts of the grille and inside the post holes located on
the speaker bae (Figure 6). Place the grille against the
speaker, aligning the grille posts and post holes.
The magnets will pull the grille posts into the post holes
and hold the grille rmly in place. When the grille is
properly installed, the grille trim should make contact
with the mounting surface all the way around the speaker.
Figure 5: Tightening the Roto-Lock Screws
Figure 4: Inserting the Speaker into the Mounting Hole
Figure 6: Attaching the Grille
IMPORTANT: ALWAYS USE LOW-TORQUE SETTINGS WHEN USING A
SCREW GUN; NEVER OVER TIGHTEN.
NOTE: ADJUSTING THE TENSION OF THE ROTO-LOCK CLAMPS SO
THAT THE SPEAKER FRAME IS FLAT WILL HELP ENSURE THAT THE
GRILLE CONTACTS THE WALL ALL THE WAY AROUND THE SPEAKER
FOR A PROPER FIT.
NOTE: EXTREME POST CAPTURE TECHNOLOGY INVOLVES STRONG
MAGNETS THAT MAY CAUSE A FAST CONNECTION WHEN THE
GRILLE IS BEING INSTALLED ONTO THE SPEAKER. TAKE CAUTION
WHEN ALIGNING THE POSTS TO THE HOLES TO PROTECT FINGERS
FROM GETTING CAUGHT.
Roto-Lock
Screws
2
PAINTING THE GRILLES
Sonance Visual Performance Series speaker grilles
completely cover the exposed speaker frame, so only the
grilles (not the speakers themselves) require painting.
1. Prime the grille with a metal primer/bonder in a spray can.
Carefully follow the manufacturerʼs directions on the can.
2. We recommend using water-based latex paint on
the grilles. Thin the paint with a proper thinning agent
to a ratio of 1:1 paint-to-thinner, and strain it through a
standard mesh strainer to remove any lumps.
3. Use a small touch-up gun or cap-spray gun with a #3 tip
for painting.
(A) Set the nozzle with a medium to wide fan.
(B) Set the pressure regulator to 60psi.
(C) Lightly spray the front of the grille in 3 quick strokes
from approximately 10 inches away.
(D) Let the paint set for a minute, then turn the grille 90º
and lightly spray the grille again in 3 quick strokes.
Repeat this step until all four sides of the grille have
been evenly painted.
4. While the paint is still wet, inspect the grille and make
sure that excess paint has not collected underneath the
grille frame, and that none of the grille perforations are
lled with paint. If any are, use compressed air to blow
the paint out of the perforations.
5. Once the paint has thoroughly dried, mount the grille on
the speaker.
IMPORTANT: DUE TO ITS INCREASED DURABILITY, OIL-BASED
PAINT SHOULD BE CONSIDERED FOR VP EXTREME SERIES
SPEAKERS THAT ARE INSTALLED OUTDOORS.
IMPORTANT: IF YOU FIND ANY GRILLE PERFORATIONS THAT ARE
PLUGGED WITH PAINT AFTER THE PAINT HAS DRIED, USE A STRAIGHT
PIN OR SEWING NEEDLE TO CAREFULLY REMOVE THE PAINT.
©2018 Sonance. All rights reserved. Sonance and Visual Performance are registered trademarks of Dana Innovations. Due to continuous product improvement,
all features and specications are subject to change without notice. For the latest Sonance product specication information visit our website: www.sonance.com
SONANCE • 991 Calle Amanecer • San Clemente, CA 92673 USA • PHONE: (949) 492-7777 • FAX: (949) 361-5151 • Technical Support: (949) 492-7777 04.27.18
VISUAL PERFORMANCE EXTREME SPEAKERS INSTRUCTION MANUAL
LIMITED FIVE (5) YEAR WARRANTY
Sonance warrants to the rst end-user purchaser that this Sonance-brand product (“Product”), when purchased from an authorized Sonance Dealer/
Distributor, will be free from defective workmanship and materials for the period stated below. Sonance will at its option and expense during the warranty
period, either repair the defect or replace the Product with a new or remanufactured Product or a reasonable equivalent.
EXCLUSIONS
TO THE EXTENT PERMITTED BY LAW, THE WARRANTY SET FORTH ABOVE IS IN LIEU OF, AND EXCLUSIVE OF, ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, AND IS THE SOLE AND EXCLUSIVE WARRANTY PROVIDED BY SONANCE. ALL OTHER EXPRESS AND IMPLIED
WARRANTIES, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, IMPLIED WARRANTY OF FITNESS FOR USE, AND IMPLIED
WARRANTY OF FITNESS FOR A PARTICULAR PURPOSE ARE SPECIFICALLY EXCLUDED.
No one is authorized to make or modify any warranties on behalf of Sonance. The warranty stated above is the sole and exclusive remedy and Sonance’s
performance shall constitute full and nal satisfaction of all obligations, liabilities and claims with respect to the Product.
IN ANY EVENT, SONANCE SHALL NOT BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL, ECONOMIC, PROPERTY, BODILY INJURY, OR PERSONAL
INJURY DAMAGES ARISING FROM THE PRODUCT, ANY BREACH OF THIS WARRANTY OR OTHERWISE.
This warranty statement gives you specic legal rights, and you may have other rights which vary from state to state. Some states do not allow the exclusion
of implied warranties or limitations of remedies, so the above exclusions and limitations may not apply. If your state does not allow disclaimer of implied
warranties, the duration of such implied warranties is limited to period of Sonance’s express warranty.
Your Product Model and Description: VPXT6 or VPXT6R or VPXT6R SST or VPXT8R.
Warranty Period for this Product: Five (5) years from the date on the original sales receipt or invoice or other satisfactory proof of purchase.
Additional Limitations and Exclusions from Warranty Coverage: The warranty described above is non-transferable, applies only to the initial installation
of the Product, does not include installation of any repaired or replaced Product, does not include damage to allied or associated equipment which may
result for any reason from use with this Product, and does not include labor or parts caused by accident, disaster, negligence, improper installation, misuse
(e.g. overdriving the amplier or speaker, excessive heat, cold or humidity), or from service or repair which has not been authorized by Sonance. Obtaining
Authorized Service: To qualify for the warranty, you must contact your authorized Sonance Dealer/Installer or call Sonance Customer Service/Technical
Support at (949) 492-7777 within the warranty period, must obtain a return merchandise number (RMA), and must deliver the Product to Sonance shipping
prepaid during the warranty period, together with the original sales receipt, or invoice or other satisfactory proof of purchase.
3
VPXT6
Tweeter 1”(25mm)polyurethanedome,Ferrouidcooled,
inacousticbackchamber
Woofer 61/2”(165mm)injection-moldedpolypropylene/
graphitecone,withintegralSantoprene
™surround
FrequencyResponse 45Hz-20kHz±3dB
Impedance 8ohmsnominal;6ohmsminimum
PowerHandling 5wattsminimum;125wattsmaximum
Sensitivity 89dBSPL(2.83V/1meter)
Environmental ConformstoMilitaryStandard810Gforhumidity,
saltspray,temperature&UV,IP-66waterproofrating
EnvironmentTemp -30º-175ºF(-34ºC-79ºC)
SpeakerDepth 21/2”(64mm)
Dimensions 83/8”x121/4”(213mmx311mm)
Cut-OutDimensions 615/16”x103/4”(176mmx273mm)
GrilleMaterial Powder-coatedstainlesssteel
ShippingWeight 12lbs(5.4kg)pair
VPXT6R
Tweeter 1” (25mm) polyurethane dome,
Ferrouidcooled,inacousticbackchamber
Woofer 61/2”(165mm)injection-moldedpolypropylene/
graphitecone,withintegralSantoprene
™surround
FrequencyResponse 45Hz-20kHz±3dB
Impedance 8ohmsnominal;6ohmsminimum
PowerHandling 5wattsminimum;125wattsmaximum
Sensitivity 89dBSPL(2.83V/1meter)
Environmental ConformstoMilitaryStandard810Gforhumidity,
saltspray,temperature&UV,IP-66waterproofrating
EnvironmentTemp -30º-175ºF(-34ºC-79ºC)
SpeakerDepth 31/2”(89mm)
Dimensions 93/4”(248mm)
Cut-OutDimensions 81/4”(210mm)
GrilleMaterial Powder-coatedstainlesssteel
ShippingWeight 12lbs(5.4kg)pair
VPXT6R SST
Tweeter 1”(25mm)polyurethanedome,dualvoicecoil,
Ferrouidcooled,inacousticbackchamber
Woofer 61/2”(165mm)injection-moldedpolypropylene/
graphitecone,withintegralSantoprene™surround
FrequencyResponse 45Hz-20kHz±3dB
Impedance 8ohmsnominal;6ohmsminimum
PowerHandling 5wattsminimum;125wattsmaximum
Sensitivity 89dBSPL(2.83V/1meter)
Environmental ConformstoMilitaryStandard810Gforhumidity,
saltspray,temperature&UV,IP-66waterproofrating
EnvironmentTemp
SpeakerDepth
Dimensions
Cut-OutDimensions
GrilleMaterial
ShippingWeight
VPXT8R
Tweeter
Woofer
-30º-175ºF(-34ºC-79ºC)
31/2”(89mm)
93/4”(248mm)
81/4”(210mm)
Powder-coatedstainlesssteel
6. lbs( kg)each7 3.04
1”(25mm)polyurethanedome,Ferrouidcooled,
inacousticbackchamber
8”(205mm)injection-moldedpolypropylene/
graphitecone,withintegralSantoprene™surround
FrequencyResponse 40Hz-20kHz±3dB
Impedance 8ohmsnominal;6ohmsminimum
PowerHandling 5wattsminimum;130wattsmaximum
Sensitivity 90dBSPL(2.83V/1meter)
Environmental ConformstoMilitaryStandard810Gforhumidity,
saltspray,temperature&UV,IP-66waterproofrating
EnvironmentTemp -30º-175ºF(-34ºC-79ºC)
SpeakerDepth 33/4”(95mm)
Dimensions 115/8”(295mm)
Cut-OutDimensions 101/8”(257mm)
GrilleMaterial Powder-coatedstainlesssteel
ShippingWeight 14lbs(6.35kg)pair
Tuotetiedot
| Merkki: | Sonance |
| Kategoria: | Kaiutin |
| Malli: | Visual Performance Extreme VPXT8R |
Tarvitsetko apua?
Jos tarvitset apua merkille Sonance Visual Performance Extreme VPXT8R esitä kysymys alla ja muut käyttäjät vastaavat sinulle
Kaiutin Sonance Käyttöohjeet
27 Helmikuuta 2025
27 Helmikuuta 2025
27 Helmikuuta 2025
27 Helmikuuta 2025
8 Tammikuuta 2025
8 Tammikuuta 2025
8 Tammikuuta 2025
8 Tammikuuta 2025
31 Joulukuuta 2025
26 Lokakuuta 2024
Kaiutin Käyttöohjeet
- Kaiutin Aiwa
- Kaiutin Bauhn
- Kaiutin Insignia
- Kaiutin LG
- Kaiutin Power Dynamics
- Kaiutin Vonyx
- Kaiutin Grundig
- Kaiutin Sharp
- Kaiutin Hama
- Kaiutin Vorago
- Kaiutin Jensen
- Kaiutin AOC
- Kaiutin Philips
- Kaiutin Avantree
- Kaiutin IKEA
- Kaiutin Edifier
- Kaiutin Reflexion
- Kaiutin Meridian
- Kaiutin Teufel
- Kaiutin Fender
- Kaiutin Axton
- Kaiutin Kogan
- Kaiutin Soundcore
- Kaiutin Turbosound
- Kaiutin Sony
- Kaiutin GoGEN
- Kaiutin Pro-Ject
- Kaiutin Yamaha
- Kaiutin Xiaomi
- Kaiutin Morel
- Kaiutin Trust
- Kaiutin Axis
- Kaiutin Extron
- Kaiutin Media-tech
- Kaiutin Pioneer
- Kaiutin EarFun
- Kaiutin Ecler
- Kaiutin Audac
- Kaiutin Woxter
- Kaiutin KEF
- Kaiutin Audio-Technica
- Kaiutin Toa
- Kaiutin Metra
- Kaiutin Pyle
- Kaiutin Sencor
- Kaiutin Bose
- Kaiutin Orava
- Kaiutin Kanto
- Kaiutin Wet Sounds
- Kaiutin JVC
- Kaiutin Sharper Image
- Kaiutin Kicker
- Kaiutin Auna
- Kaiutin OSD Audio
- Kaiutin Fenton
- Kaiutin Bluesound
- Kaiutin Hertz
- Kaiutin Kenwood
- Kaiutin MB Quart
- Kaiutin Bigben
- Kaiutin Aplic
- Kaiutin CSL
- Kaiutin Bearware
- Kaiutin NUVO
- Kaiutin Infiniton
- Kaiutin Sennheiser
- Kaiutin Roku
- Kaiutin GPO
- Kaiutin Advance
- Kaiutin AXESS
- Kaiutin Artsound
- Kaiutin Denon
- Kaiutin Ion
- Kaiutin Elac
- Kaiutin Marshall
- Kaiutin Yorkville
- Kaiutin V-Tac
- Kaiutin MyDJ
- Kaiutin Braun
- Kaiutin Valcom
- Kaiutin Celly
- Kaiutin JBL
- Kaiutin Infinity
- Kaiutin Majority
- Kaiutin Helix
- Kaiutin Genesis
- Kaiutin Logilink
- Kaiutin Klipsch
- Kaiutin Worx
- Kaiutin Muse
- Kaiutin Ground Zero
- Kaiutin Karma
- Kaiutin Glemm
- Kaiutin Prixton
- Kaiutin Match
- Kaiutin Speed-Link
- Kaiutin Renkforce
- Kaiutin Definitive Technology
- Kaiutin QSC
- Kaiutin WHD
- Kaiutin Q Acoustics
- Kaiutin Karcher
- Kaiutin GoldenEar
- Kaiutin Pyramid
- Kaiutin FoneStar
- Kaiutin Apogee
- Kaiutin Trevi
- Kaiutin Monitor Audio
- Kaiutin Peavey
- Kaiutin Canton
- Kaiutin Fresh N Rebel
- Kaiutin Sven
- Kaiutin Craftsman
- Kaiutin Energy Sistem
- Kaiutin PSB
- Kaiutin Vizio
- Kaiutin Polk
- Kaiutin ESX
- Kaiutin Omnitronic
- Kaiutin Crestron
- Kaiutin Russound
- Kaiutin MEE Audio
- Kaiutin Monacor
- Kaiutin ModeCom
- Kaiutin Hercules
- Kaiutin Black Hydra
- Kaiutin Electro-Voice
- Kaiutin Proscan
- Kaiutin Wharfedale
- Kaiutin Monster
- Kaiutin Boss
- Kaiutin Tannoy
- Kaiutin JL Audio
- Kaiutin Atlas Sound
- Kaiutin Davis
- Kaiutin Mount-It!
- Kaiutin GMB Audio
- Kaiutin Mad Dog
- Kaiutin Ashly
- Kaiutin Origin Acoustics
- Kaiutin VTech
- Kaiutin Samson
- Kaiutin Memphis Audio
- Kaiutin Focal
- Kaiutin Alpine
- Kaiutin Boompods
- Kaiutin Kramer
- Kaiutin Genelec
- Kaiutin Bazooka
- Kaiutin KRK
- Kaiutin Lamax
- Kaiutin NGS
- Kaiutin Aiaiai
- Kaiutin RCF
- Kaiutin SVS
- Kaiutin N-Gear
- Kaiutin Vimar
- Kaiutin Phoenix Gold
- Kaiutin Aconatic
- Kaiutin Bogen
- Kaiutin Atlas
- Kaiutin PowerBass
- Kaiutin Manta
- Kaiutin Trendnet
- Kaiutin Prime3
- Kaiutin Duronic
- Kaiutin Harman Kardon
- Kaiutin Yamazen
- Kaiutin Lexibook
- Kaiutin Ibiza Sound
- Kaiutin Creative
- Kaiutin REL Acoustics
- Kaiutin Savio
- Kaiutin House Of Marley
- Kaiutin Klark Teknik
- Kaiutin Phonic
- Kaiutin Crosley
- Kaiutin Imperial
- Kaiutin BlueAnt
- Kaiutin Lexon
- Kaiutin Apart
- Kaiutin Magnat
- Kaiutin Hifonics
- Kaiutin Boston Acoustics
- Kaiutin Crest Audio
- Kaiutin Devialet
- Kaiutin AudioSource
- Kaiutin Taga Harmony
- Kaiutin SoundTube
- Kaiutin James
- Kaiutin Ruark Audio
- Kaiutin MB
- Kaiutin Antelope
- Kaiutin Lenco
- Kaiutin M-Audio
- Kaiutin Heco
- Kaiutin SureFire
- Kaiutin Dali
- Kaiutin Akai
- Kaiutin Metronic
- Kaiutin Berker
- Kaiutin LD Systems
- Kaiutin Xcellon
- Kaiutin Denon DJ
- Kaiutin Nikkei
- Kaiutin HK Audio
- Kaiutin Eve Audio
- Kaiutin Delvcam
- Kaiutin Grimm Audio
- Kaiutin Elbe
- Kaiutin DAP Audio
- Kaiutin Deaf Bonce
- Kaiutin Defender
- Kaiutin Adam
- Kaiutin Cerwin-Vega
- Kaiutin Ikegami
- Kaiutin Revel
- Kaiutin New One
- Kaiutin Mission
- Kaiutin Alto
- Kaiutin Califone
- Kaiutin Martin Logan
- Kaiutin Tangent
- Kaiutin Dynaudio
- Kaiutin Proel
- Kaiutin Mackie
- Kaiutin Bowers Wilkins
- Kaiutin Audibax
- Kaiutin PreSonus
- Kaiutin Dual
- Kaiutin Sonus Faber
- Kaiutin Magnavox
- Kaiutin OWI
- Kaiutin Fusion
- Kaiutin Titanwolf
- Kaiutin Weather X
- Kaiutin Krüger And Matz
- Kaiutin Indiana Line
- Kaiutin Blue Tees
- Kaiutin BASSBOSS
- Kaiutin Exagerate
- Kaiutin Ikarao
- Kaiutin FBT
- Kaiutin Transparent
- Kaiutin IHome
- Kaiutin Andover
- Kaiutin ILive
- Kaiutin Moonki
- Kaiutin Urban Revolt
- Kaiutin Audison
- Kaiutin Boynq
- Kaiutin Clarity
- Kaiutin VIETA PRO
- Kaiutin Potter
- Kaiutin Sonoro
- Kaiutin Nubert
- Kaiutin Amphion
- Kaiutin Naxa
- Kaiutin Induction Dynamics
- Kaiutin Paradigm
- Kaiutin Cyber Acoustics
- Kaiutin Audio Pro
- Kaiutin IPort
- Kaiutin ETON
- Kaiutin Ultimate Ears
- Kaiutin NEAR
- Kaiutin Irradio
- Kaiutin Rockustics
- Kaiutin Louroe Electronics
- Kaiutin Kalley
- Kaiutin MOOOV
- Kaiutin Elipson
- Kaiutin SOUNDBOKS
- Kaiutin Streetz
Viimeisimmät Kaiutin Käyttöohjeet
8 Huhtikuuta 2025
8 Huhtikuuta 2025
8 Huhtikuuta 2025
7 Huhtikuuta 2025
7 Huhtikuuta 2025
7 Huhtikuuta 2025
5 Huhtikuuta 2025
3 Huhtikuuta 2025
3 Huhtikuuta 2025
3 Huhtikuuta 2025
